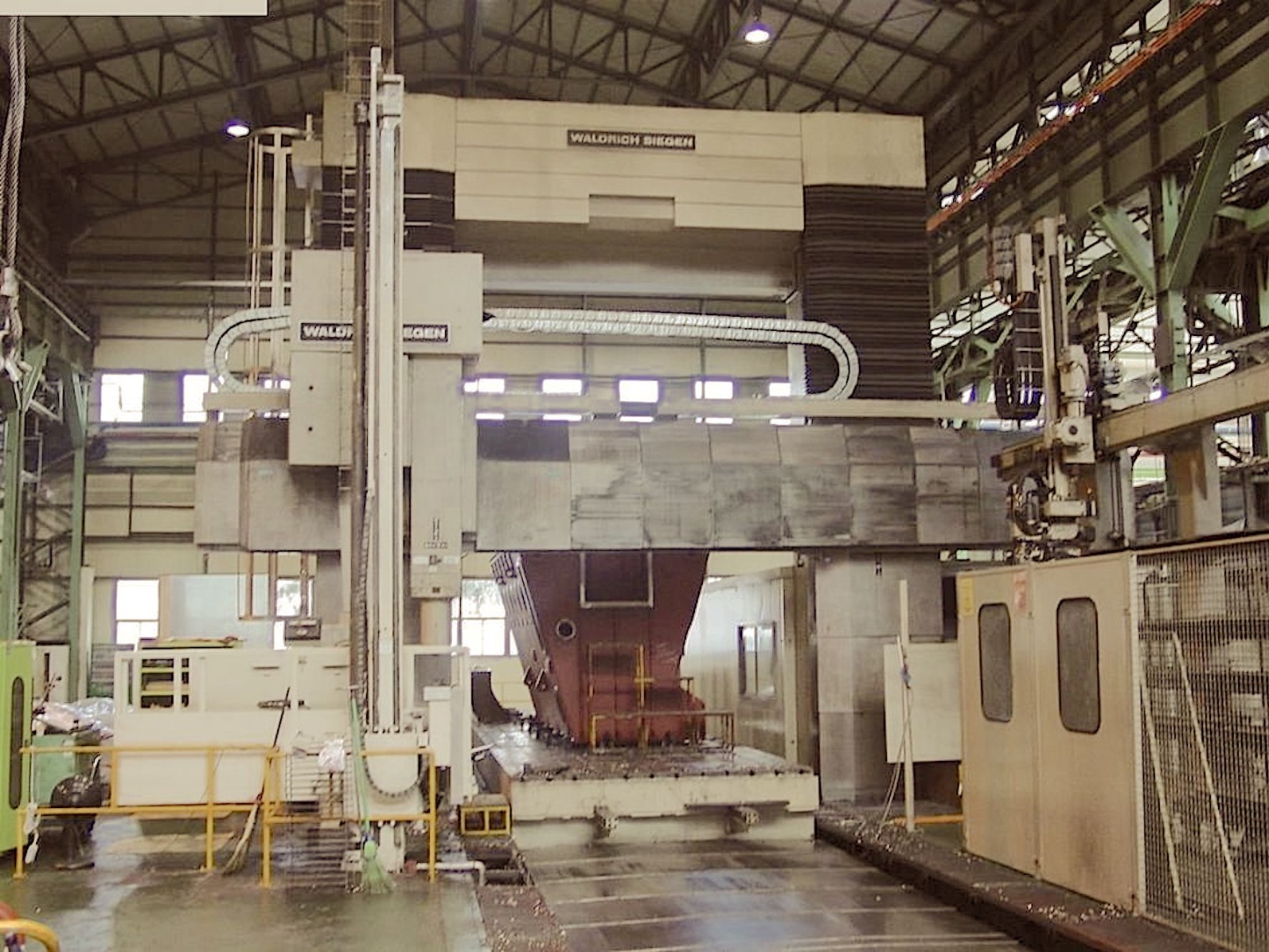

WALDRICH SIEGEN PMC 4000 AT-F17
CNC SIEMENS 880. Hydrostatic table.

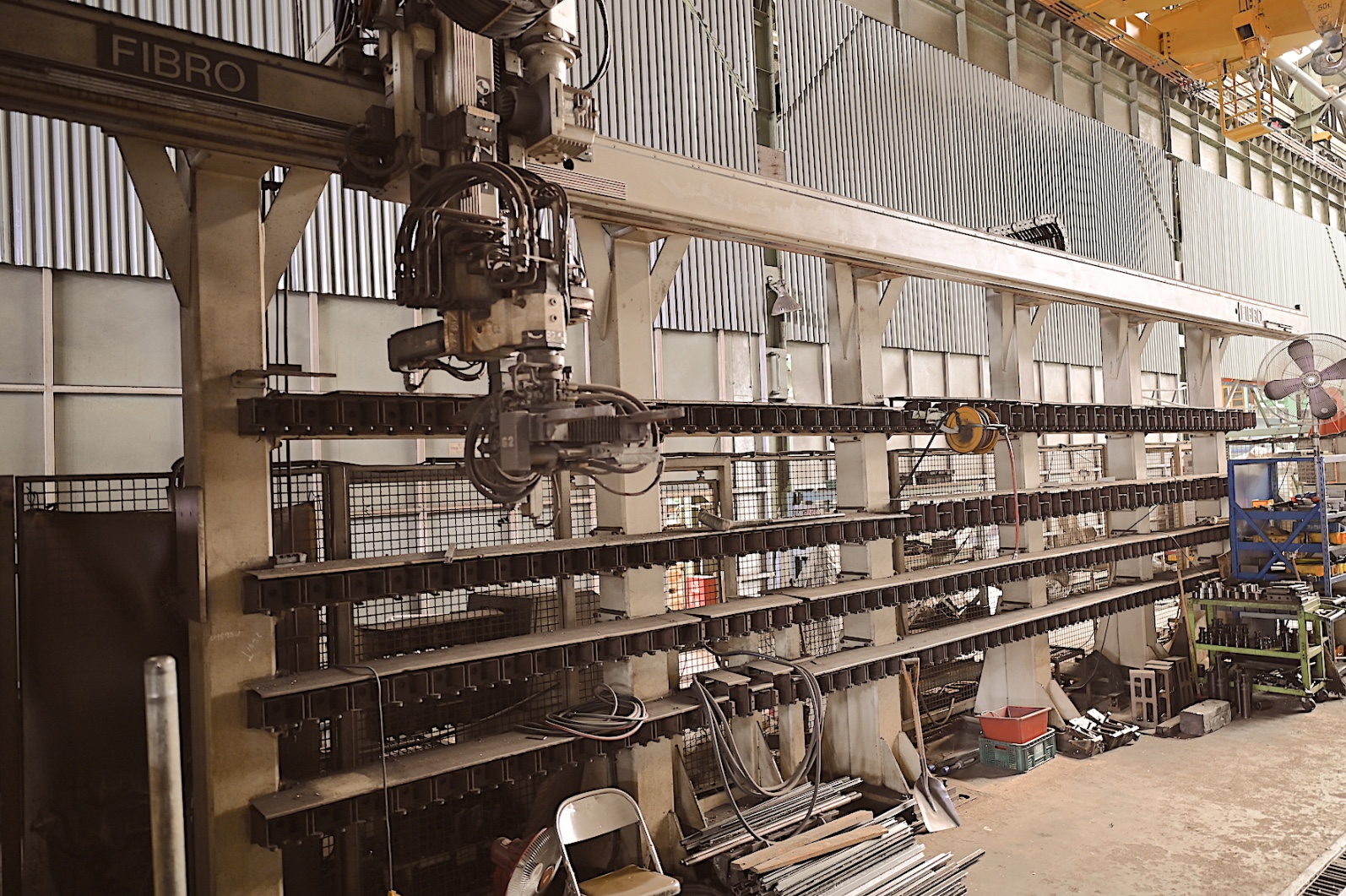

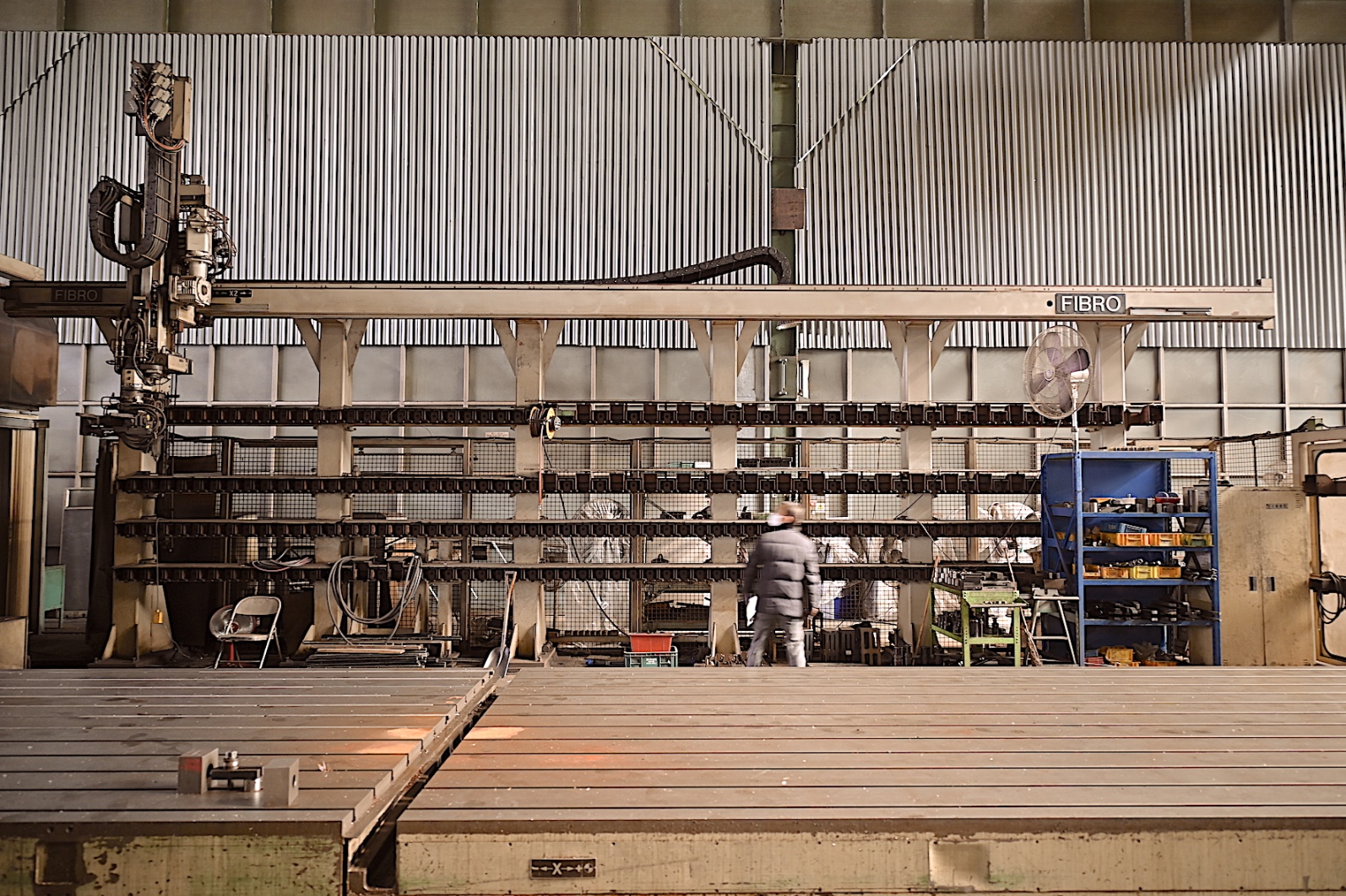

ISO 50/60, ATC 400.
AAC 12.
Built 1994, Modernized 2003.

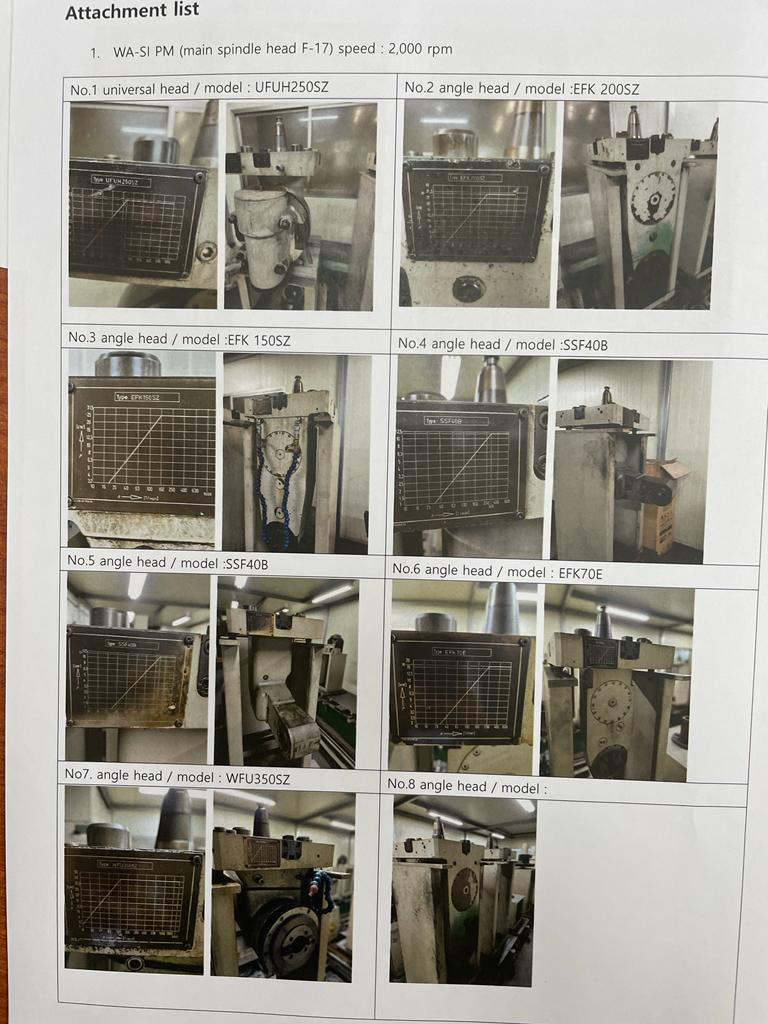

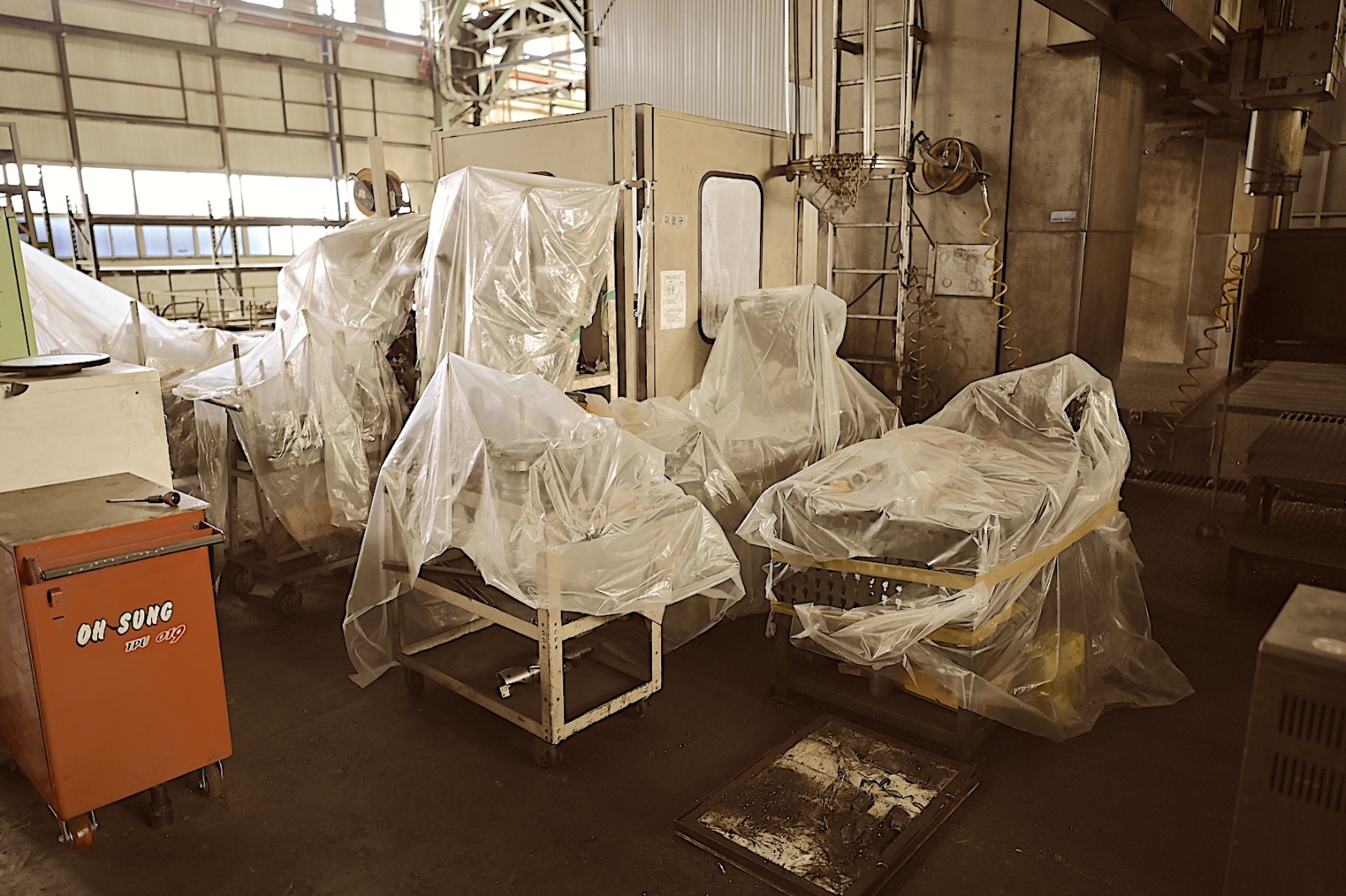

With 12 pcs Automatic Tool Clamping Heads

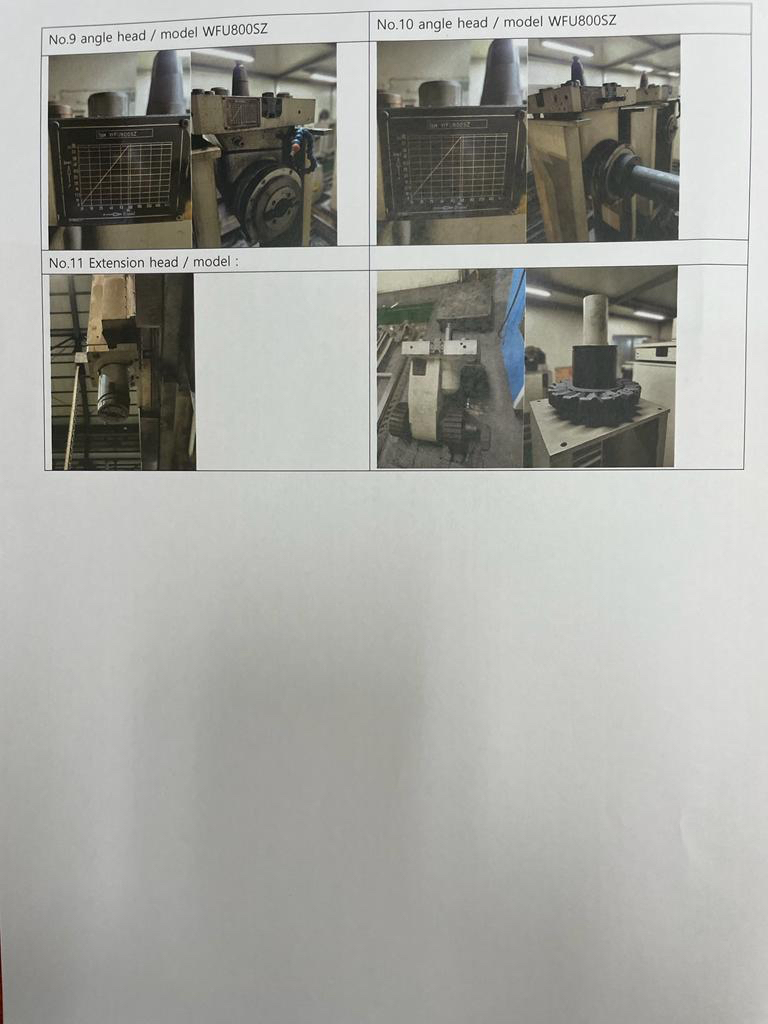

10 pcs Horisontal Heads 4 x 90°, Depth 150 - 800 mm, Overhang up to 450 mm
2 pcs Vertical Head, Depth 300 and 600 mm,
Universal Head, Horisontal 4 x 90°, Vertical infinitely variable, Manual Tool Clamping.
ISO 50/60, ATC 400.
AAC 12.
Built 1994, Modernized 2003.
With 12 pcs Automatic Tool Clamping Heads
10 pcs Horisontal Heads 4 x 90°, Depth 150 - 800 mm, Overhang up to 450 mm
2 pcs Vertical Head, Depth 300 and 600 mm,
Universal Head, Horisontal 4 x 90°, Vertical infinitely variable, Manual Tool Clamping.
| Table longitudinal travel (x) | 14.000 mm |
|---|---|
| Head transversal travel (y) | 6.500 mm |
| Ram vertical travel (z) | 1.000 mm |
| Cross rail vertical travel (w) | 3.250 mm |
| Table size ( 5.800 + 7.000 mm) | 3.000 x 13.000 mm |
| Table load | 50 ton |
| Passage between columns | 4.150 mm |
| Max. working height | 4.500 mm |
| Spindle speeds, steeples | 5 - 2.000 Rpm |
| Spindle torque | 7.600 Nm |
| Spindle motor power | 75 kW |
