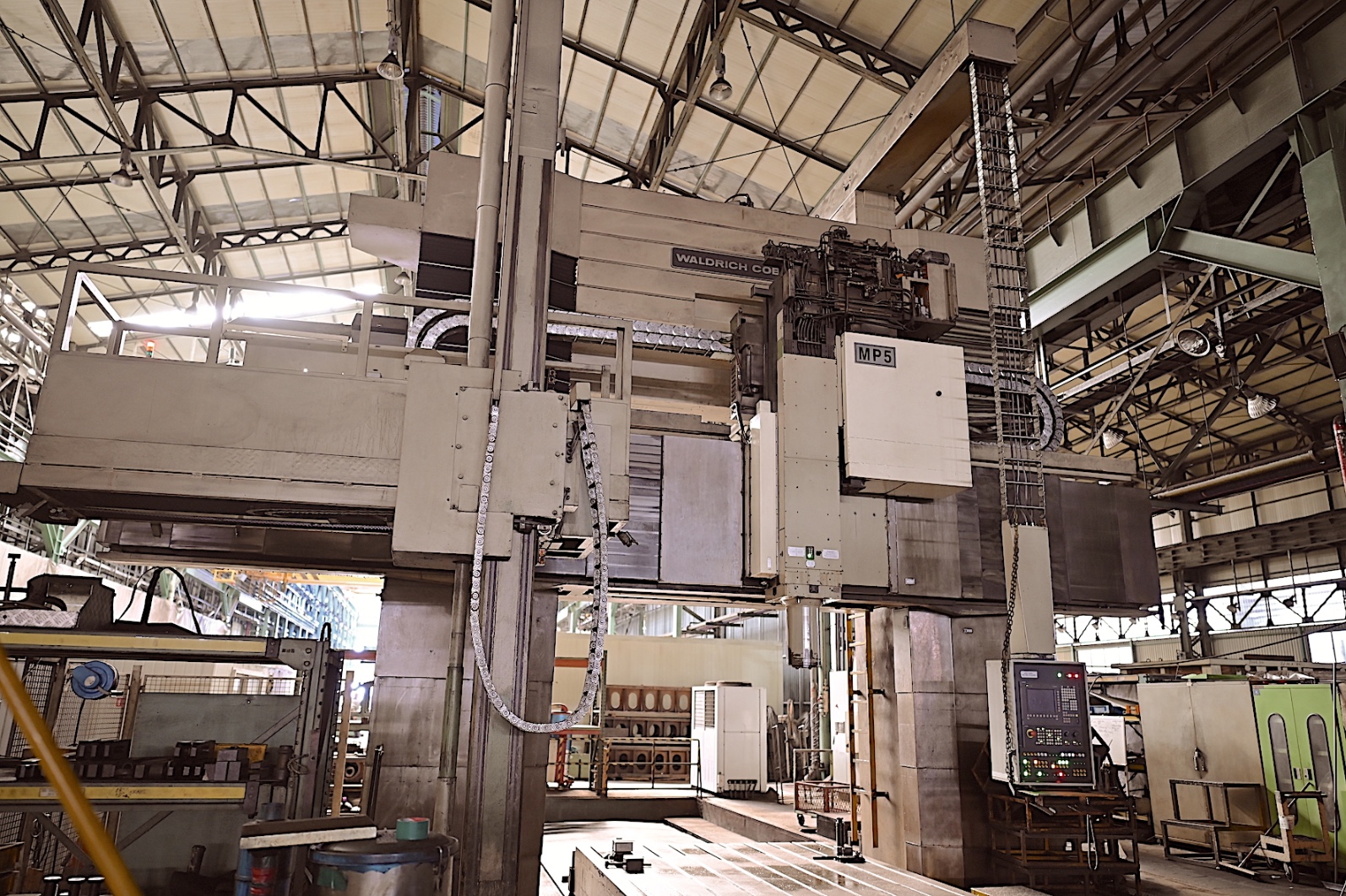

WALDRICH COBURG FP 250NC/7M,
CNC SIEMENS 840D SL. Built 1991, Modernized 2003. Hydrostatic table.
2 pst Pallets 2.500 x 7.000 mm.
ISO 50/60, ATC 120.
AAC 15.
Built 1991, Modernized 2003.
With 11 pcs Automatic Tool Clamping Heads:
10 pcs Horisontal Heads 4 x 90°, Depth 150 - 800 mm, Overhang up to 500 mm
1 pcs Vertical Head, Depth 300 mm,
Universal Head, Horisontal 4 x 90°, Vertical infinitely variable, Manual Tool Clamping.
2 pst Pallets 2.500 x 7.000 mm.
ISO 50/60, ATC 120.
AAC 15.
Built 1991, Modernized 2003.
With 11 pcs Automatic Tool Clamping Heads:
10 pcs Horisontal Heads 4 x 90°, Depth 150 - 800 mm, Overhang up to 500 mm
1 pcs Vertical Head, Depth 300 mm,
Universal Head, Horisontal 4 x 90°, Vertical infinitely variable, Manual Tool Clamping.
| Table longitudinal travel (x) | 7.500 mm |
|---|---|
| Head transversal travel (y) | 5.900 mm |
| Ram vertical travel (z) | 1.000 mm |
| Cross rail vertical travel (w) | 3.000 mm |
| 2 pcs Pallets | 2.500 x 7.000 mm |
| Table load | 40 ton |
| Passage between columns | 3.350 mm |
| Max. working height | 3.500 mm |
| Spindle motor power | 75 kW |
| Feeds of X - axis | 15.000 mm/min |
| Feeds of Y - axis | 10.000 mm/min |
| Feeds of Ram Z - axis, | 6.000 mm/min |
| Machine Length | 17.400 mm |
| Machine Width | 9.330 mm |
| Machine Height | 7.890 mm |
| Machine Weight | 386 Ton |
WALDRICH COBURG FP 250NC/7M Technical Specs
Waldrich Coburg, Specs.pdf
Heads
Heads
