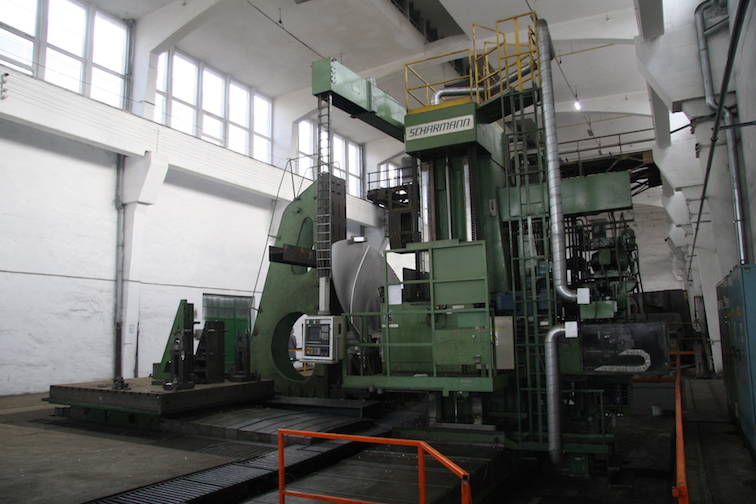

Scharmann Heavycut 3.2 / TDV 5
CNC Siemens 840 C. New: 1980. Modernized with new CNC etc ca 2000.
With Rotary table Scharmann TDV 5, 40 Tons, Angle head.
Chipconveyor for longside X-axis.
Chipconveyor for longside table travel.
With Rotary table Scharmann TDV 5, 40 Tons, Angle head.
Chipconveyor for longside X-axis.
Chipconveyor for longside table travel.
| X Column travel | 8.000 mm |
|---|---|
| Y Headstock vertical travel | 3.200 mm |
| Z Ram spindle stroke | 1.000 mm |
| W spindle stroke | 1.200 mm |
| W+Z | 2.200 mm |
| Spindle diameter | 160 mm |
| Spindle diameter | ISO 50 |
| Spindle speed | 850 rpm |
| Spindle motor | 60 kW |
| Ram square section | 400 x 400 mm |
| Rotary Table size | 3.000 x 3.000 mm |
| Table load | 40 ton |
| C-axes | 360 000° |
| Table travel, V | 3.000 mm |
| 2 pcs Floor plates | 2.170 x 4.700 mm |
