PAMA Speedram 4000 Horizontal Borer
Siemens 840 D sl, Built 2009.
Installed new 2015 ca 10.000 spindle hours.
With 100 Ton and 65 Ton CNC Table.
TW2 50 (50 KW) Two Axis Head.
TS20 144 (20 KW) Angulare Head 2,5° / 144 Positions.
2 pcs Rack 3+1 Heads, Rack for Big Tools, ATC 100.
External - Internal tool cooling system 7,5 - 30 bar.
Installed new 2015 ca 10.000 spindle hours.
With 100 Ton and 65 Ton CNC Table.
TW2 50 (50 KW) Two Axis Head.
TS20 144 (20 KW) Angulare Head 2,5° / 144 Positions.
2 pcs Rack 3+1 Heads, Rack for Big Tools, ATC 100.
External - Internal tool cooling system 7,5 - 30 bar.
Video
| X, Column travel | 15.000 mm |
|---|---|
| Y, Headstock vertical travel | 6.500 mm |
| Z, Ram 520 x 580 mm, stroke | 1.600 mm |
| W, spindle Ø 200 mm stroke | 1.200 mm |
| W+Z | 2.800 mm |
| Spindle taper | ISO 50 DIN 69871/2 AD Big Plus |
| Spindle speed | 1.800 rpm |
| Spindle motor | 100 kW |
| Spindle Torque | 12.880 Nm |
| Automatic tool changer | 100 Tools |
| Feeds all axes | 0,5 - 6.000 mm/ min |
| Rapid traverse X, Y, Z, W axes | 12.000 mm/ min |
| Rotary Table TH 100 | 4.000 x 4.000 mm |
| Table TH 100 load | 100 ton |
| Table TH 100 B-axis | 360 000° |
| Table TH 100 travel, | 2.800 mm |
| Rotary Table TH 65 | 3.000 x 3.000 mm |
| Table TH 65 load | 65 Ton |
| Table TH 65 B-Axis | 360 000° |
| Table TH 65 travel, | 3.000 mm |
| 3 Psc Floor Plates, each | 2.000 x 3.200 mm |
100 Ton Table 4.000 x 4.000 mm, Travel 2.800 mm.
65 Ton Table 3.000 x 3.000 mm, Travel 3.000 mm.
Siemens 840 D sl.
Controll ATC.

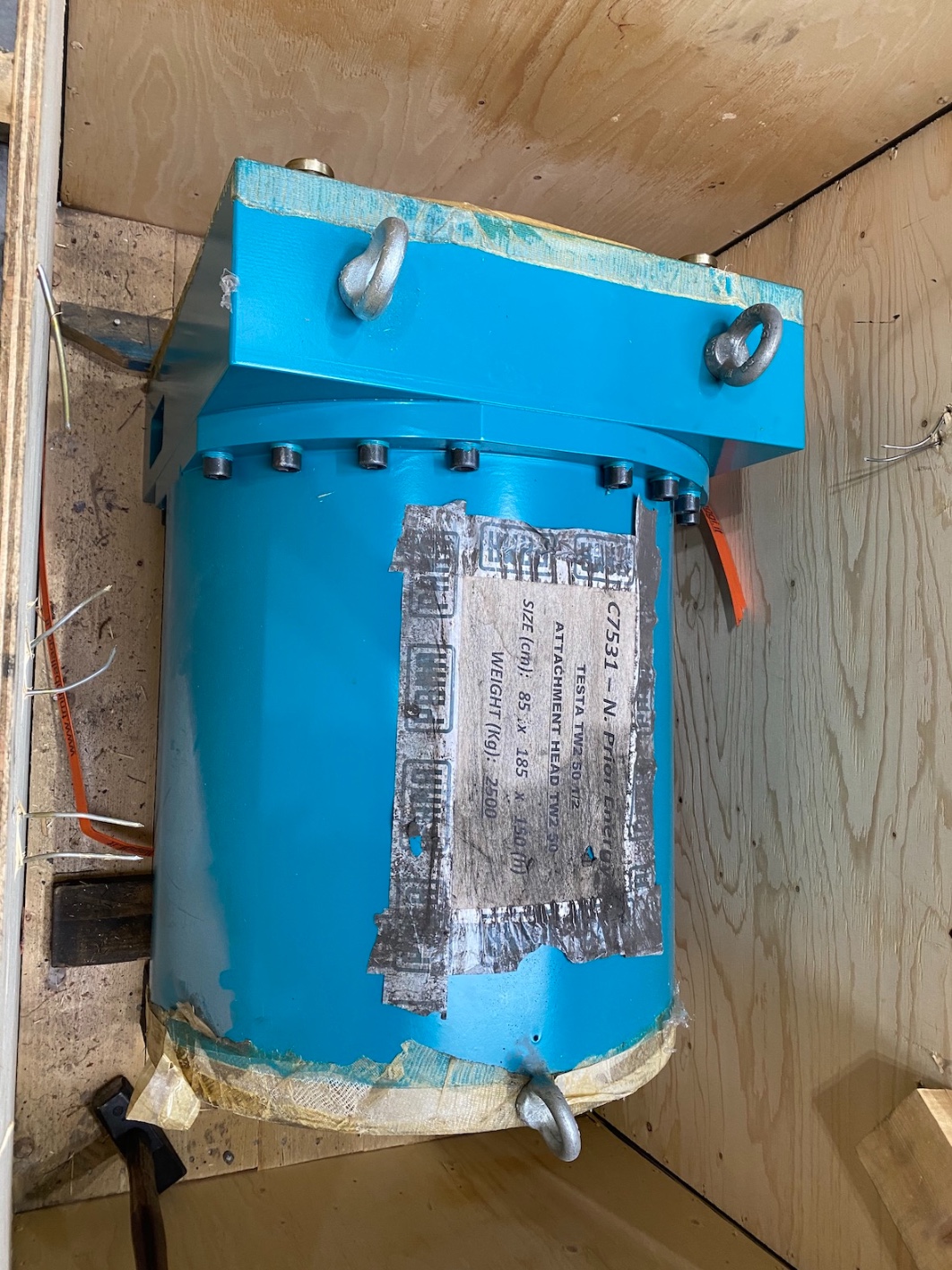

TW2 50 Head.
TS 20 Head
TW2 50 (50 KW) Two Axis Head.
TW2 50 (50 KW) Two Axis Head.
TS20 144 (20 KW) Angulare Head 2,5° / 144 Positions.
TS20 144 (20 KW) Angulare Head 2,5° / 144 Positions.
PAMA Speedram 4000, All Axes
