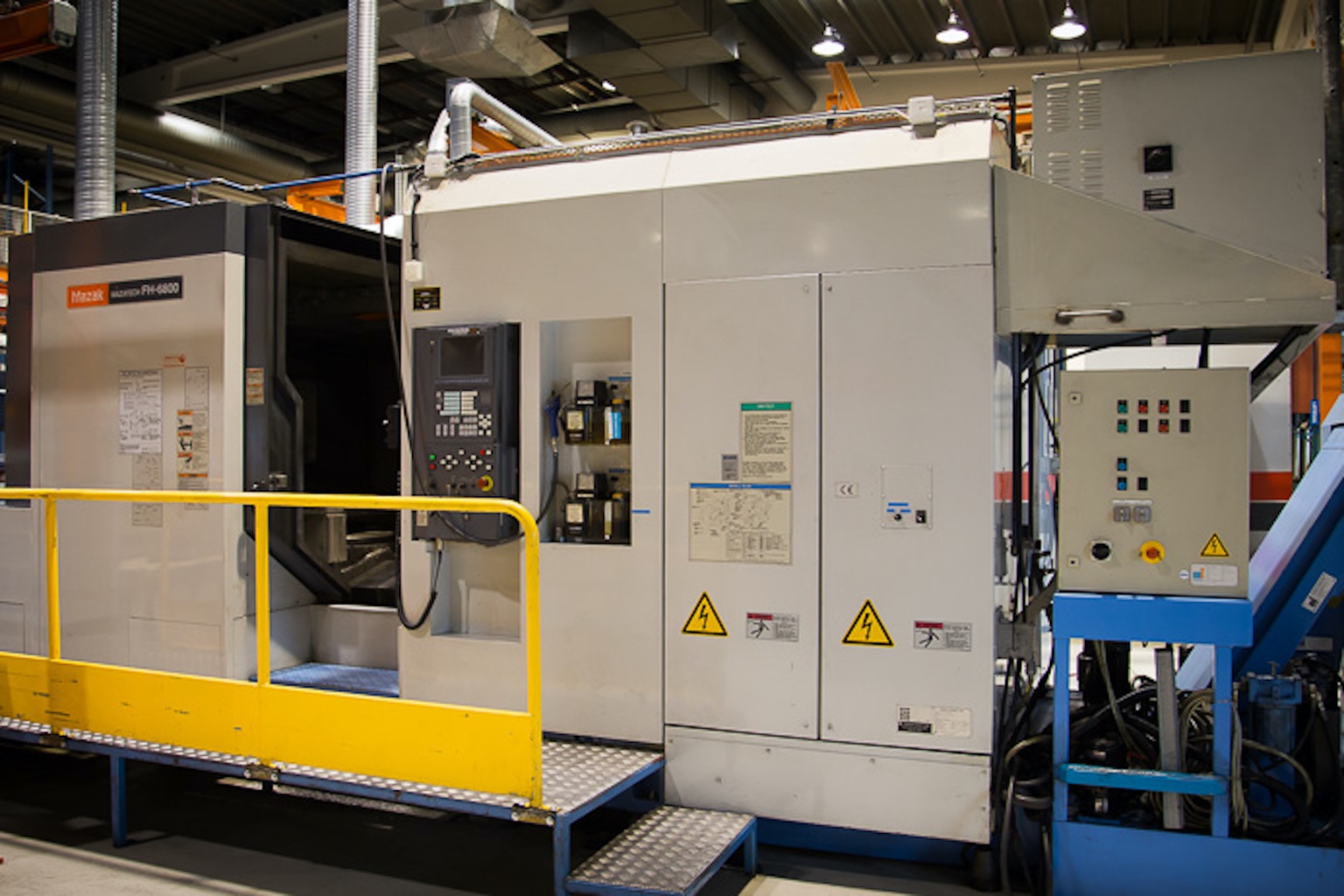

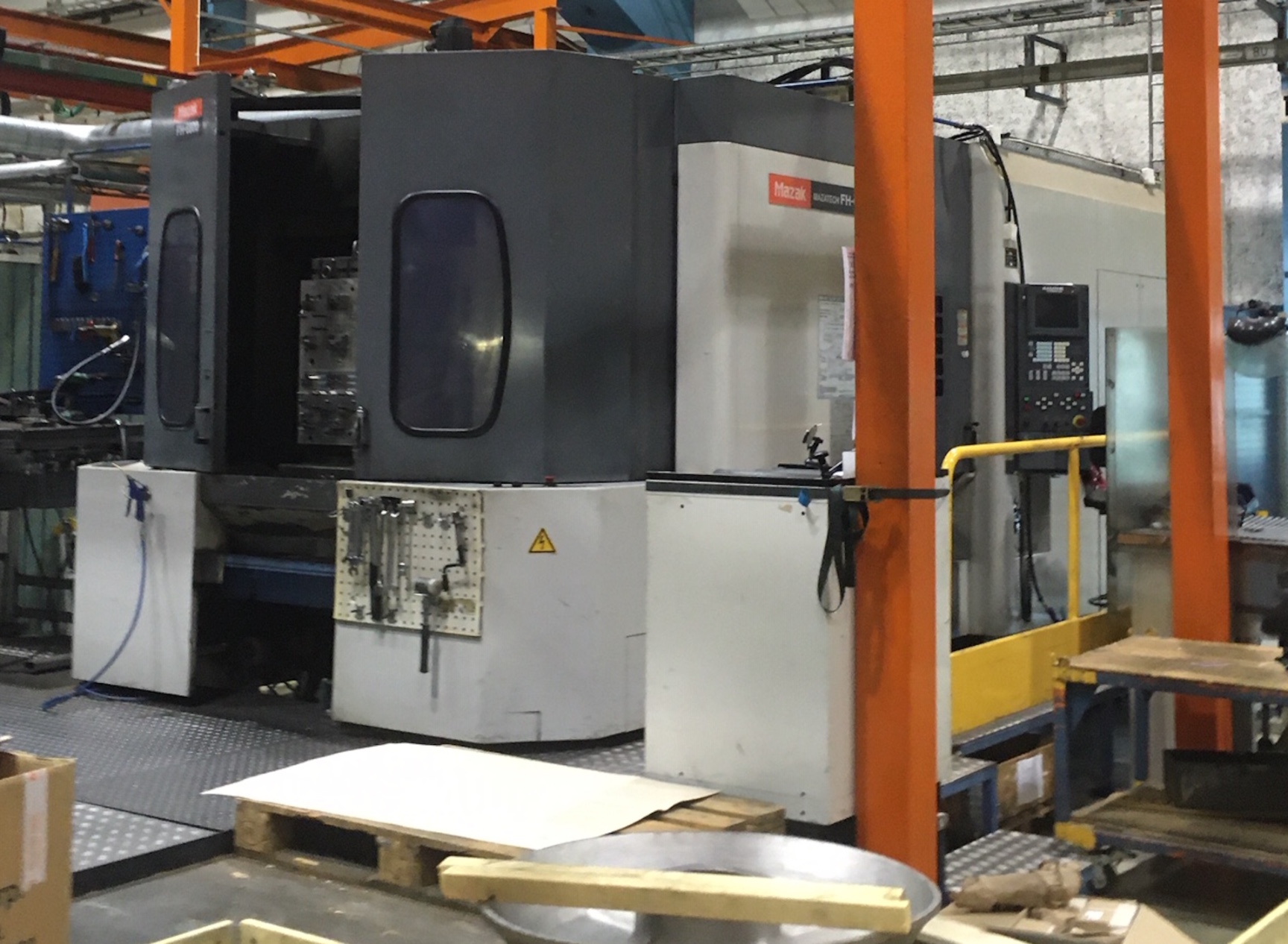

MAZAK FH 6800 Horizontal Machining Center.
4 axes Mazatrol Fusion 640 M,
2 Pallets 630 x 630 mm. ATC 80.
Spindle taper SK 50, ( ISO 50).
Cooling 70 Bar and air blow through spindle.
Renishaw, Maynard Chip Conveyor. New 2004.
2 Pallets 630 x 630 mm. ATC 80.
Spindle taper SK 50, ( ISO 50).
Cooling 70 Bar and air blow through spindle.
Renishaw, Maynard Chip Conveyor. New 2004.
![](/storage/files/AckJifT2ljlVwOmmNe8KzJVyqkUs6OTaeCz9JM0F.jpeg)
2 Pallets size | 630 x 630 mm |
---|---|
X | 1.050 mm |
Y | 900 mm |
Z | 825 mm |
Pallet positions | 360.000° |
Spindle speed | 10.000 rpm |
Spindel motor | 37 kW |
Distance table surface - spindle nose | 100 - 900 mm |
Distance table middle - spindle nose | 150 - 1.030 mm |
Feed ( X/Y/Z) | 40 m / min |
Weigth | 19.700 kg |
