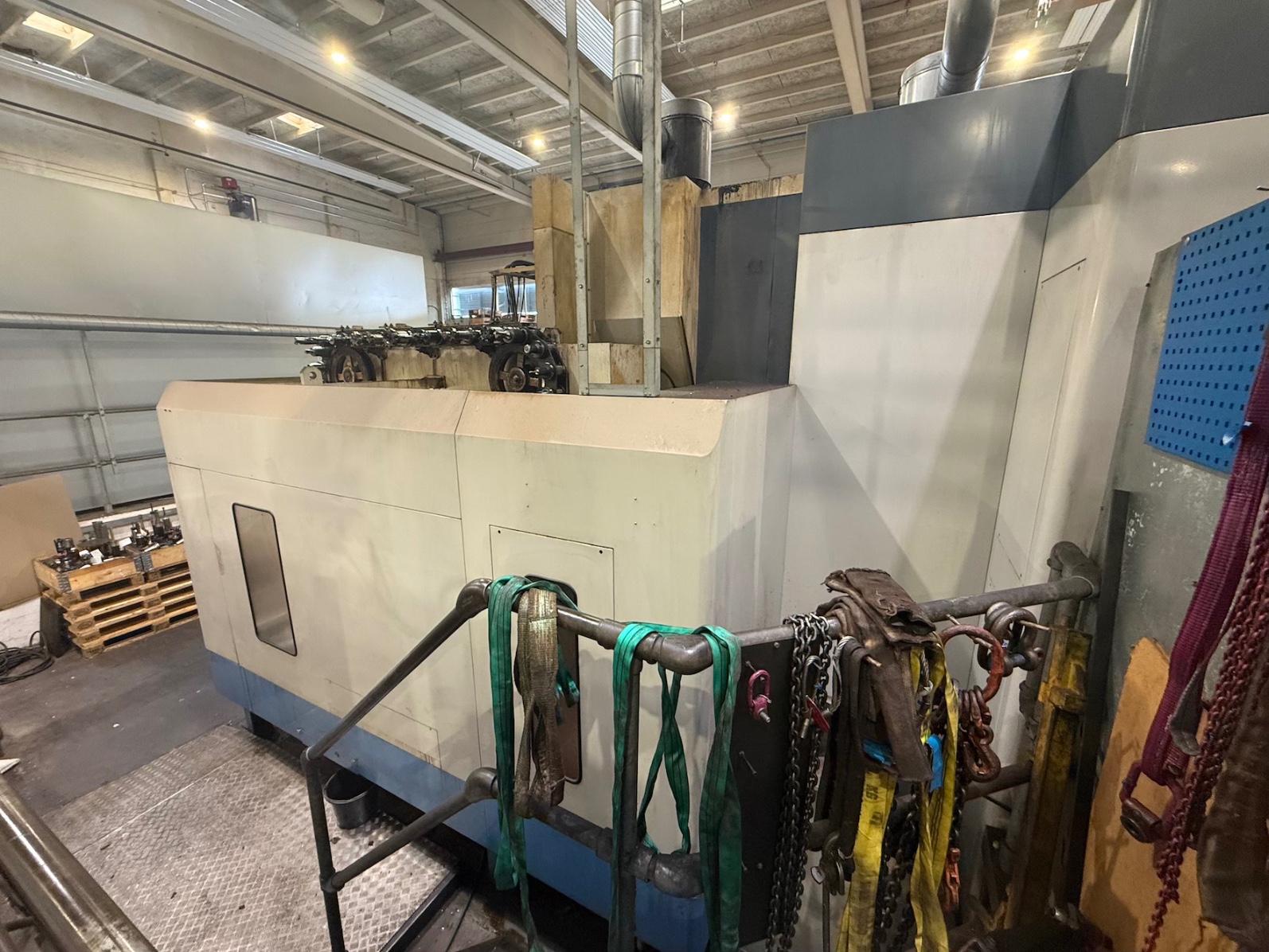

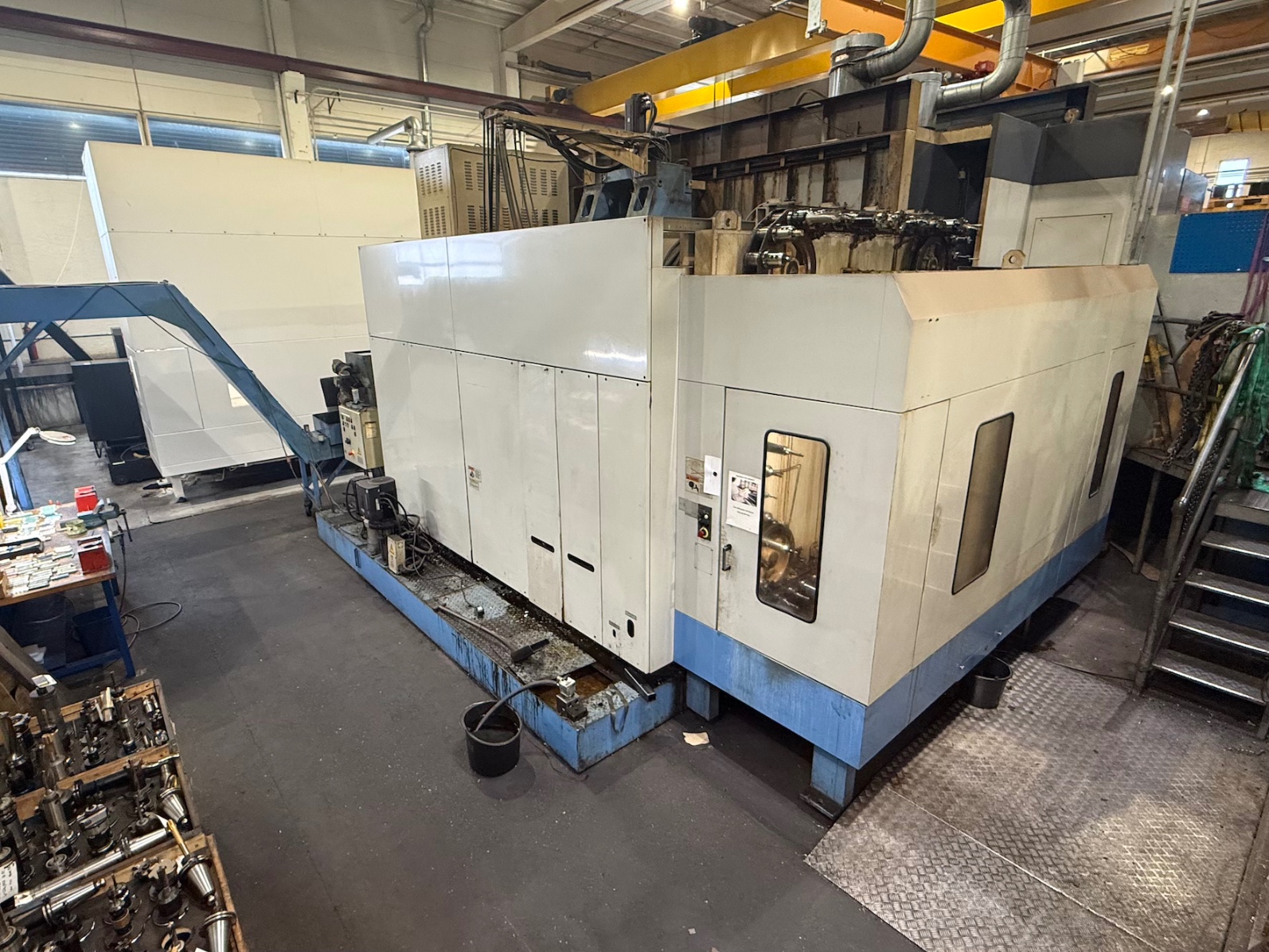

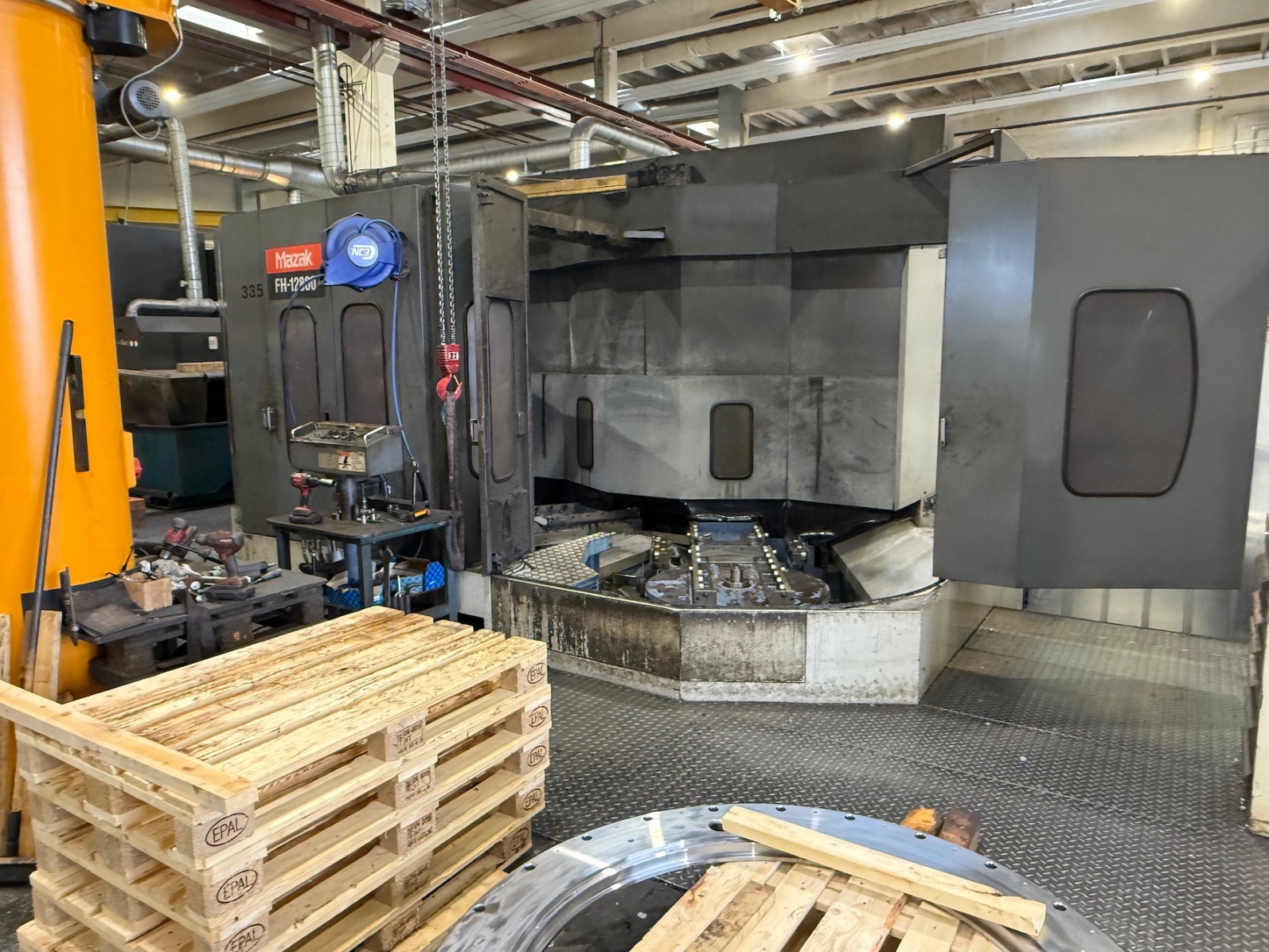

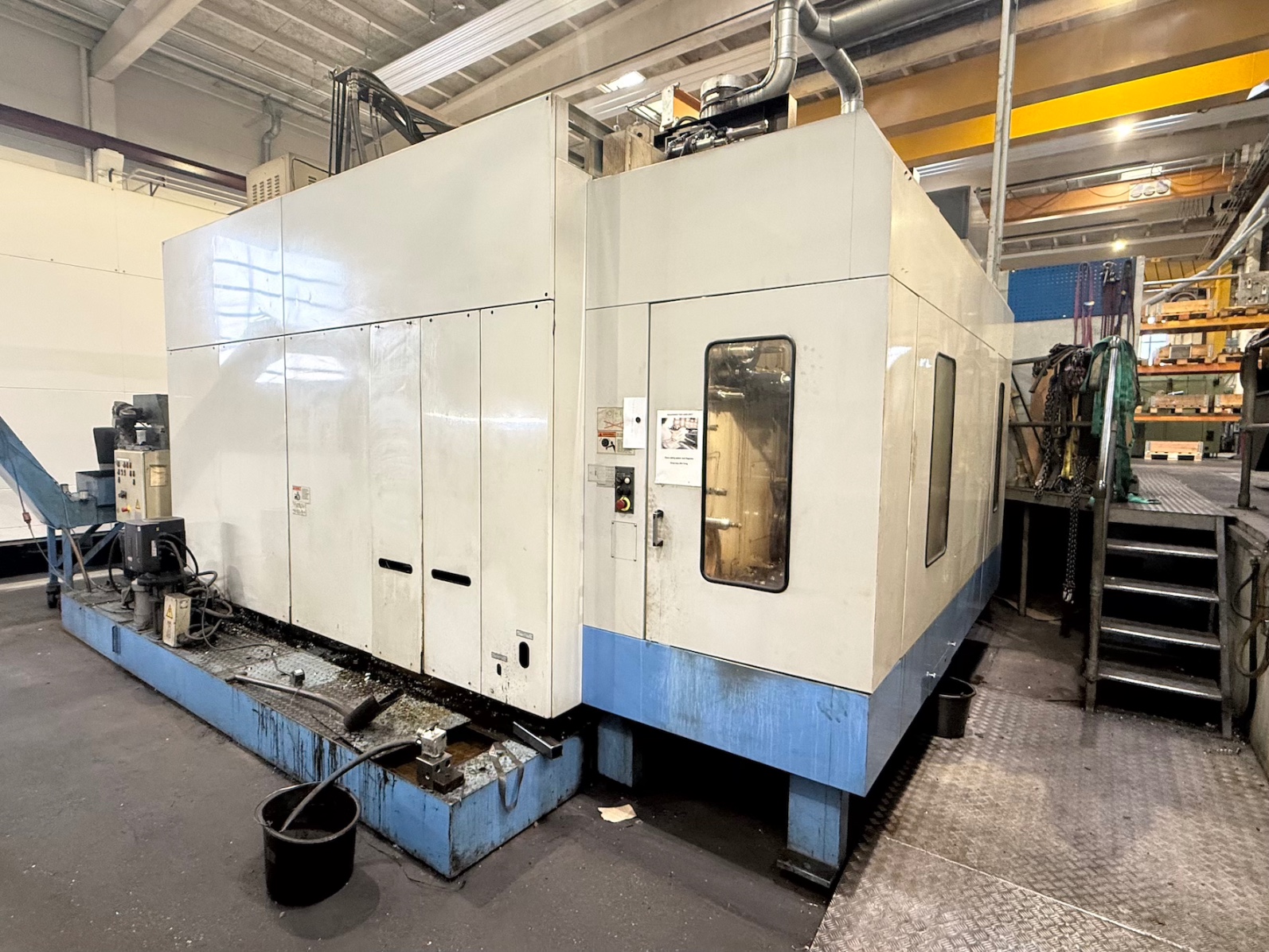

MAZAK FH 12800 Horizontal Machining Center.
4-axis horizontal machining center,

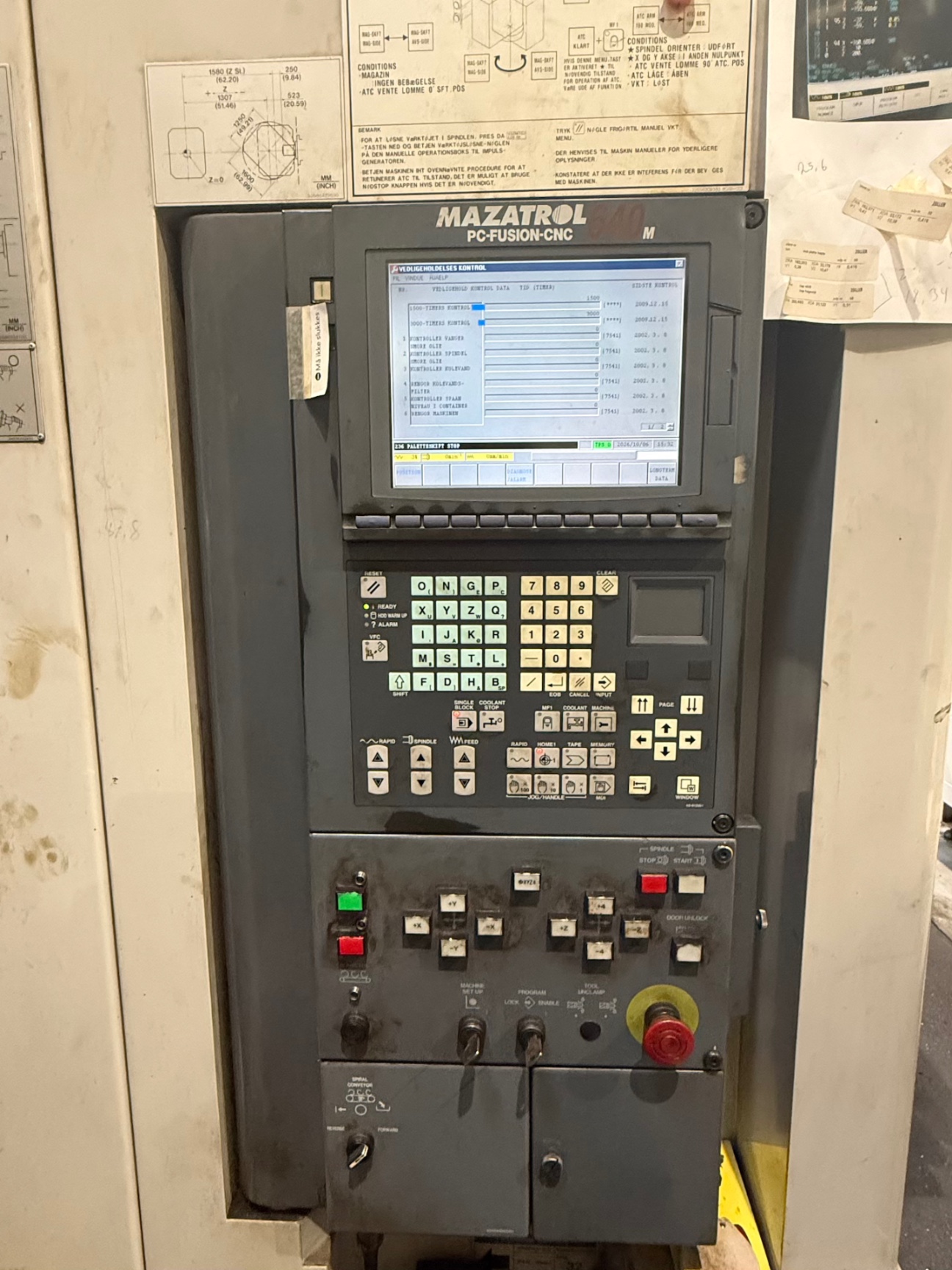

Mazatech FH 12800, with Mazatrol F-640M Dialog control.
Built 2002.
Spindle speed 7000 rpm.

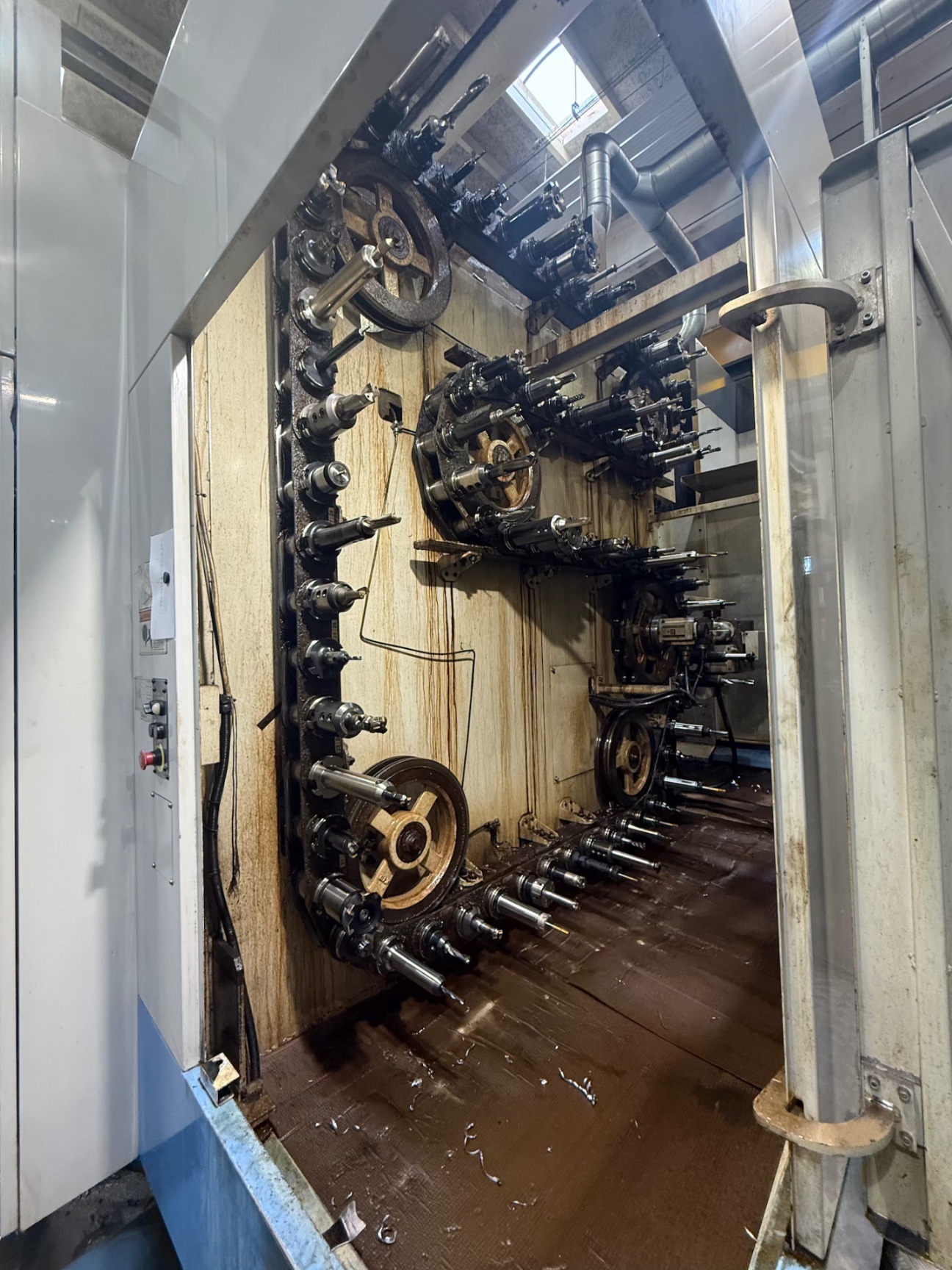

ATC 80.
X= 2.100 mm.
Y=1.560 mm.
Z=1.580 mm.

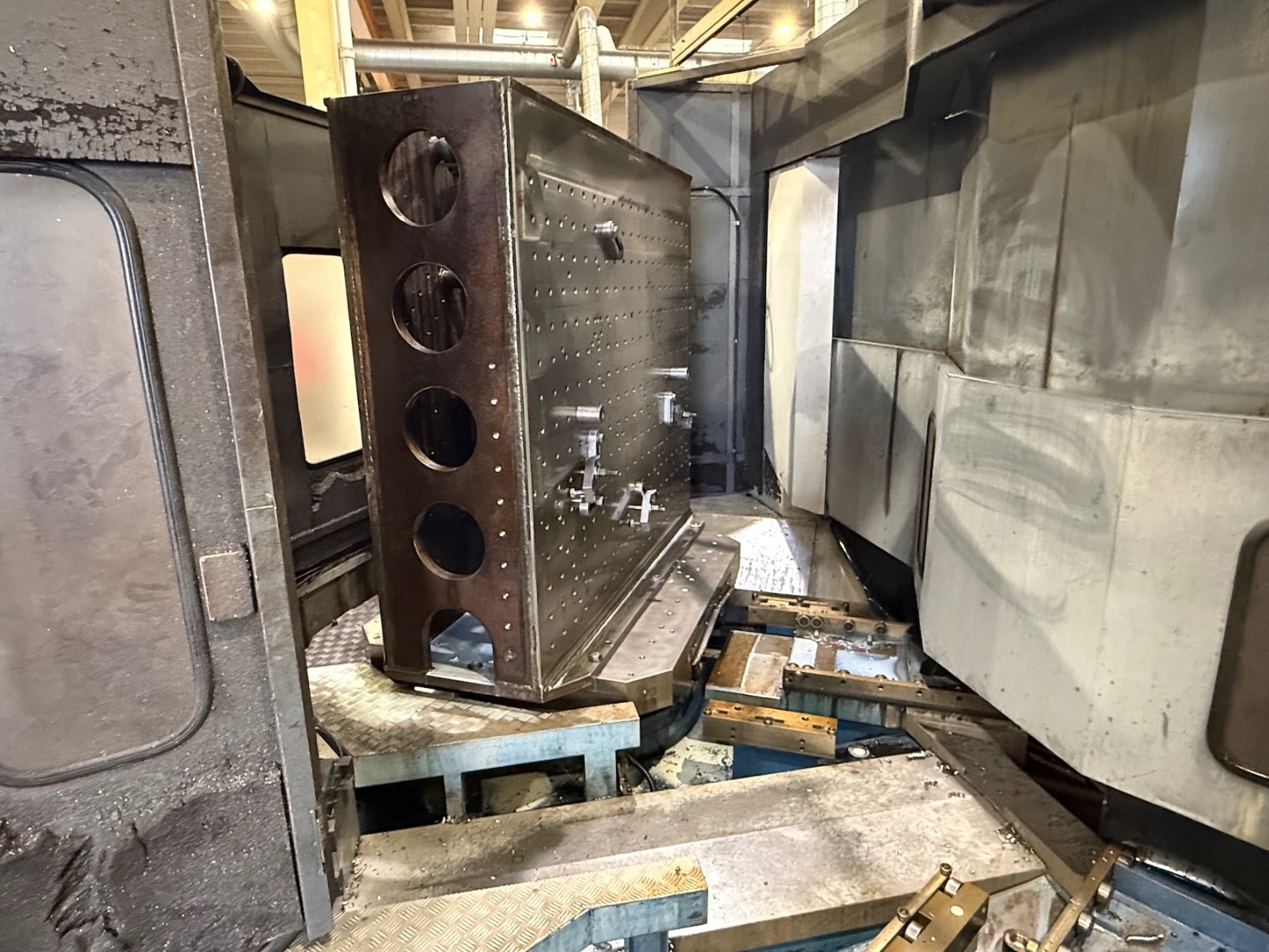

2 Pallets 1.250 x 1.600 mm.
Max workpiece height 1.800 mm.
Max workpiece diameter 2.350 mm.
Max Workpiece weight 5.000 kg.
Mazatech FH 12800, with Mazatrol F-640M Dialog control.
Built 2002.
Spindle speed 7000 rpm.
ATC 80.
X= 2.100 mm.
Y=1.560 mm.
Z=1.580 mm.
2 Pallets 1.250 x 1.600 mm.
Max workpiece height 1.800 mm.
Max workpiece diameter 2.350 mm.
Max Workpiece weight 5.000 kg.
| 2 Pallets size | 1.250 x 1.600 mm |
|---|---|
| X | 2.100 mm |
| Y | 1.560 mm |
| Z | 1.580mm |
| Pallet positions | 360.000° |
| Spindle speed | 7.000 rpm |
| Spindel motor | 37 kW |
