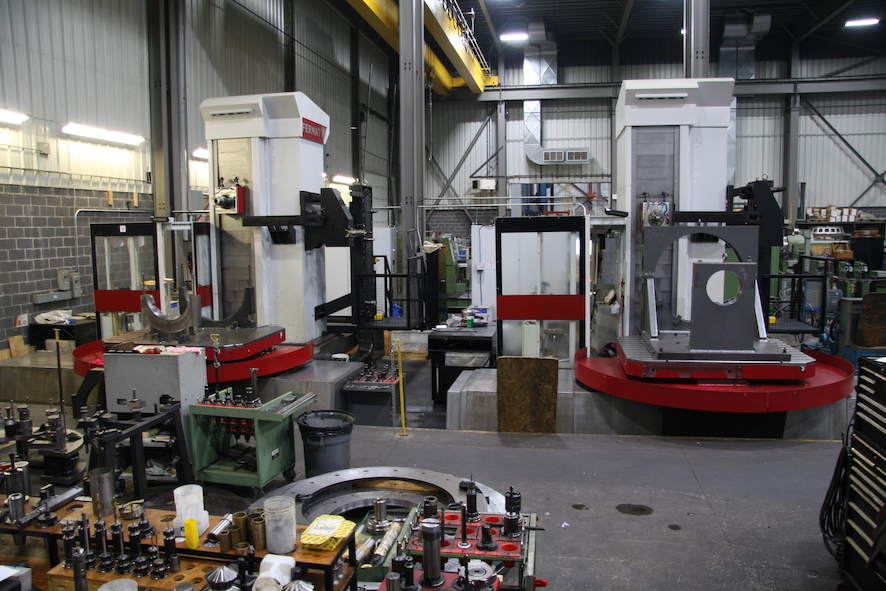

2 FERMAT WFT 13, ATC 40. HEIDENHAIN i TNC 530.
HEIDENHAIN i TNC 530.
Built 2016, Spindle hours 2.000 and 2.130.
Table 1.800 x 2.200 mm, 20 Ton. Backlash free two table motors, master / slave.
Automatic Micro head UHA 30 mi, and pick up station
Cooling through spindle 70 bar.
Built 2016, Spindle hours 2.000 and 2.130.
Table 1.800 x 2.200 mm, 20 Ton. Backlash free two table motors, master / slave.
Automatic Micro head UHA 30 mi, and pick up station
Cooling through spindle 70 bar.
| X Column travel | 3.000 mm |
|---|---|
| Y Headstock vertical travel | 2.500 mm |
| Z spindle stroke | 730 mm |
| W Column in spindle direction | 1.500 mm |
| Spindle diameter | 130 mm |
| Spindle diameter | ISO 50 |
| Spindle speed | 3000 rpm |
| Spindle motor | 41 / 61,5 kW |
| Rotary Table size | 1.800 x 2.200 mm |
| Table load | 20 ton |
| C-axes | 360 000° |
