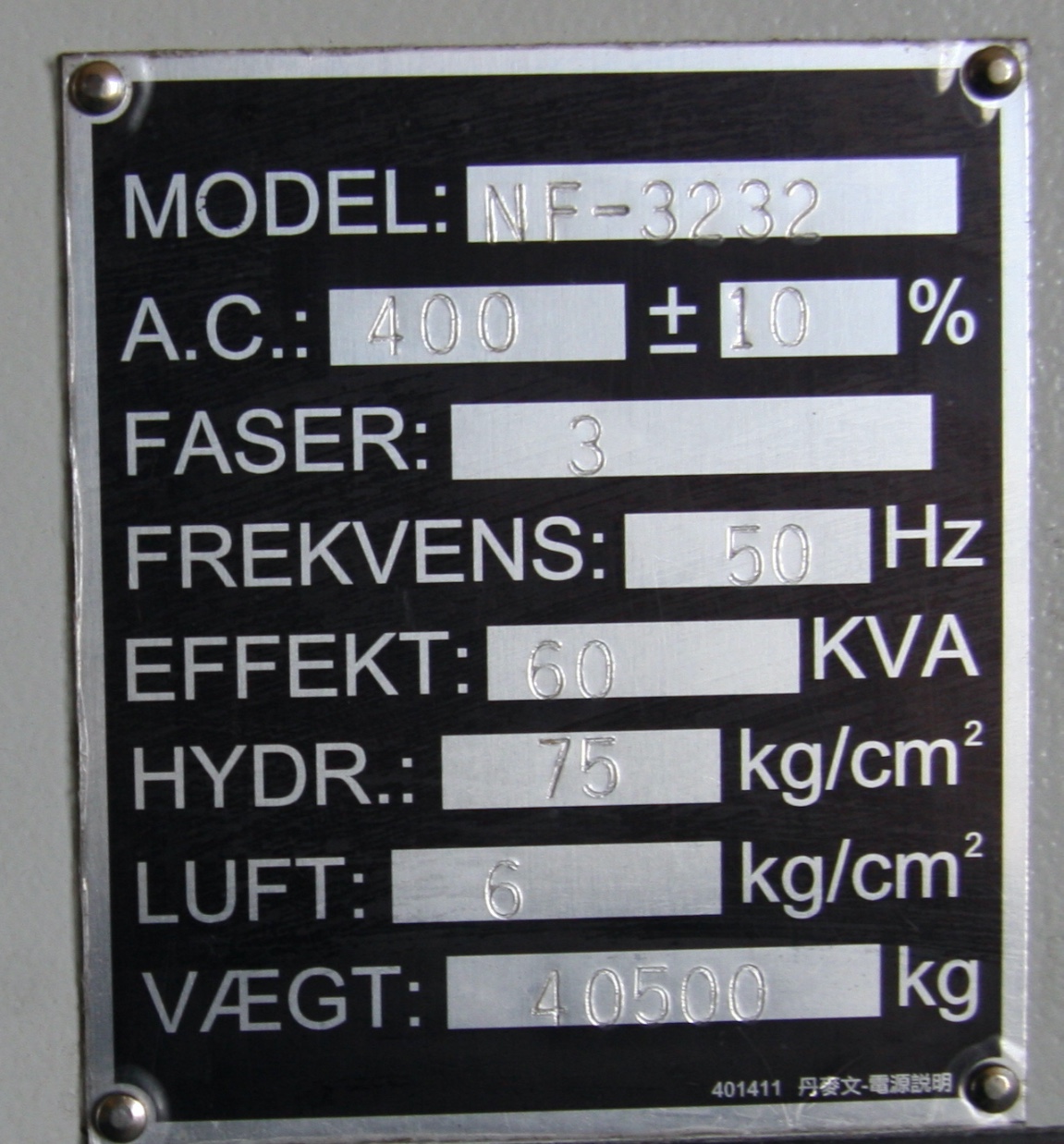

Vision Wide VTEC NF 3232.

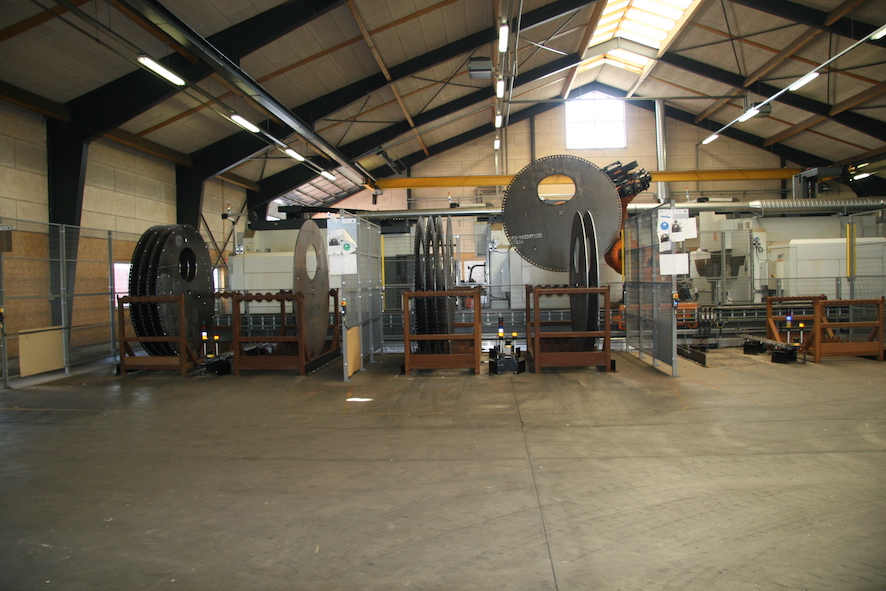

2 pcs CNC Double Column Machining Centers.
For workpiece loading and unloading and Rear side milling and Finishing.

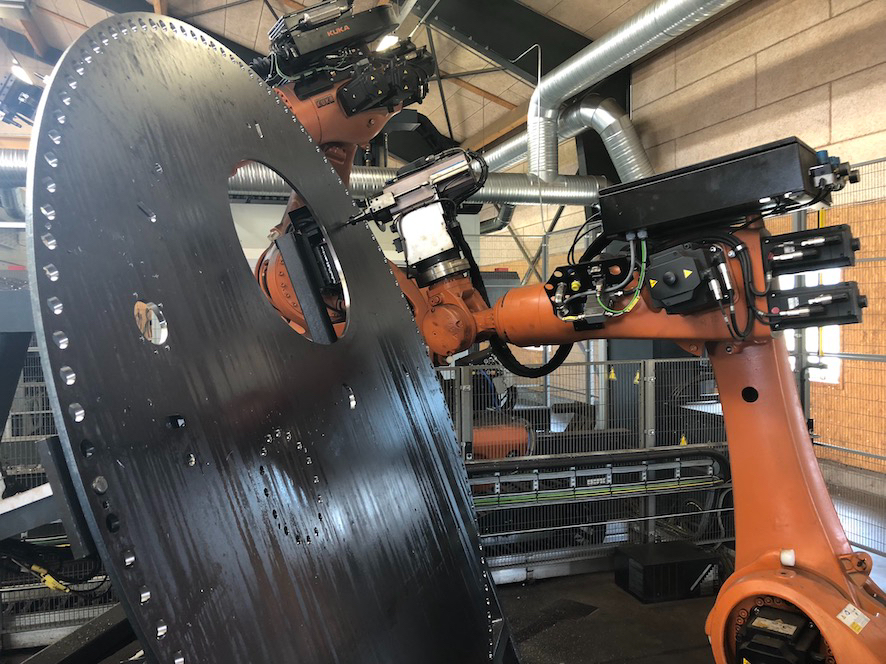

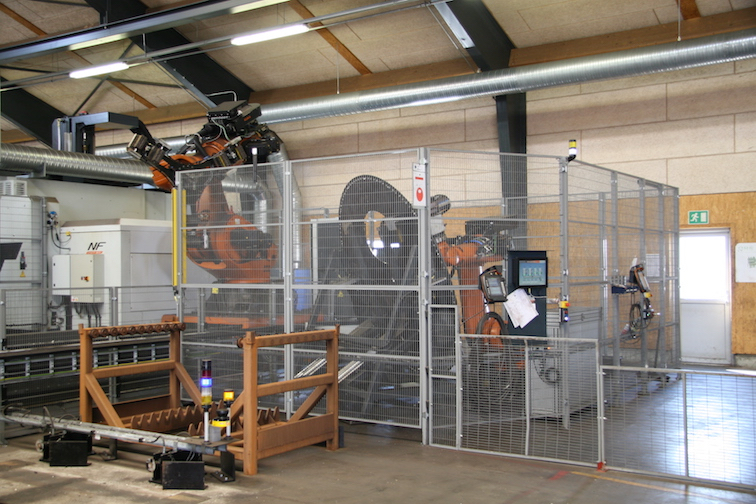

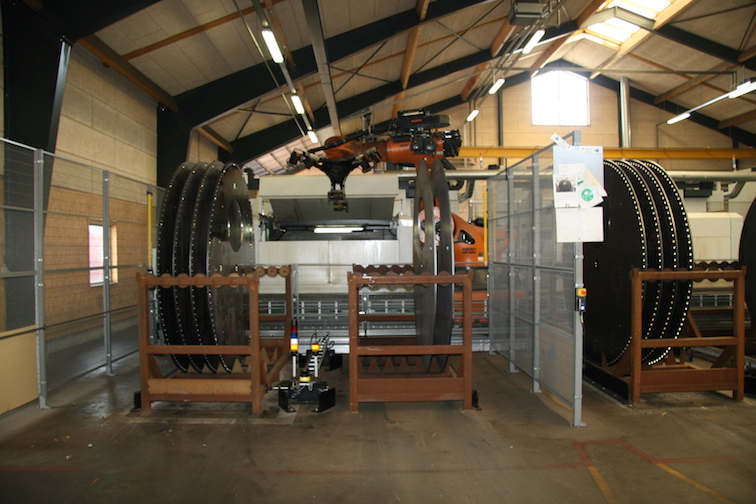

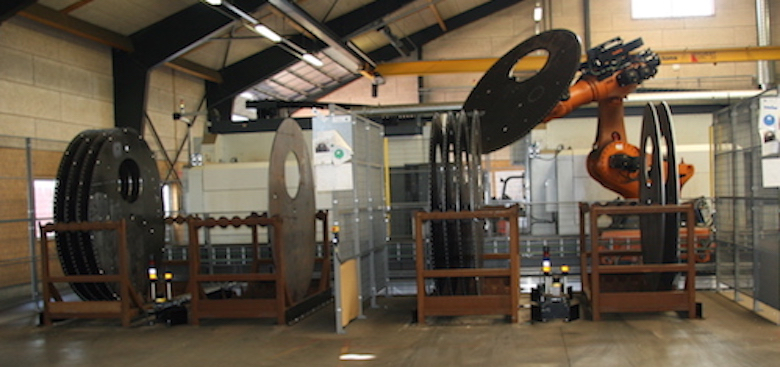

2 Kuka Robot Titan with 3,6 m radius and 12 m travel and 750 kg.
Kuka Robot with drilling, milling etc with pick up station tool changer.
Both machines can be used as individual machines.

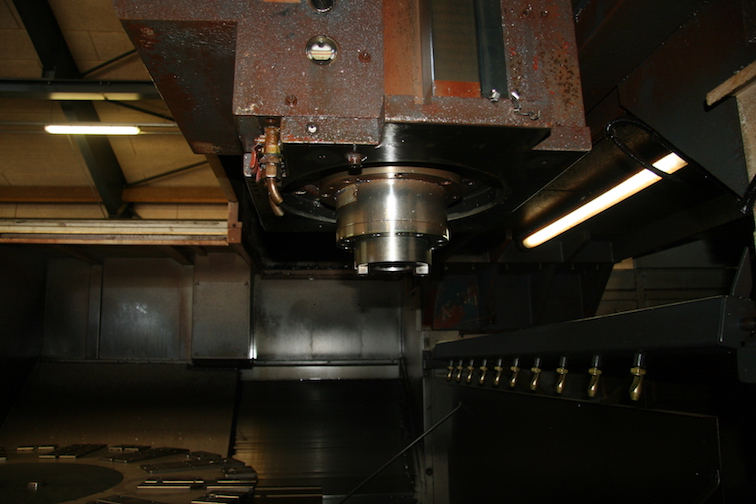

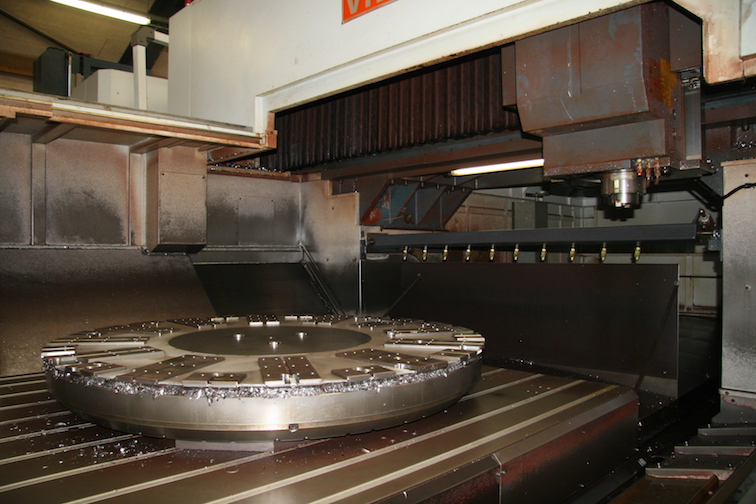

2 pcs CNC Double Column Machining Centers.

Table dimension 3.000×2.450 mm
Max. table load 13.000 kg
T-slots 28 x 11 x 200 mm
Distance between column 2.800 mm
X axis 3.200 mm
Y axis 3.200 mm
Z axis 920 mm
Spindel nose to table 150 - 1.070 mm
Spindel speed 6.000 rpm
Spindle motor (continuous/ 30 minutes rated) 22 / 26 kW

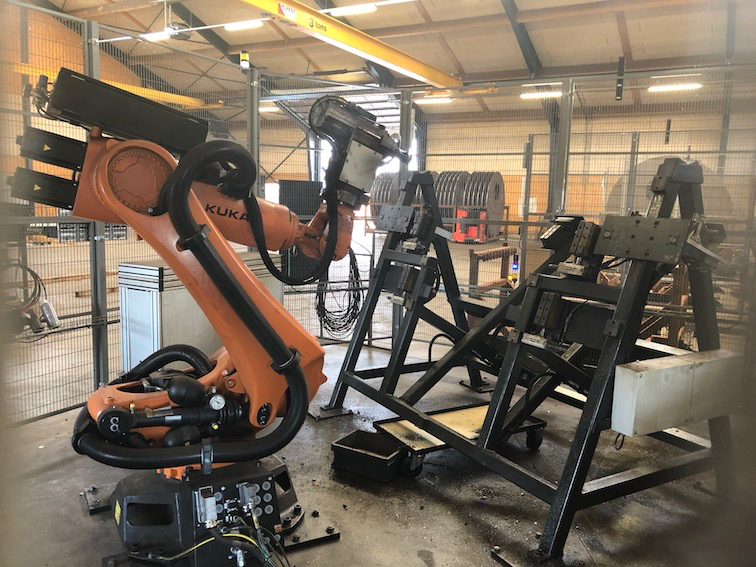

2 Kuka Robot Titan capacity 3,6 m radius and 750 kg

Drilling, milling etc with pick up station tool changer.
