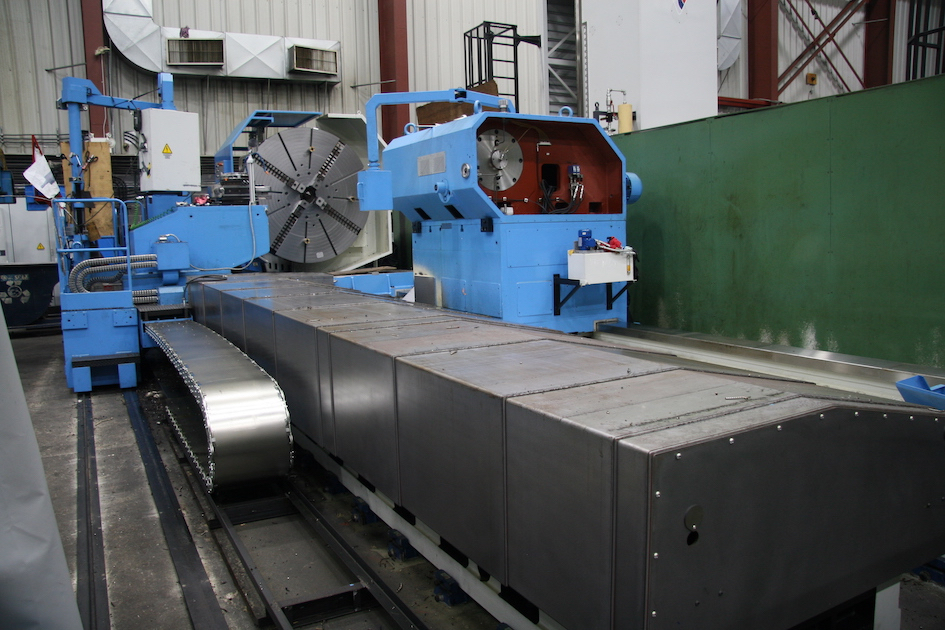

TACCHI DB 1400 x 7000.

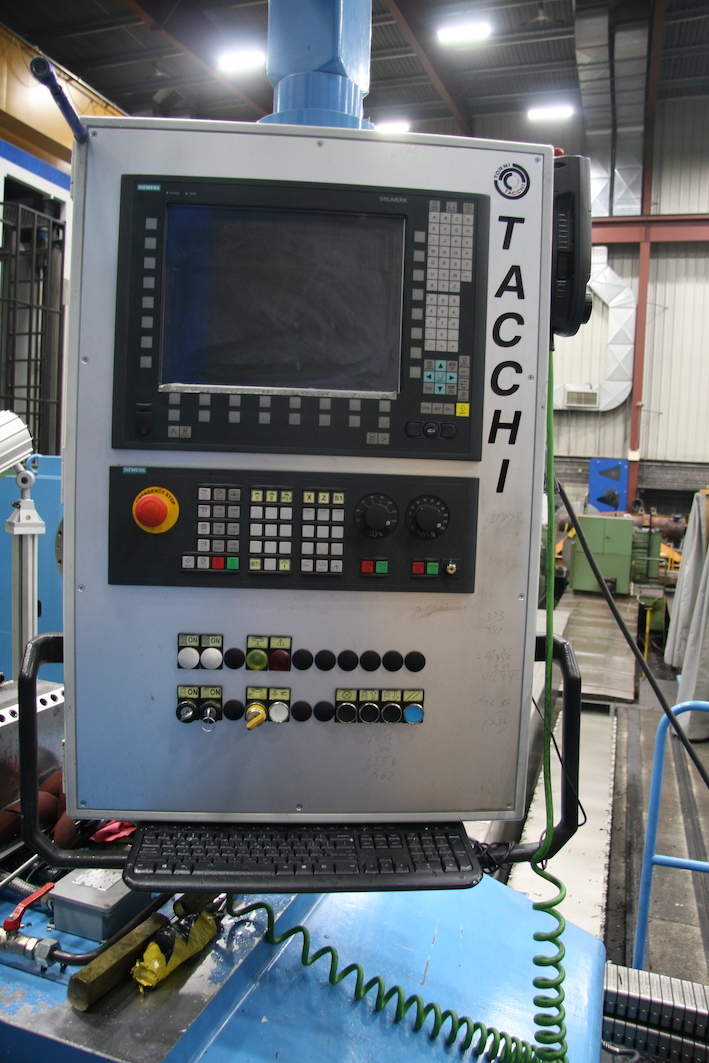

CNC lathe with SIEMENS 840 D.
New 2015.

Turning diameter 2.400 mm.
Turning length 7.000 mm.

Working Capacity

Turning Length 7.000 mm
Turning Diameter 2.400 mm
Turning Diameter over saddle 2.200 mm

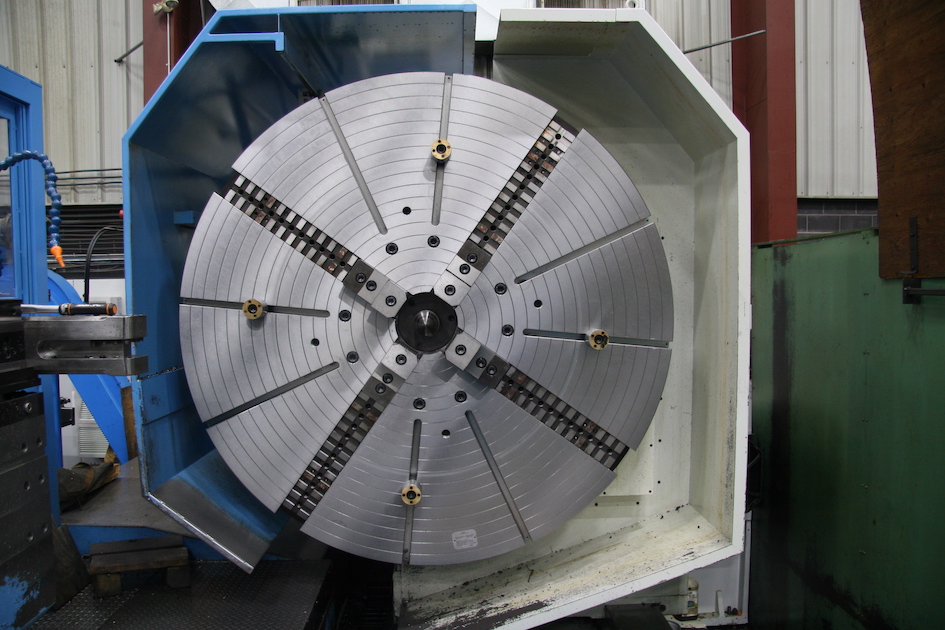

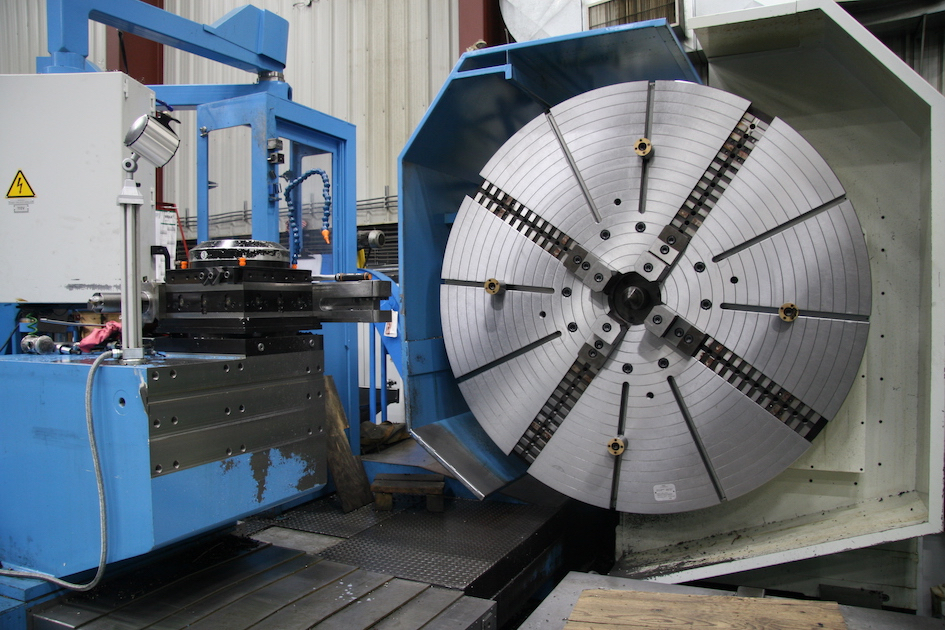

Faceplate diameter 2.000 mm
Center height 1.400 mm
Allowed weight between centers 60 tons

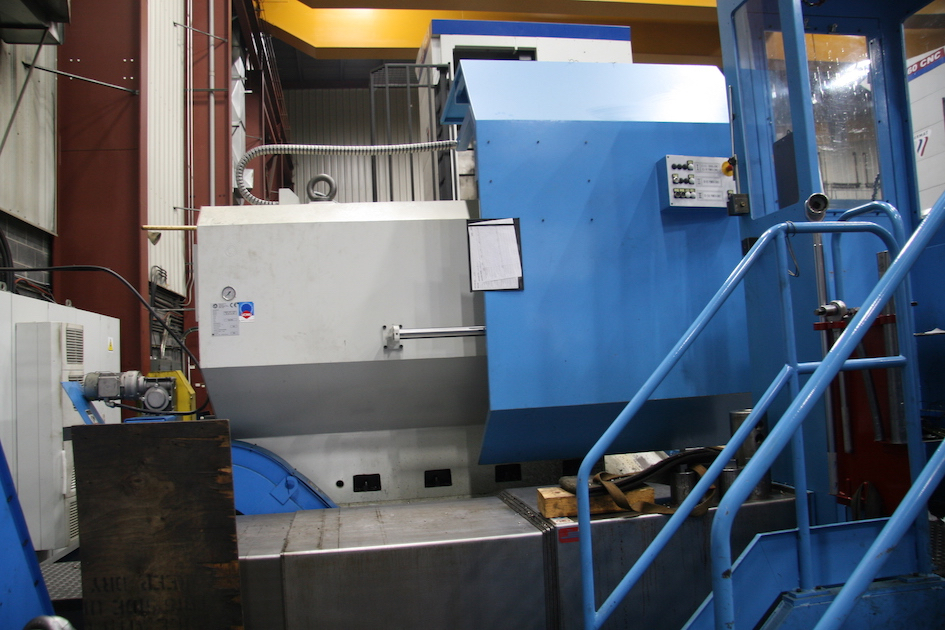

Head

Spindle motor power in a.c. Brushless 129 kW
Spindle nose 20 "
Diameter of spindle at front bearing 710 mm
Spindle bore 160 mm
Infinitely variable speed range 1-250 rpm
Speed range in constant power 9,5 - 250 rpm
Number of speed 3
Torque 110000 Nm

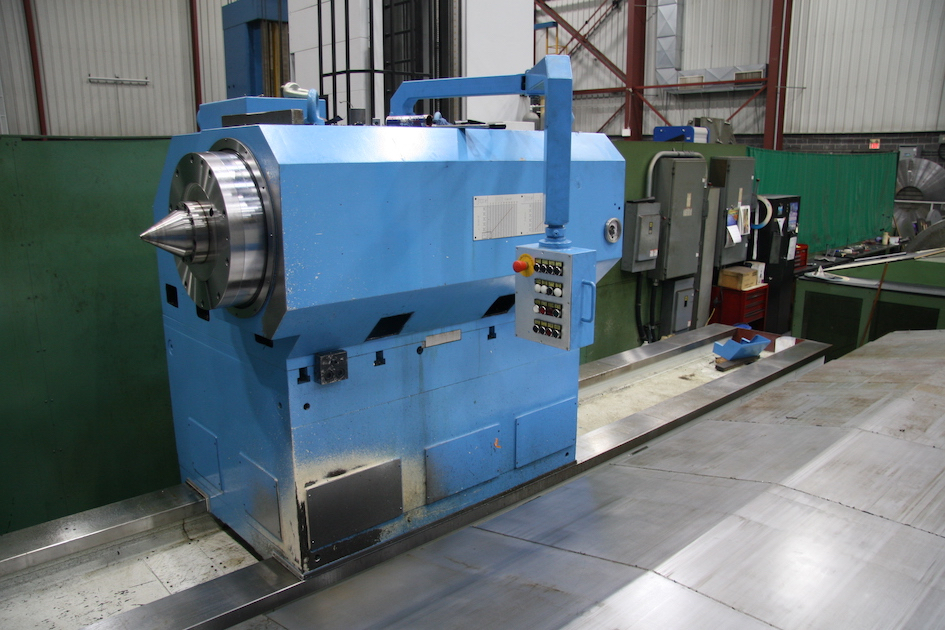

TAILSTOCK

Tailstock sleeve diameter 540 mm
Tailstock sleeve stroke 200 mm
Centre cone Diam.160 mm, taper 60°

Approx dimensions machine

Length 13.200 mm
Width 5.600 mm
Weight 82 ton
