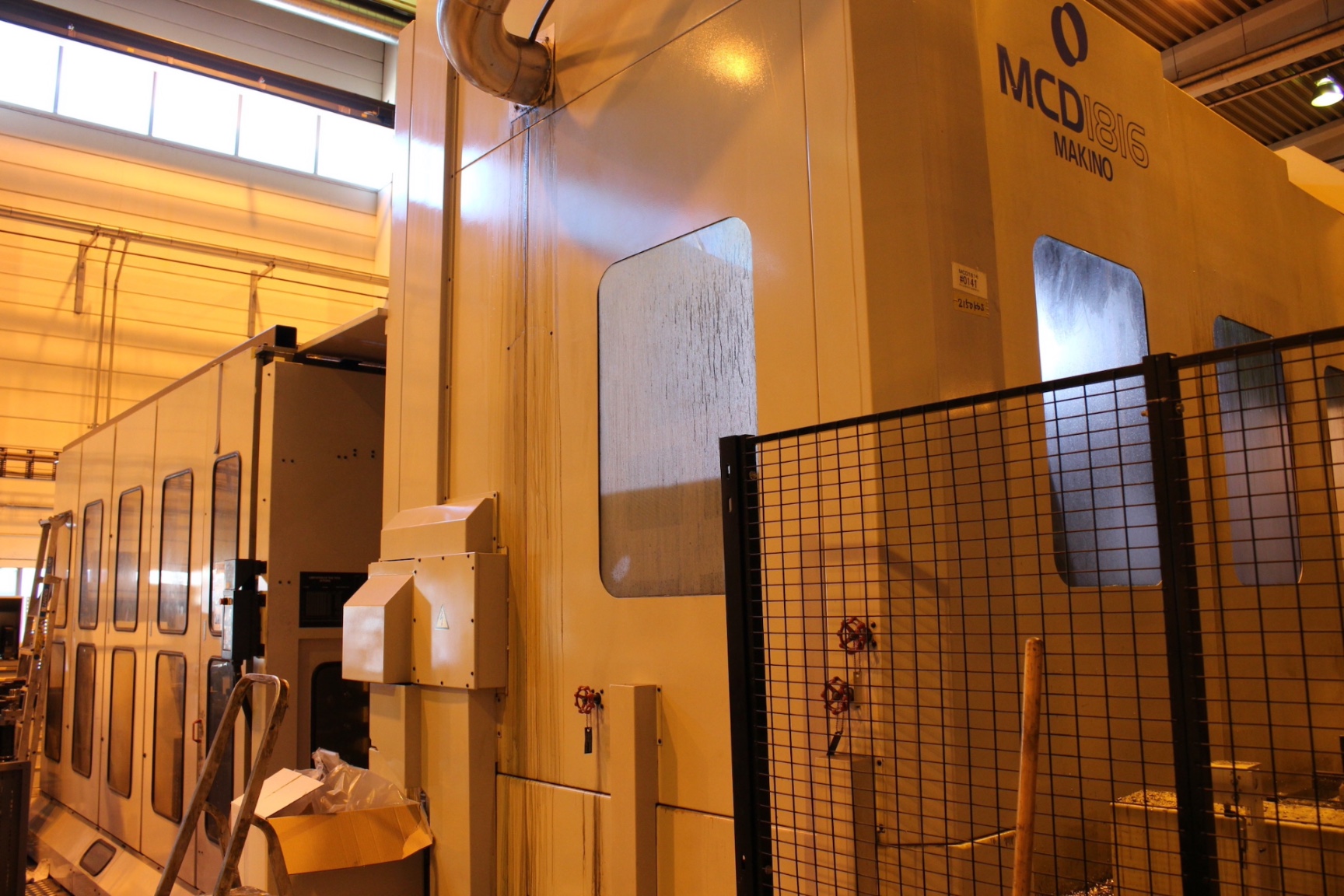

MAKINO MCD 1816 4-axes Horizontal Machining Center.

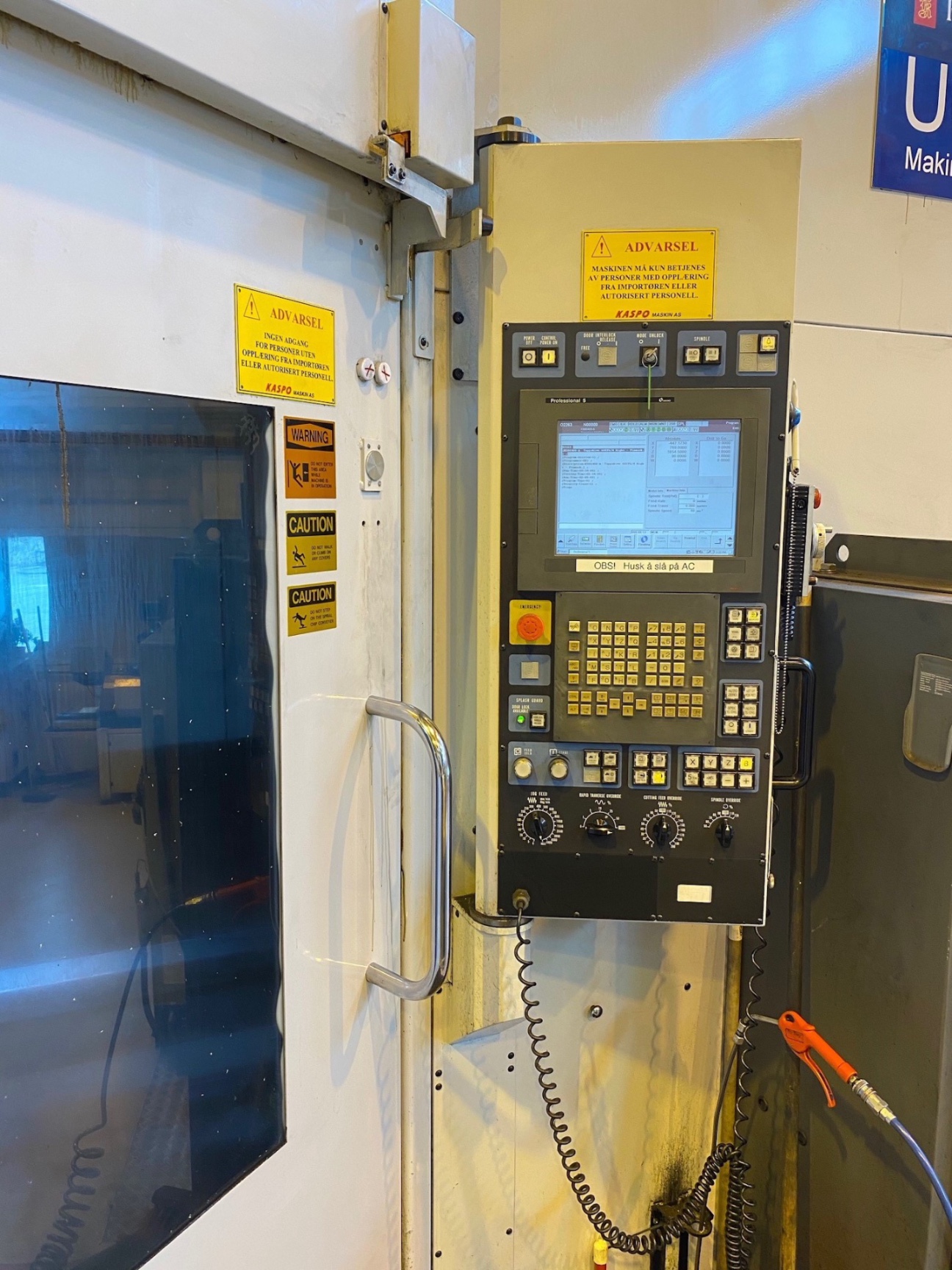

FANUC Profesional 5.

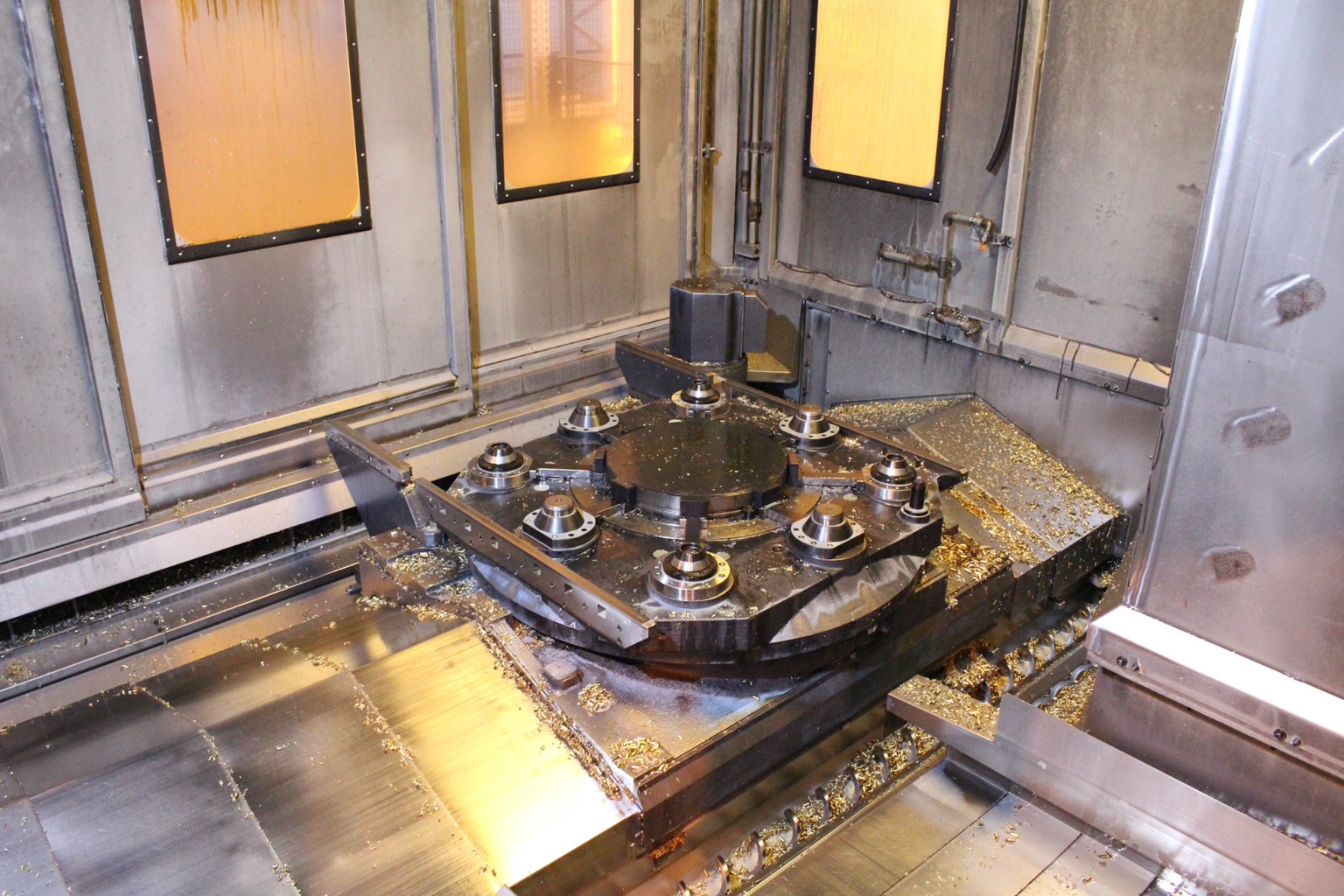

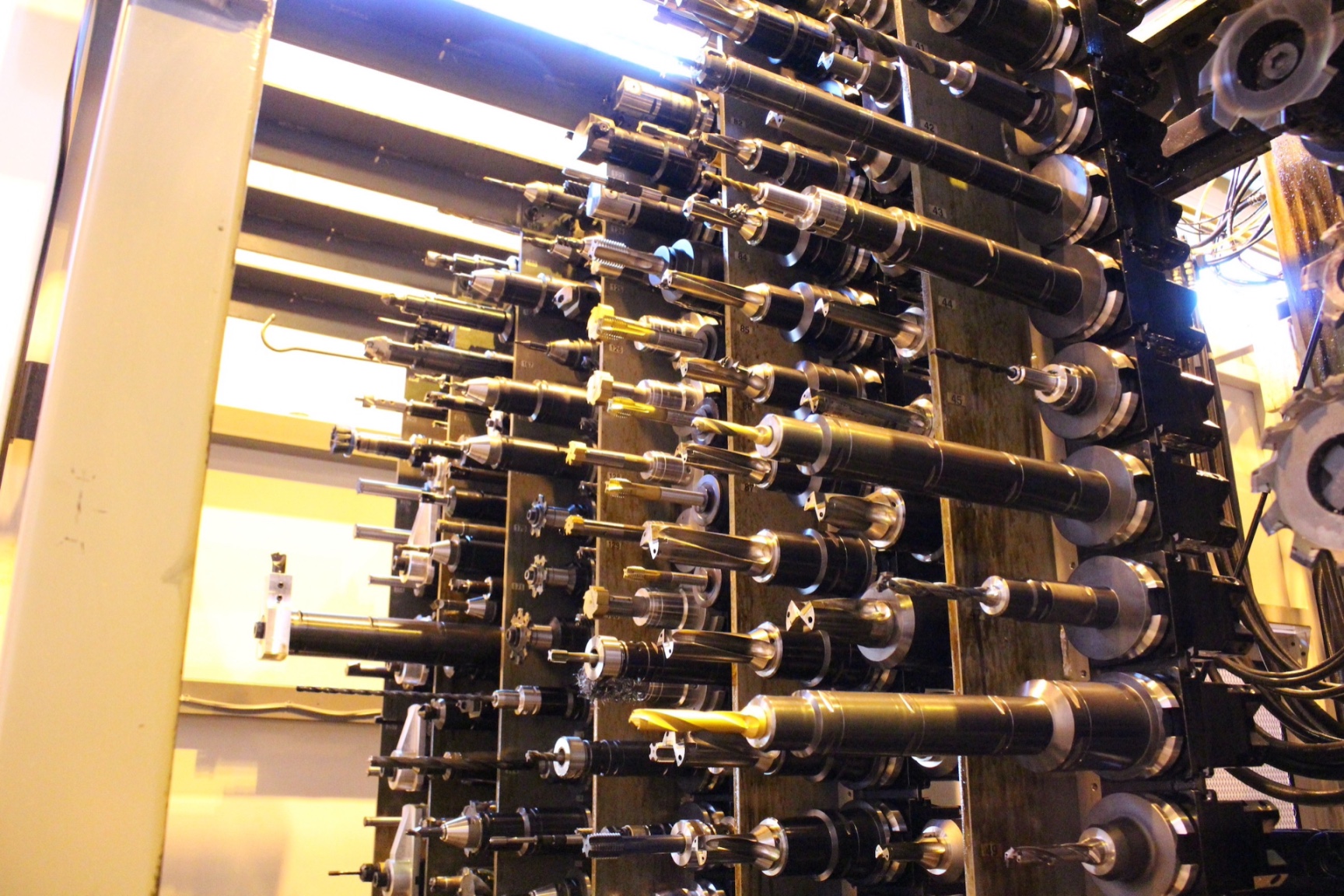

10 Pallets 1.300 x 1.300, Height 1.330 mm. ATC 267. Built 2007.

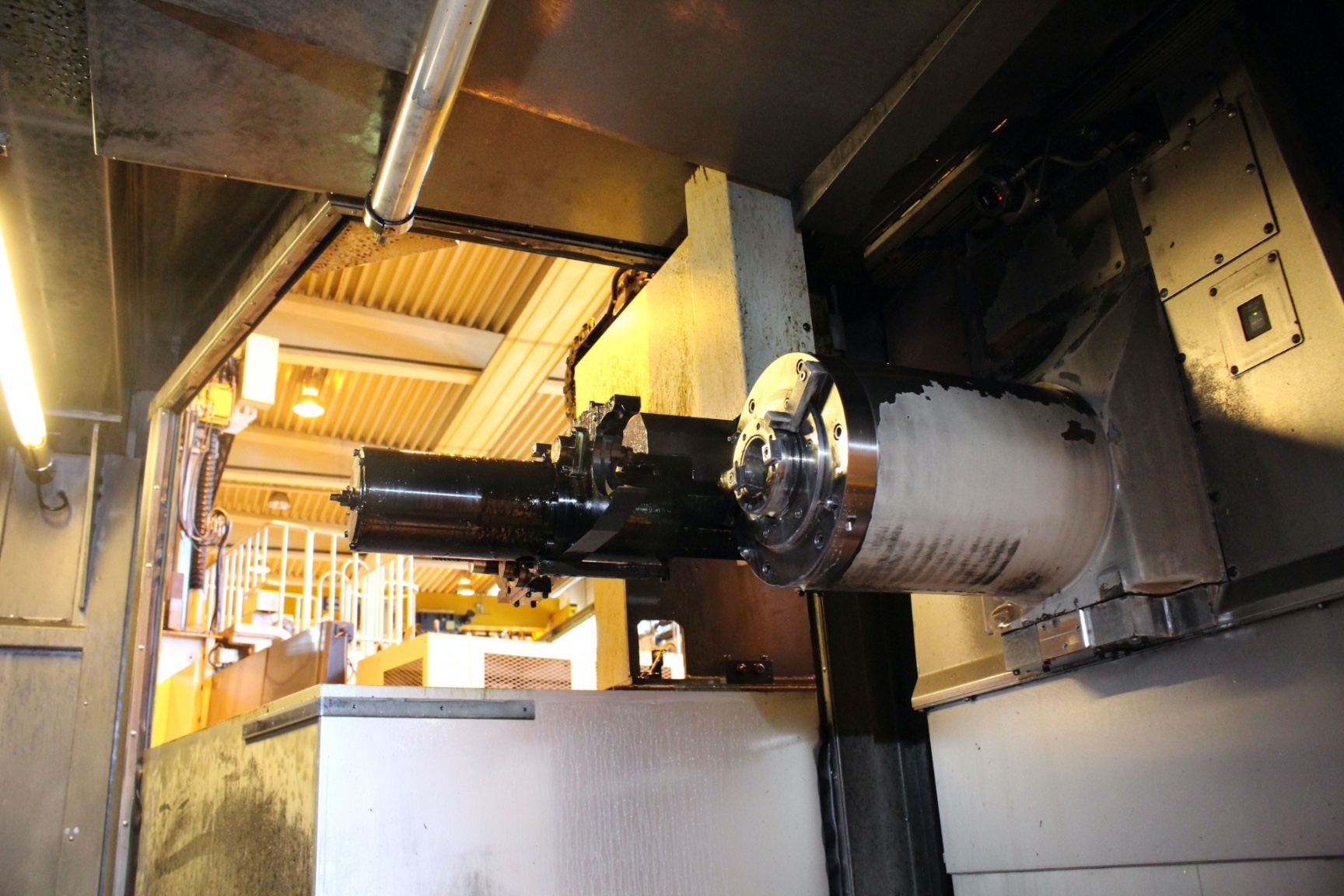

Spindle taper BT 50, BigPlus.
With Many Tools and Accessories.

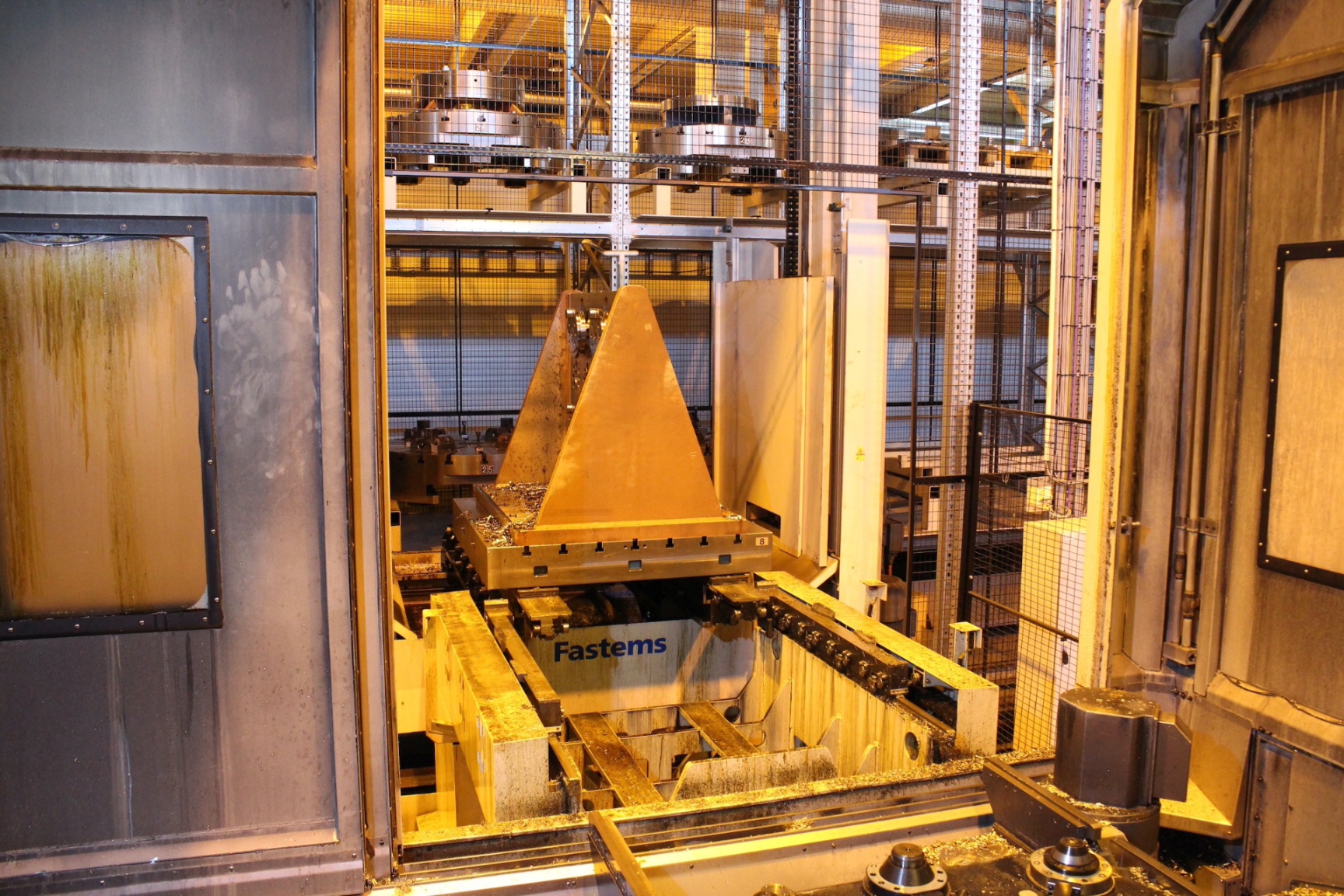

Connected to FASTEMS Pallet System and TEIJO Washing Machine. With 10 Pallets.
10 Pallets 1.300 x 1.300, Height 1.330 mm. ATC 267. Built 2007.
Spindle taper BT 50, BigPlus.
With Many Tools and Accessories.
Connected to FASTEMS Pallet System and TEIJO Washing Machine. With 10 Pallets.
Video
| Pallet size | 1.300 x 1.300 mm |
|---|---|
| Max Workpiece | 2.200 x 1.900 mm |
| Max Workpiece Height | 1.330 mm |
| X-axis, Pallet Length travel | 1.800 mm |
| Y-axis, Spindle vertical | 1.600 mm |
| Z-axis, Pallet cross travel | 1.300 mm |
| W-axis, Spindle travel | 300 mm |
| Spindle Speed | 4.000 rpm |
| Spindle Motor | 30 kW |
| Spindle Diameter | Ø 120 mm |
| B-axis, Pallet indexing 0,0001° | 360.0000° |
| Pallet load | 10.000 kg |
| Distance table surface - spindle axis | 50 - 1.650 mm |
| Cutting Feed ( X/Y/Z) | 16.000 mm / min |
| Rapid Feed ( X/Y/Z) | 16 m / min |
| Weigth | ca 30 ton |
| Floor Space | 4.420 x 5.905 mm |
| Machine height | 4.430 mm |
