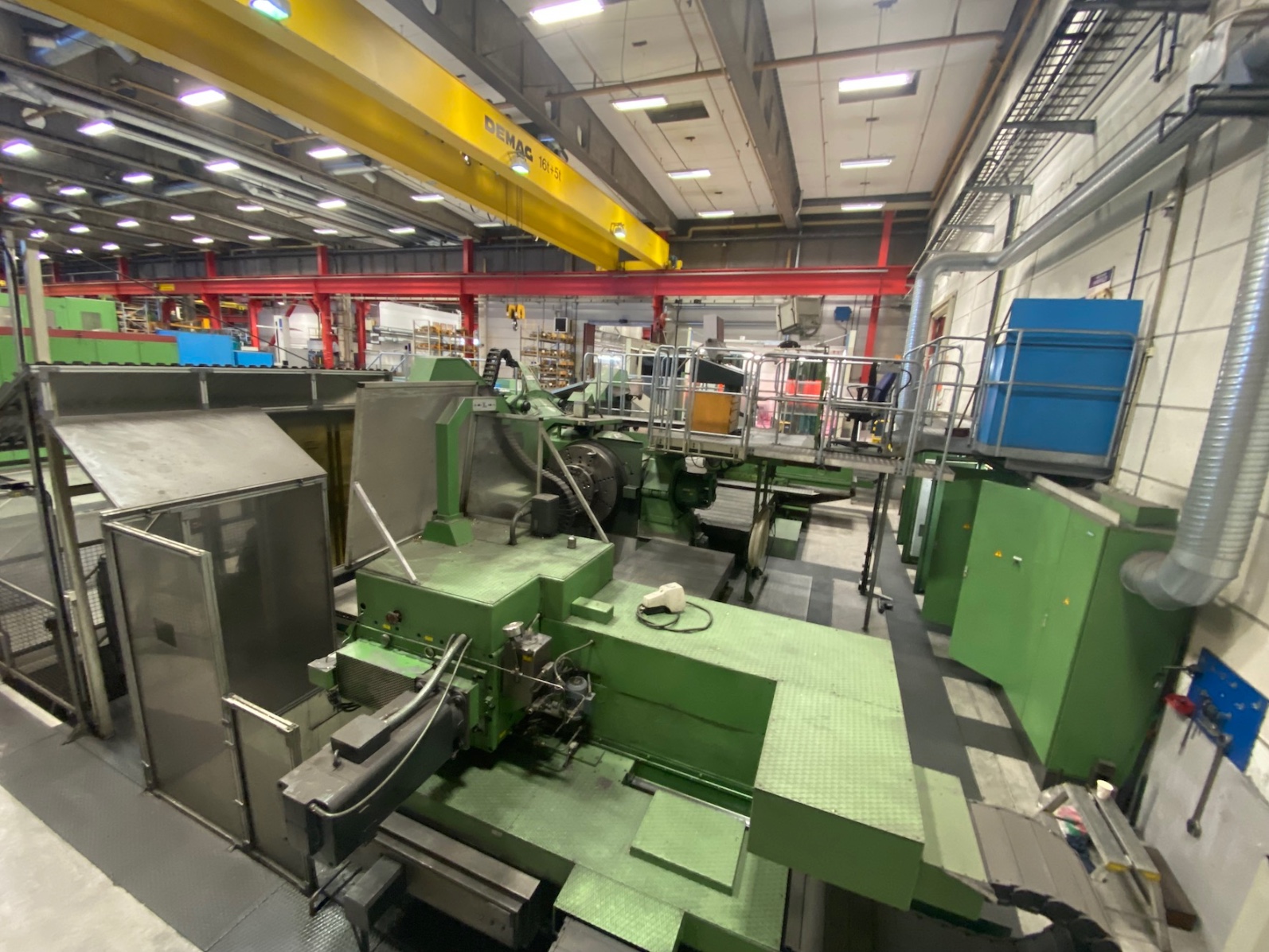

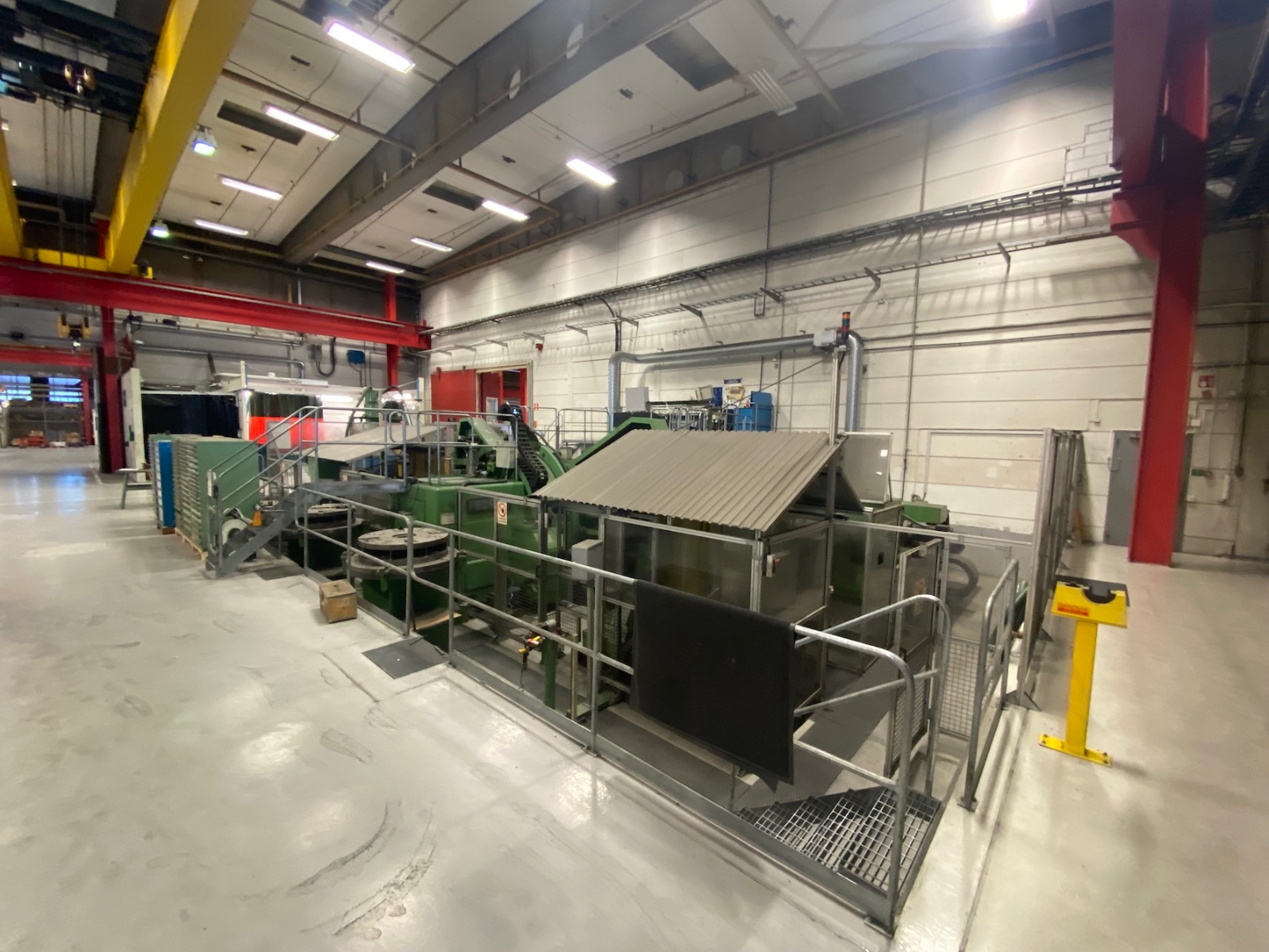

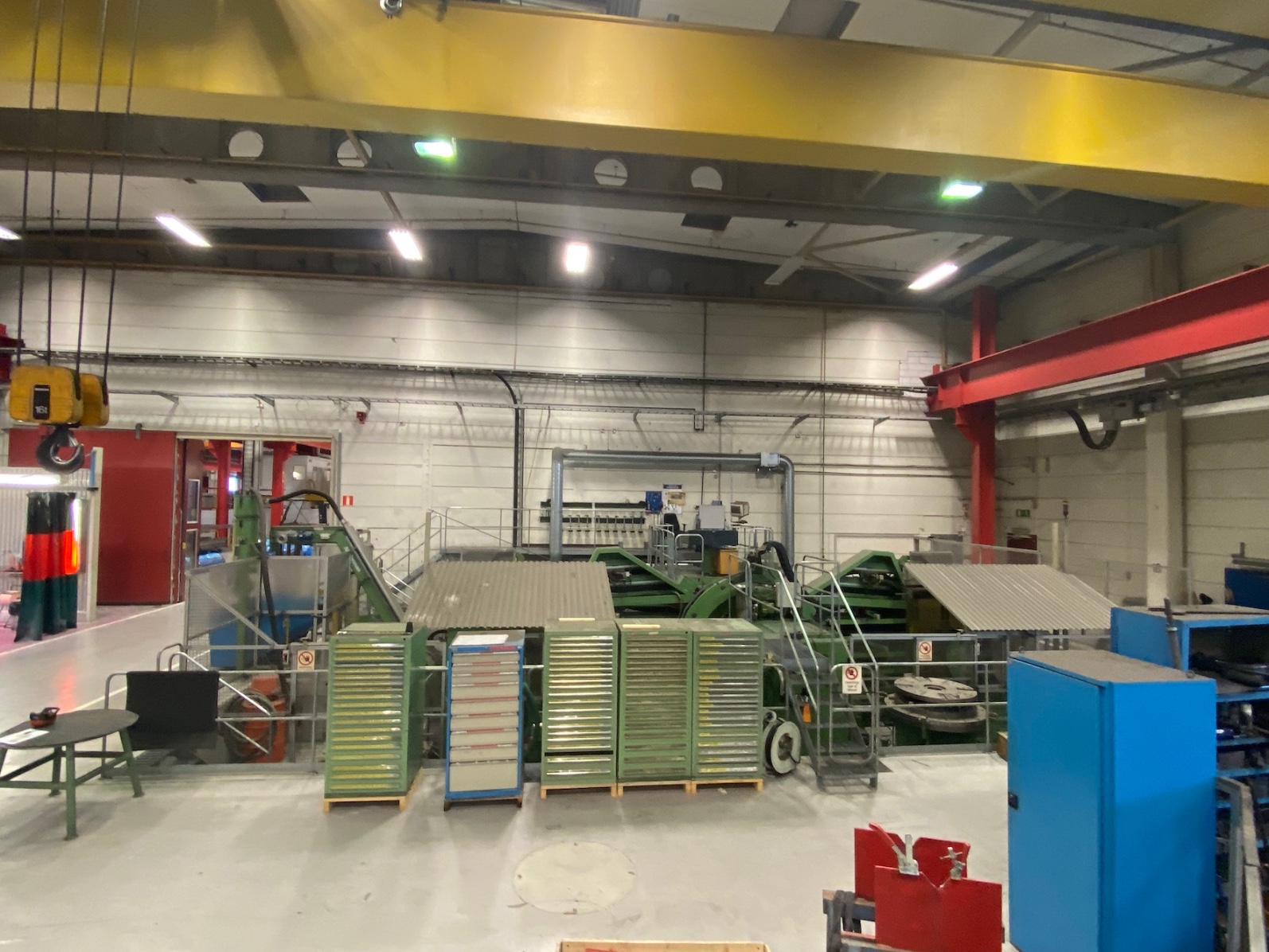

Froriep Spheromill P

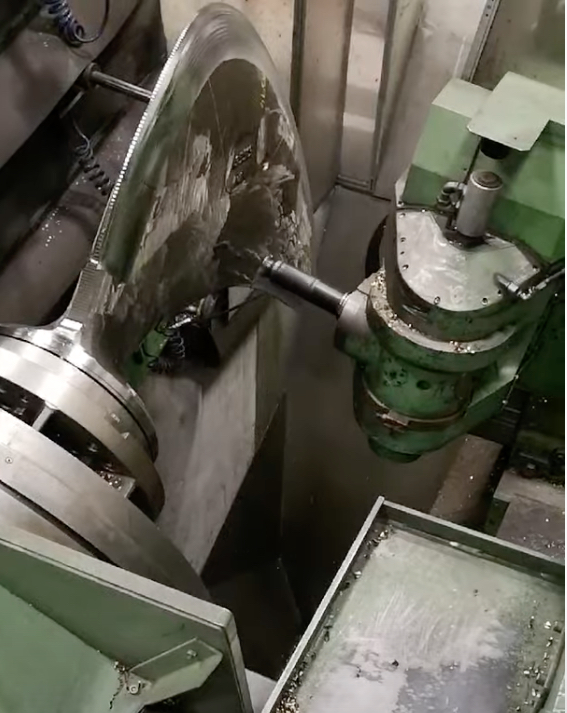

Propeller mill simultaneously machines two propeller blades.
For Propeller, Impeller and other complex shaped components.
The fastest way to machine two blades.
SIEMENS 840 D 5-axes on each Spindle.
2 Milling spindle 25 kW, ATC 2 x 12
Max Propeller diameter 7 m, Max blade weight 8 Ton.
With semi-automatic suction cup for holding blades.
CE marked. 1998.
For Propeller, Impeller and other complex shaped components.
The fastest way to machine two blades.
SIEMENS 840 D 5-axes on each Spindle.
2 Milling spindle 25 kW, ATC 2 x 12
Max Propeller diameter 7 m, Max blade weight 8 Ton.
With semi-automatic suction cup for holding blades.
CE marked. 1998.
Video
Feeds for each Milling Spindle.
| X, Horizontal travel | 3.080 mm |
|---|---|
| Y, Vertical travel | 1.300 mm |
| A-axes, Milling head, Fork-head | +/- 90° |
| Feeds Milling head, Fork-head | 720° / min |
| B-axes, Milling head | +/- 120° |
| Feeds Milling head | 720° / min |
| Spindle Speed | 2.000 rpm |
| Spindle taper | ISO 50 |
| Spindle motor | 25 kW |
| Spindle Torque | 180 kpm |
| Milling Spindle Diameter | 120 mm |
| Automatic tool changer | 12 Tools |
| Rapid traverse all axes | 10.000 mm/ min |
Machine Specs
| C-axes, Faceplate | +/-180° |
|---|---|
| C-axes, Faceplate Feeds | 360° / min |
| Suction cup, stroke | 520 mm |
| Suction cup, force | 100 kg |
| Machine weight ca | 100 Ton |

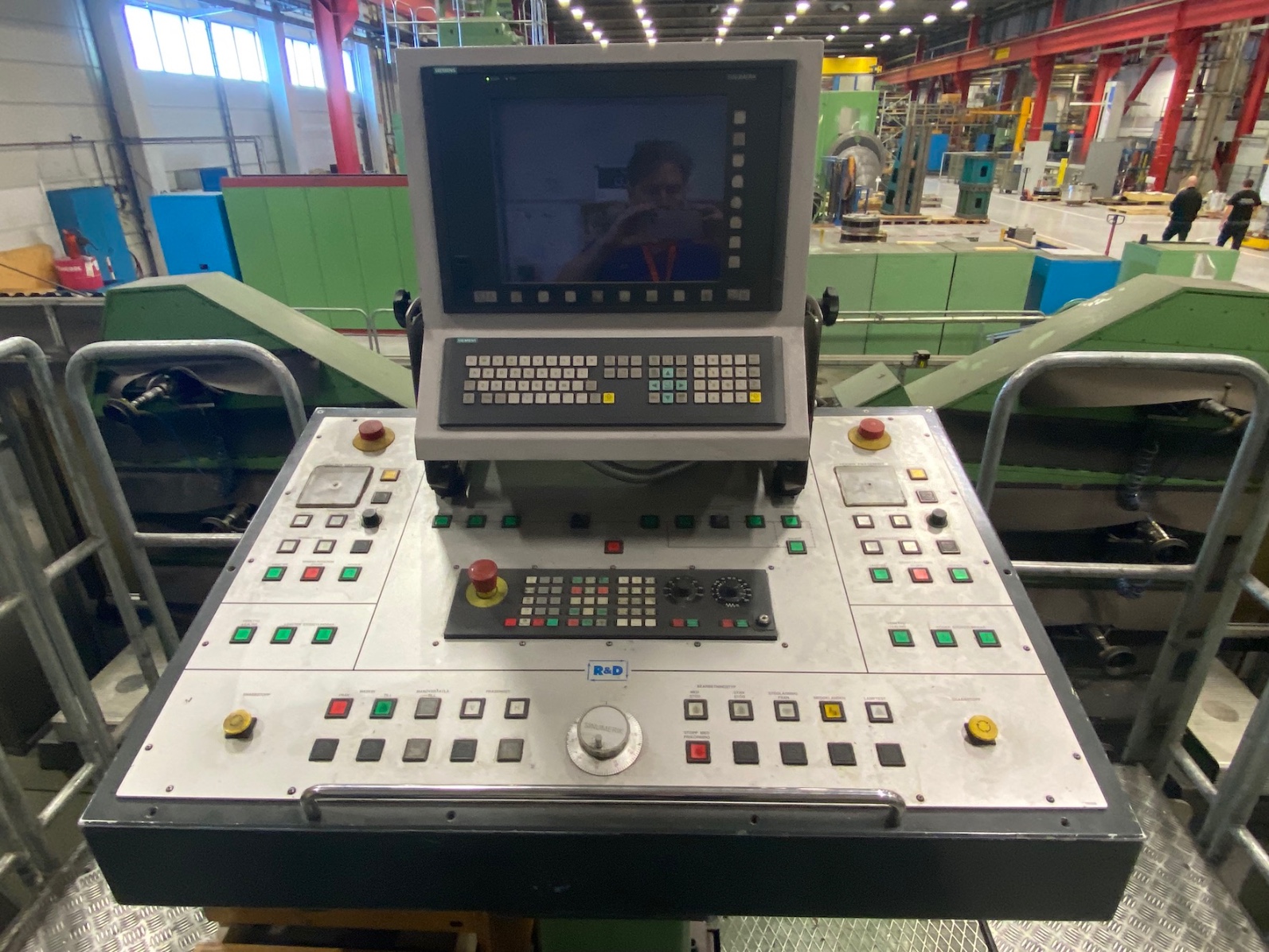

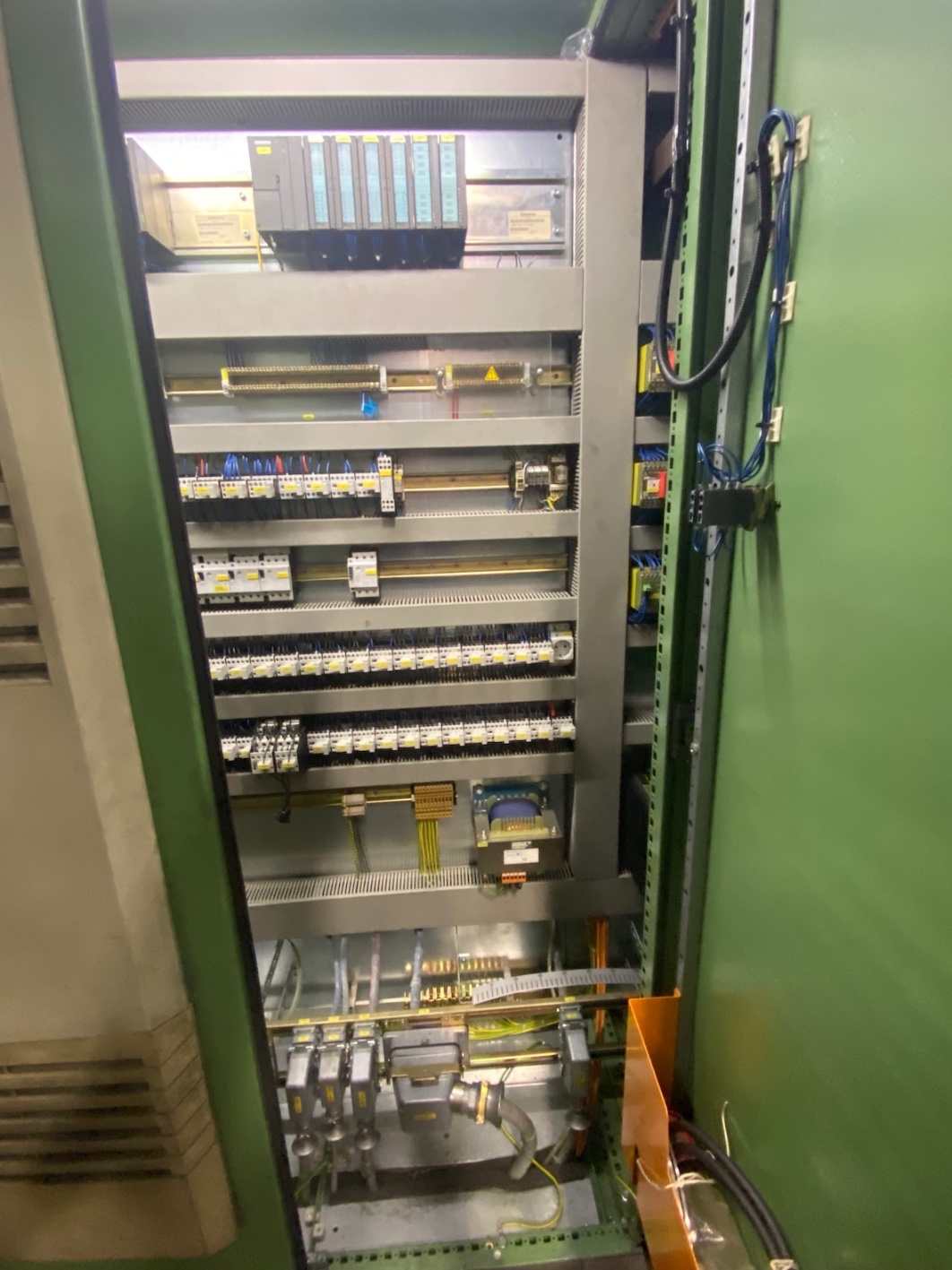

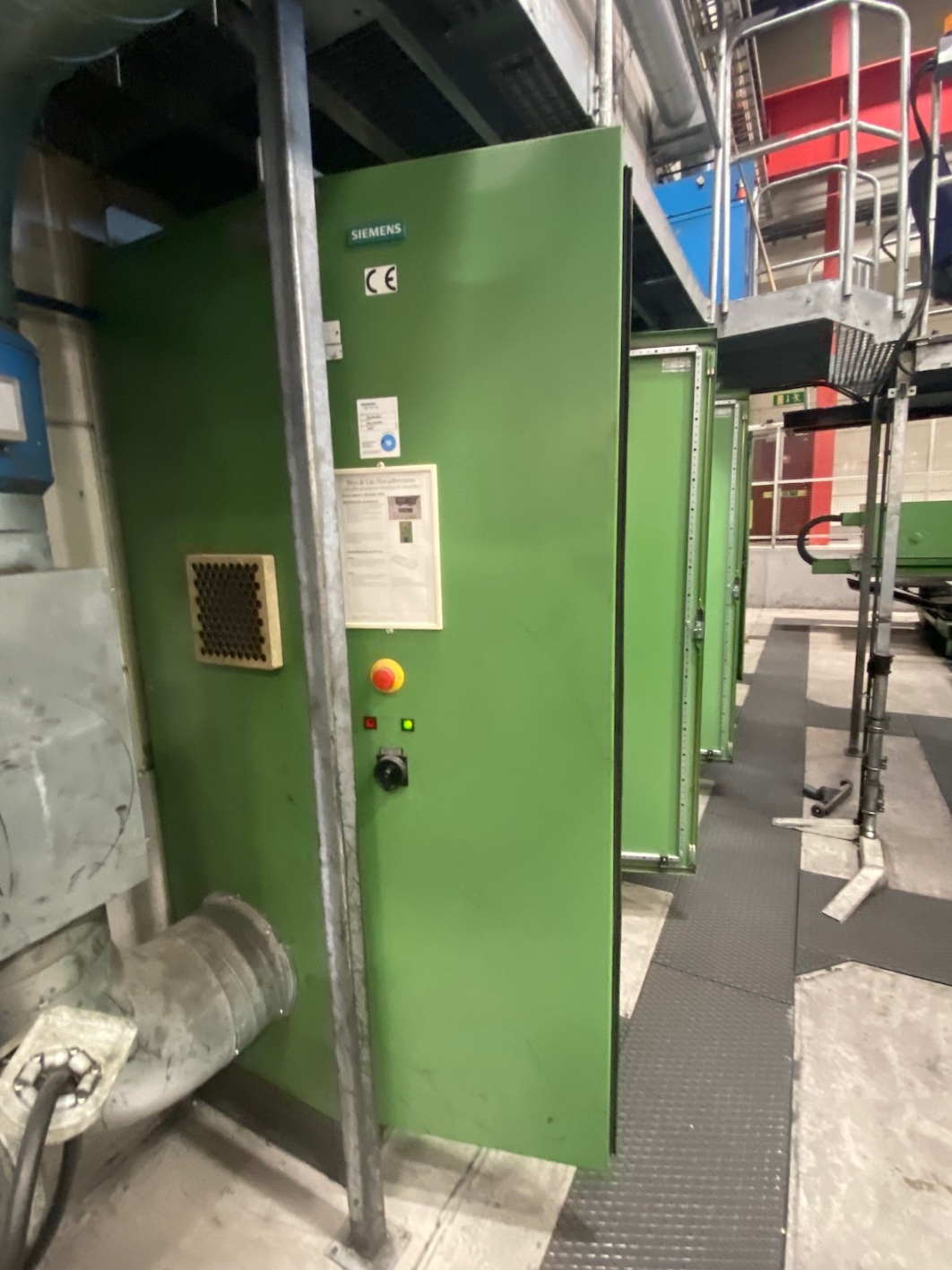

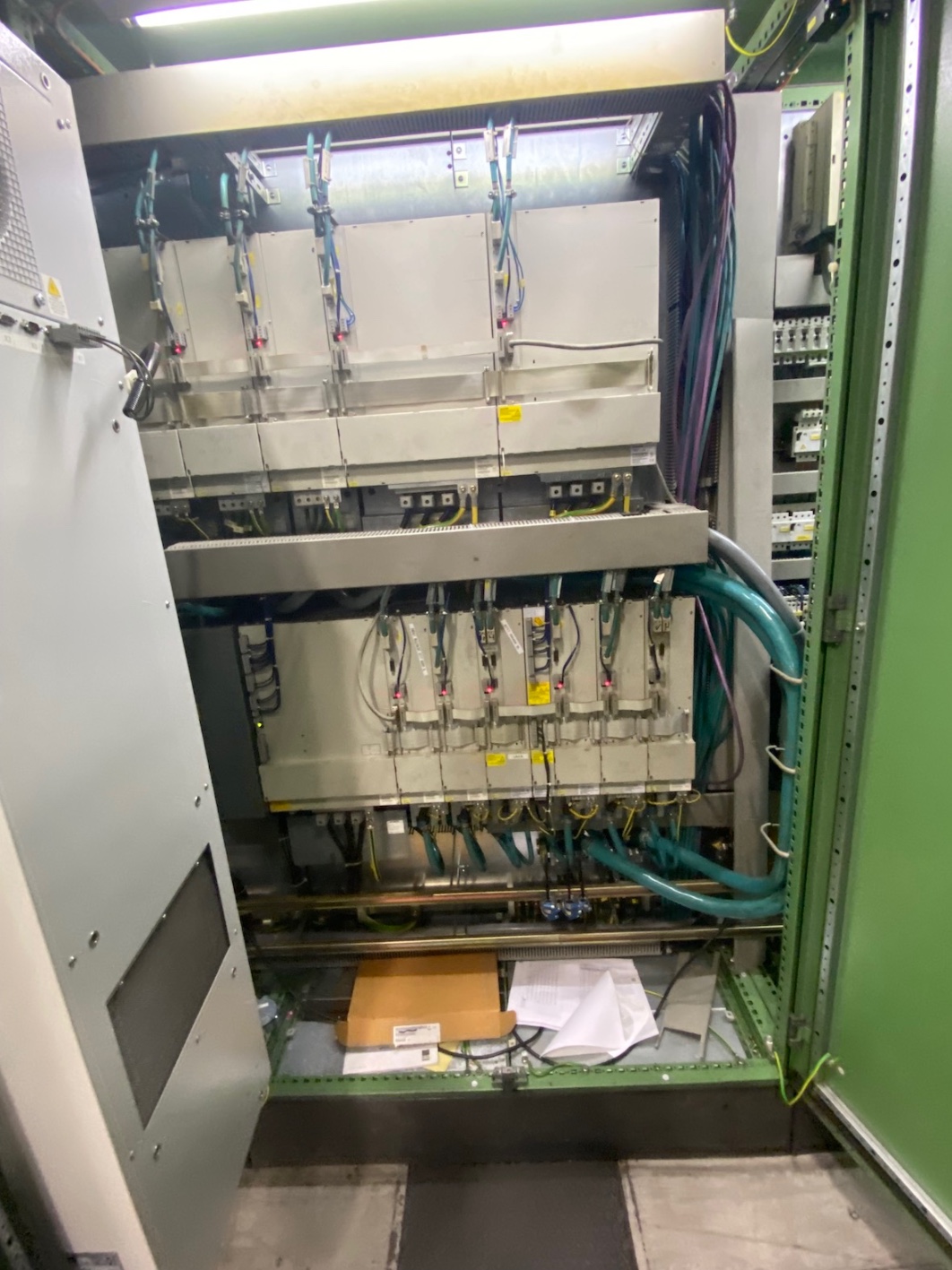

SIEMENS 840 D, 5 axes.

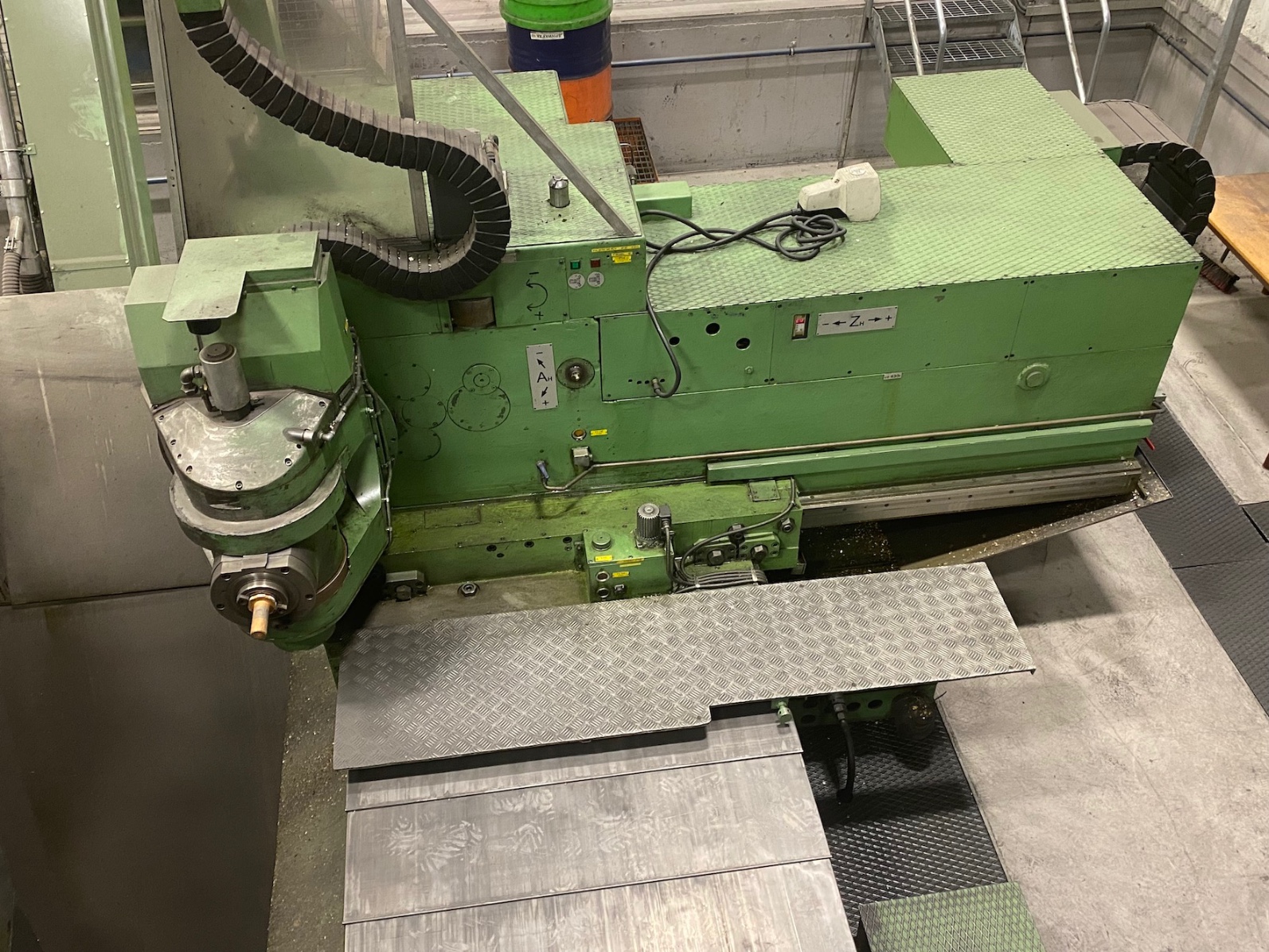

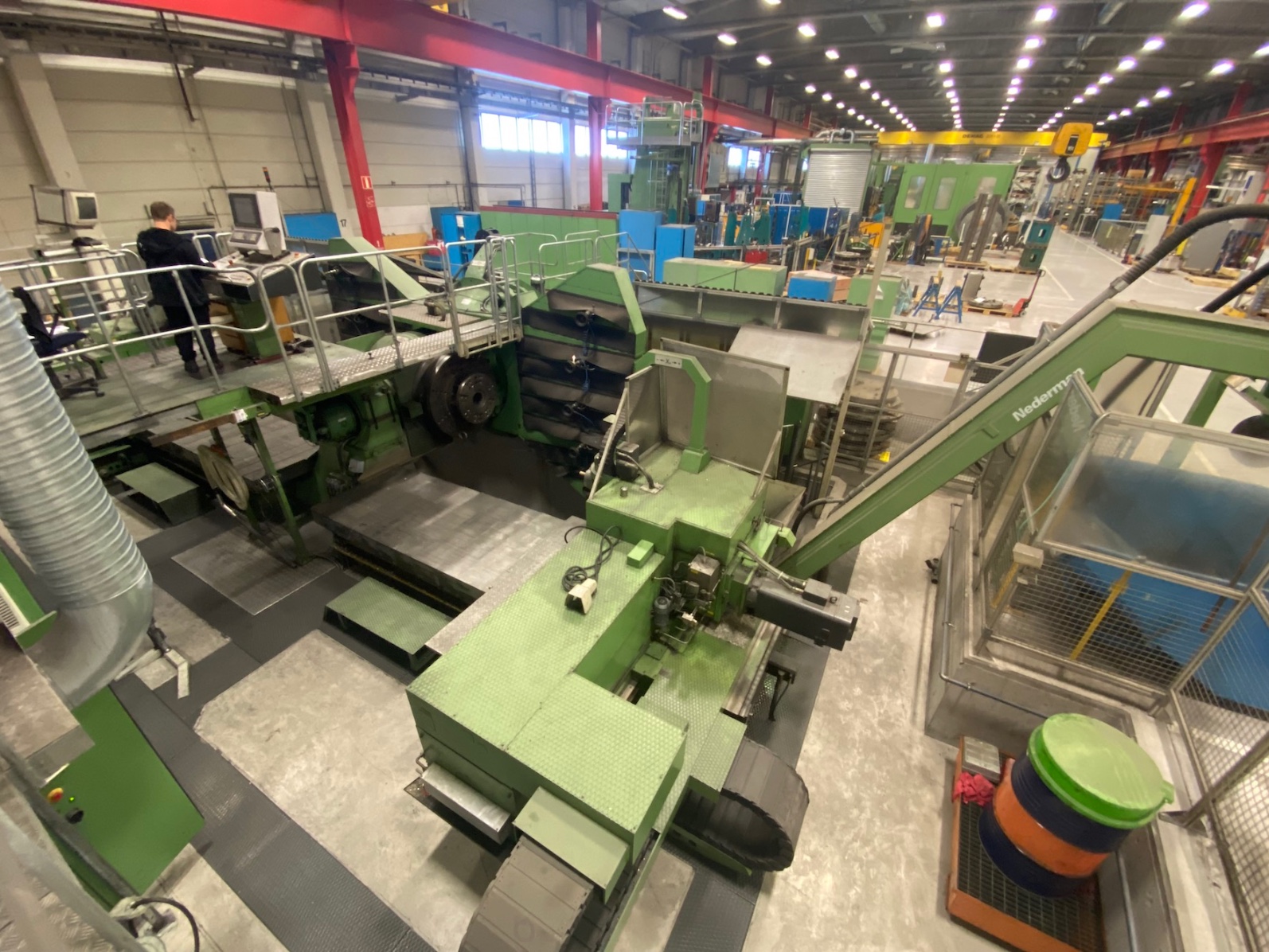

Master Spindel.
Master Spindel.
Master Spindel.

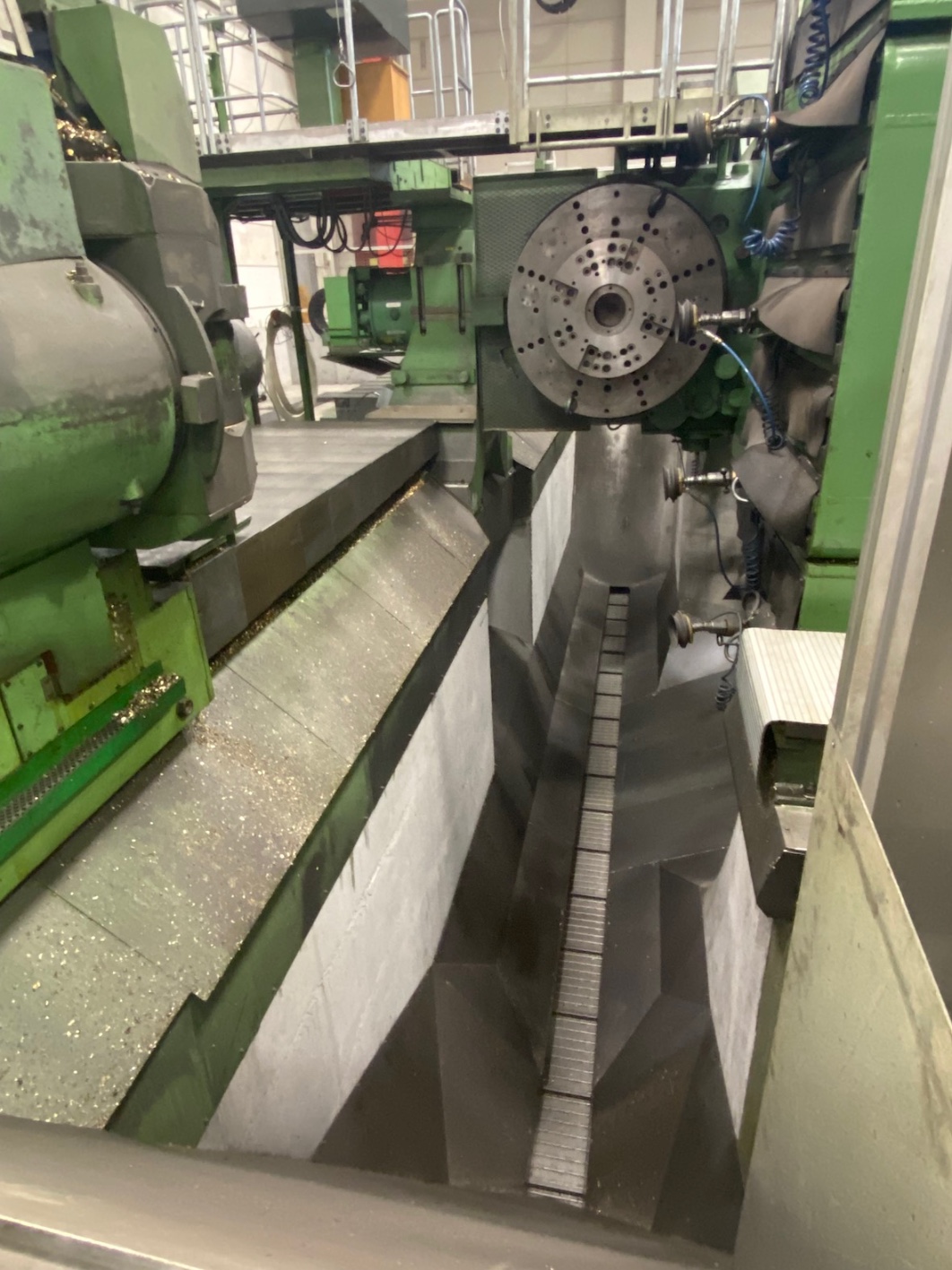

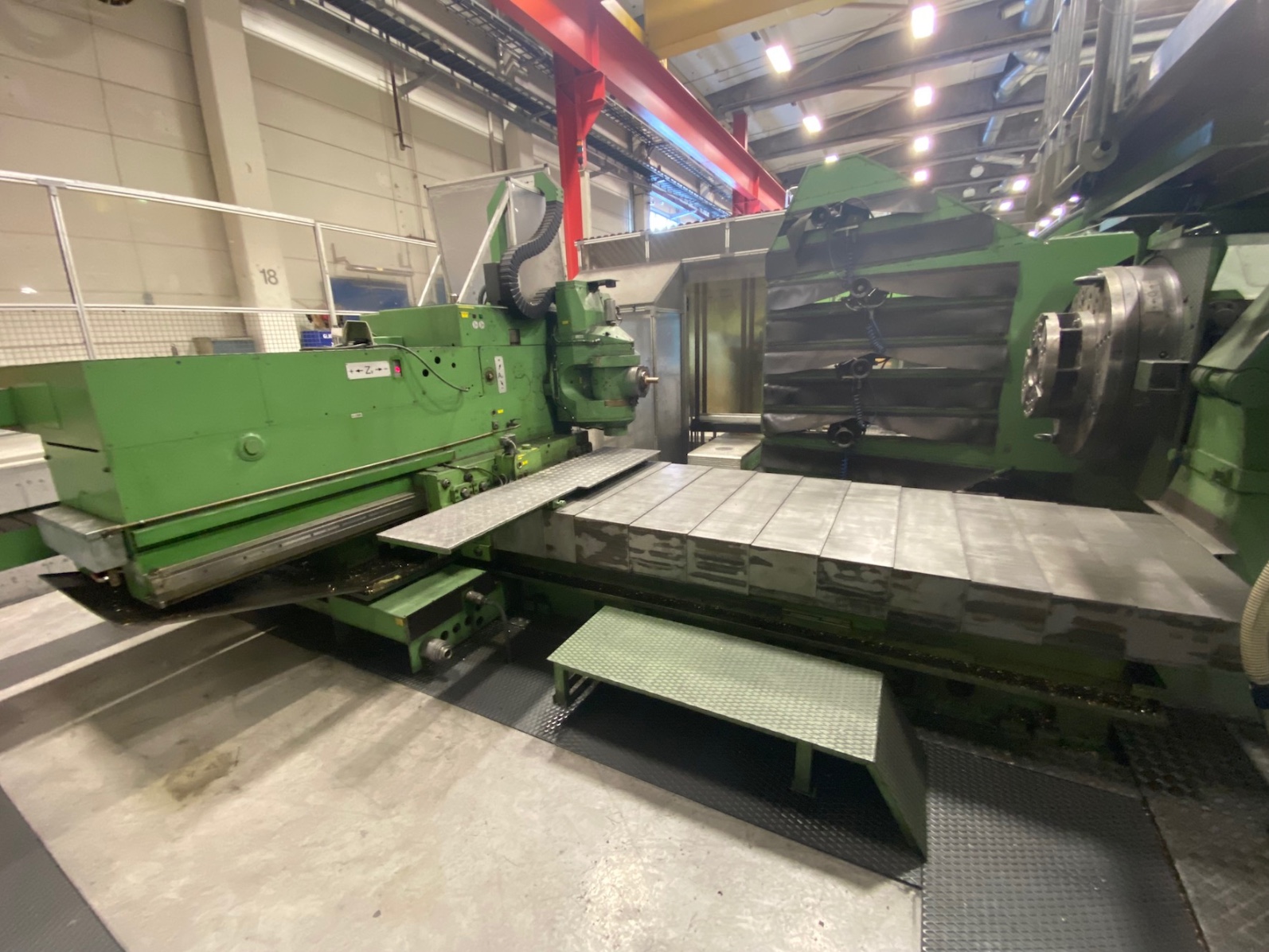

Face plate.

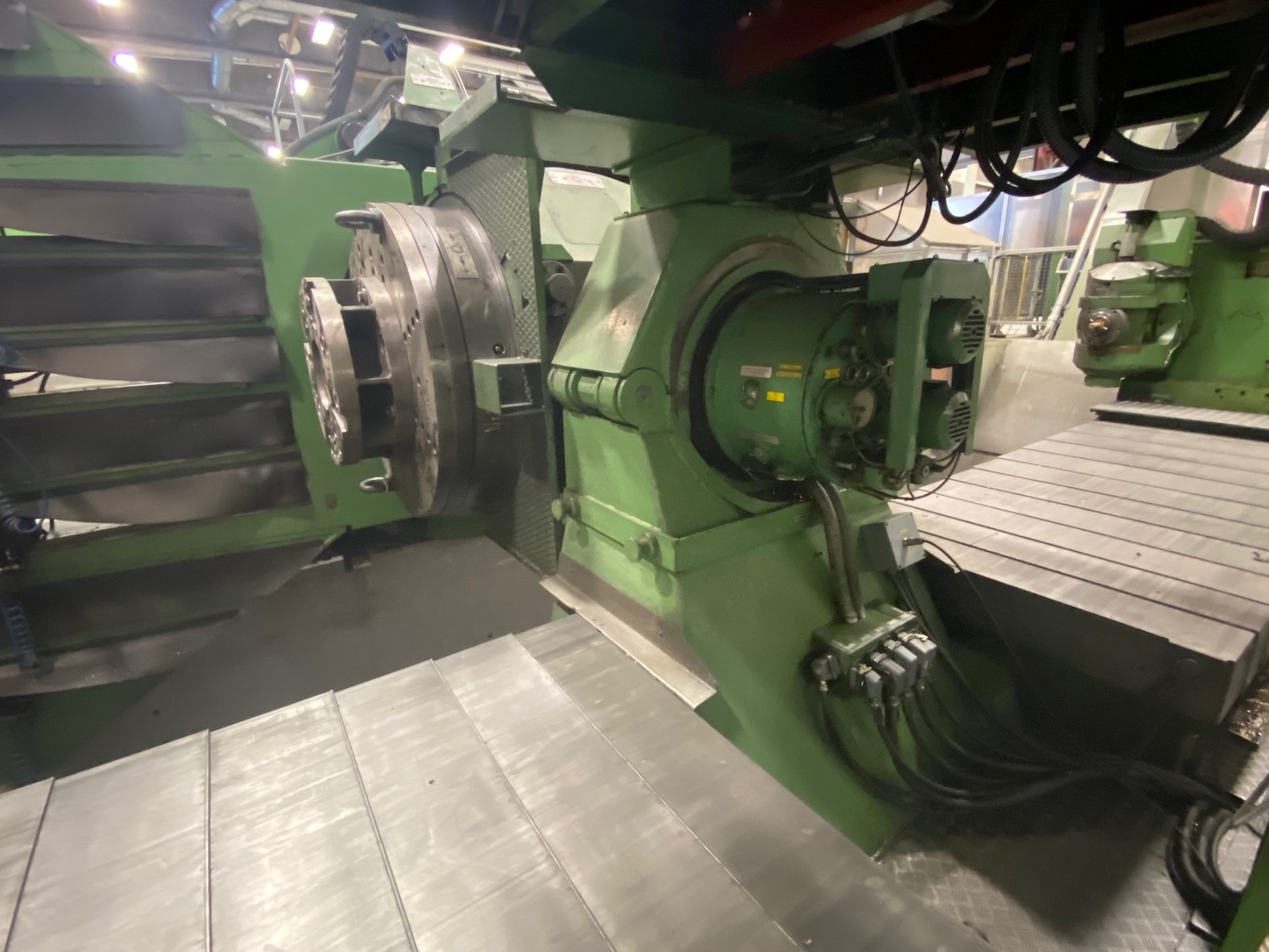

Face plate for Master Spindel.

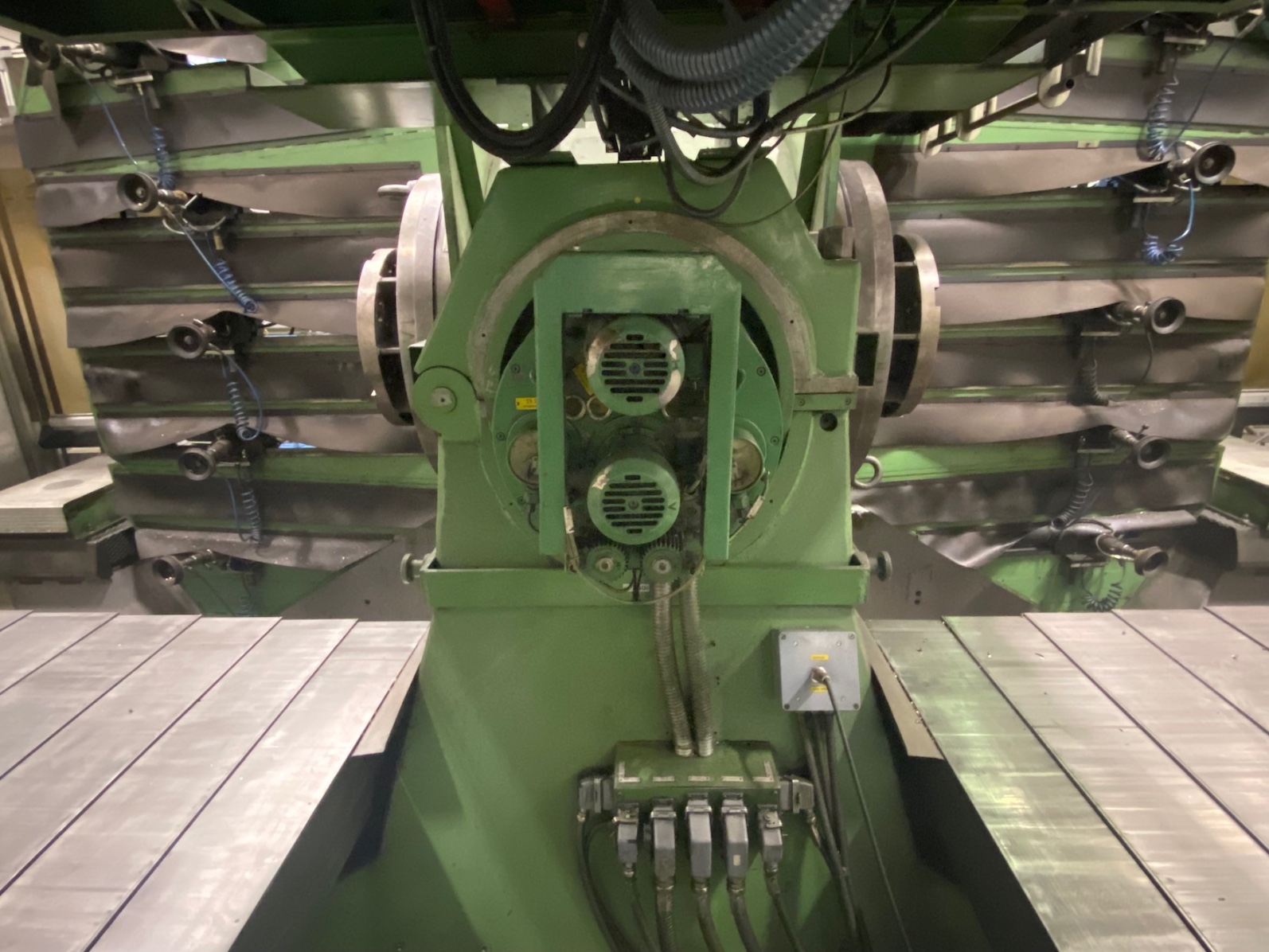

Head for faceplates

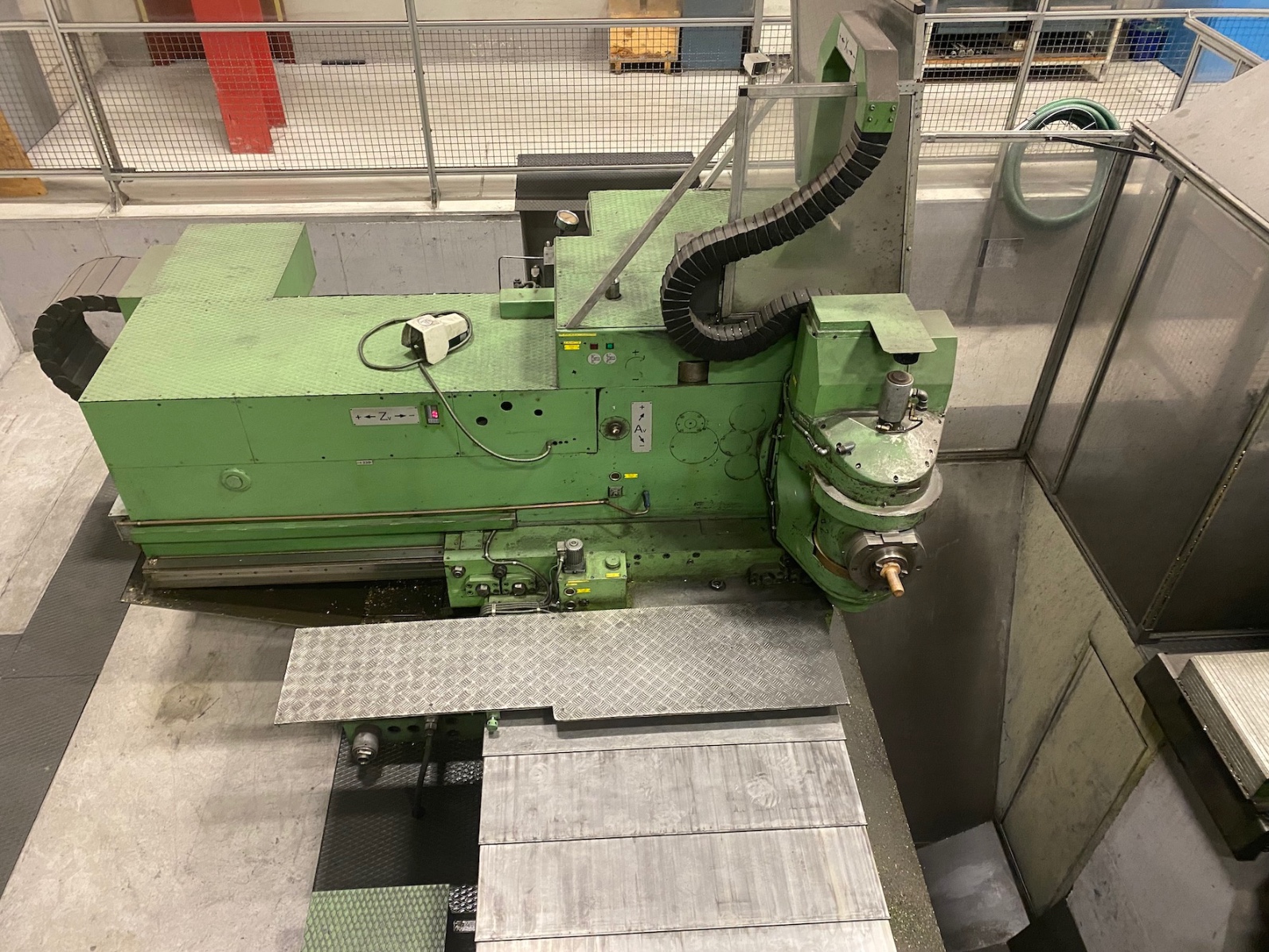

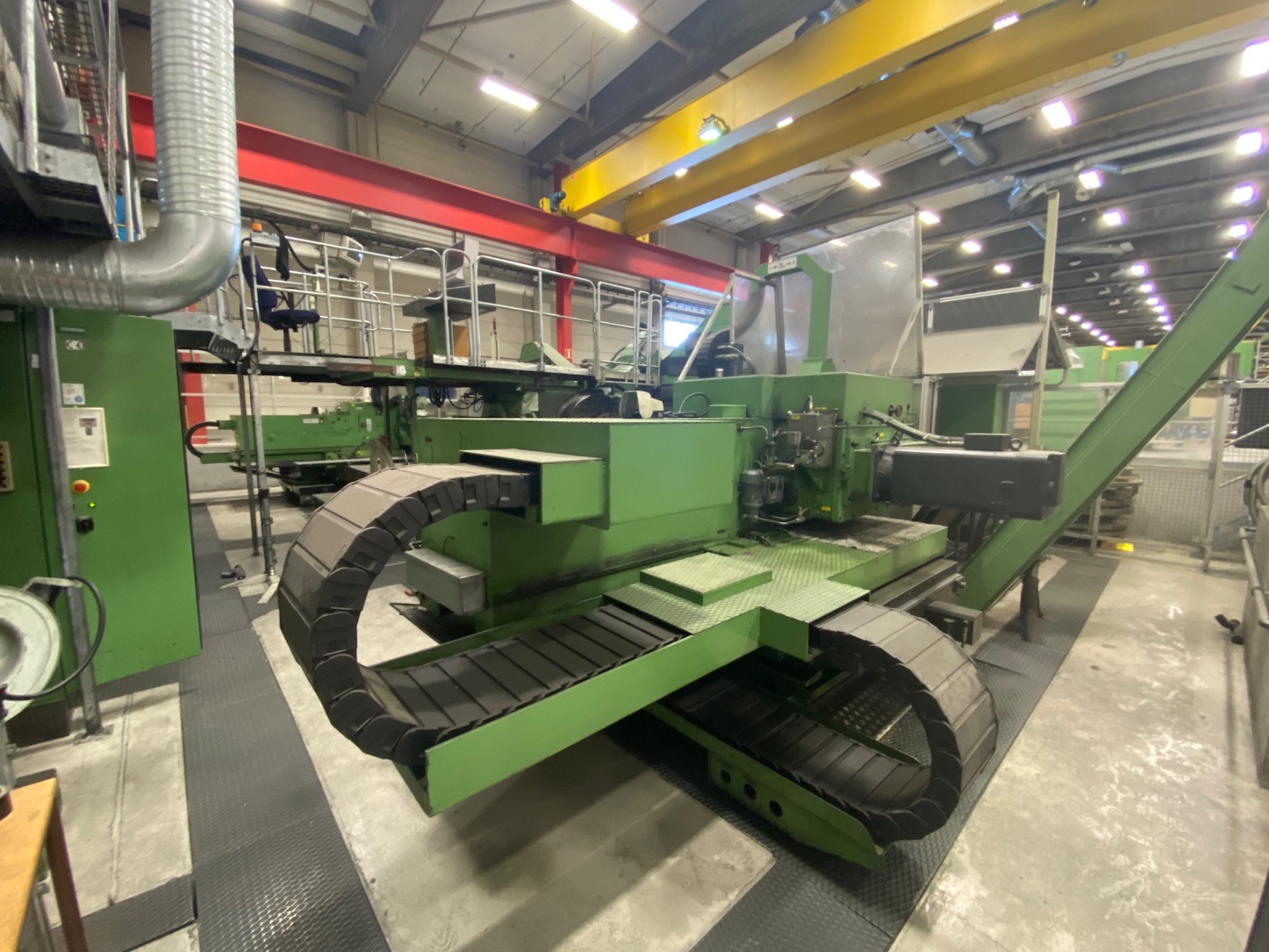

Slave Spindel.
Slave Spindel.
Slave Spindel.
Slave Spindel.

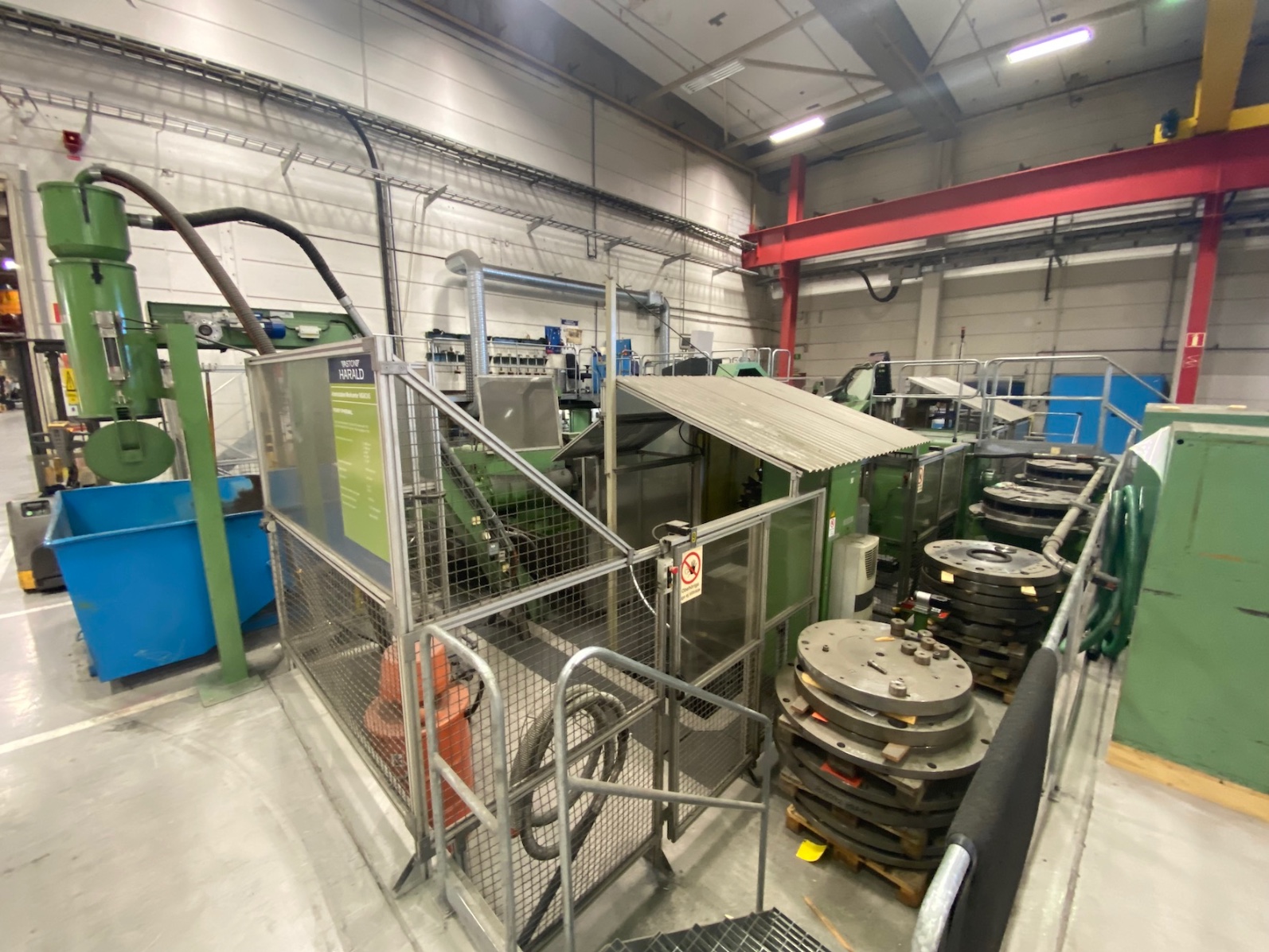

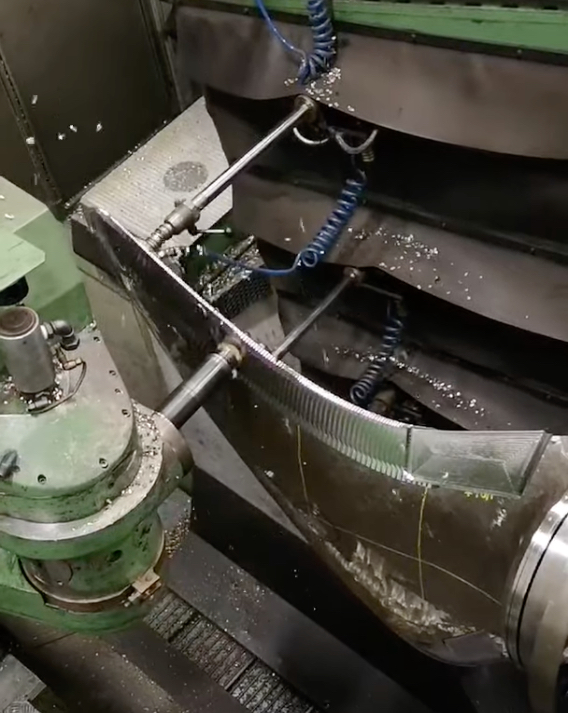

Face plate fixtures.

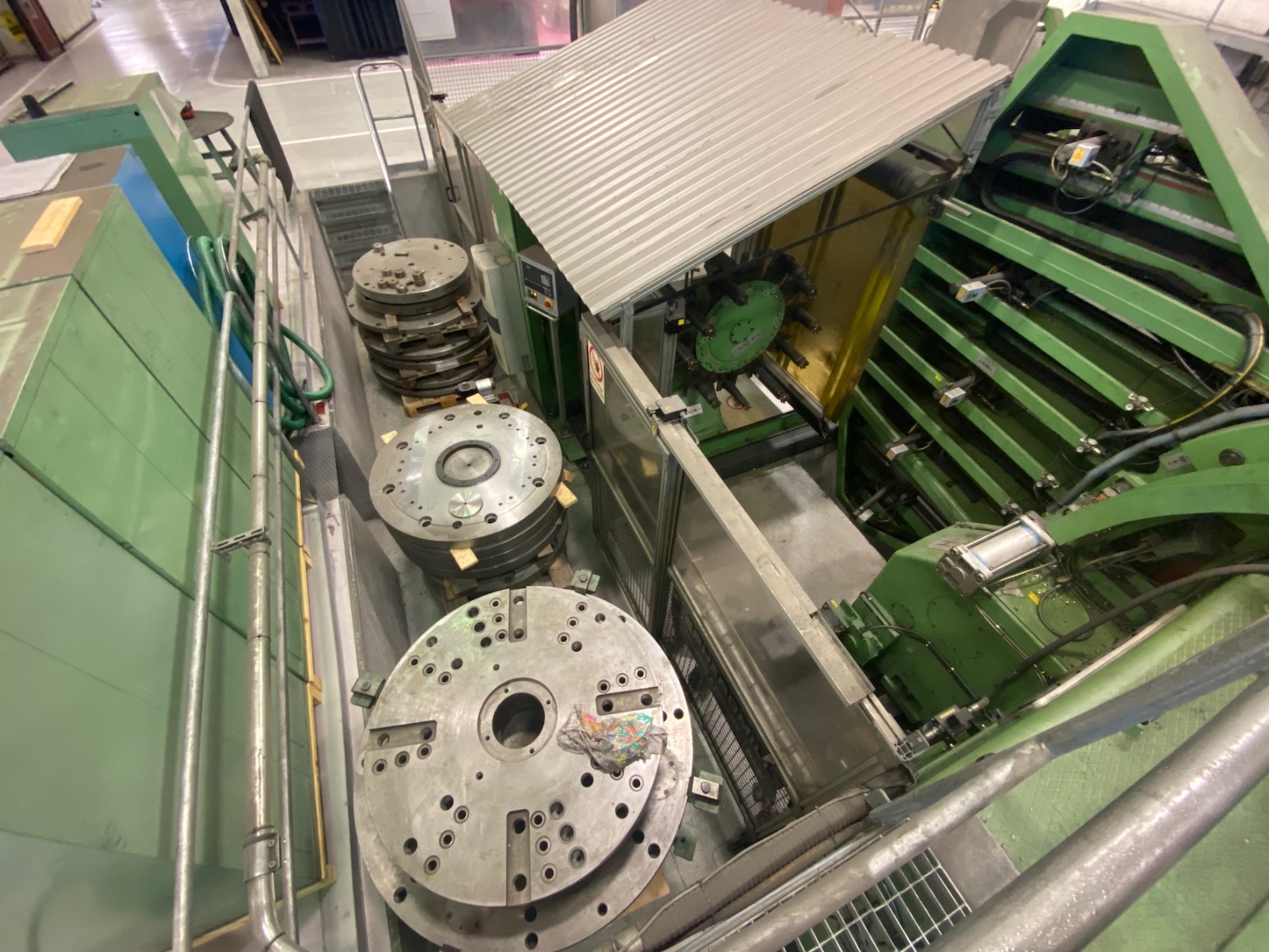

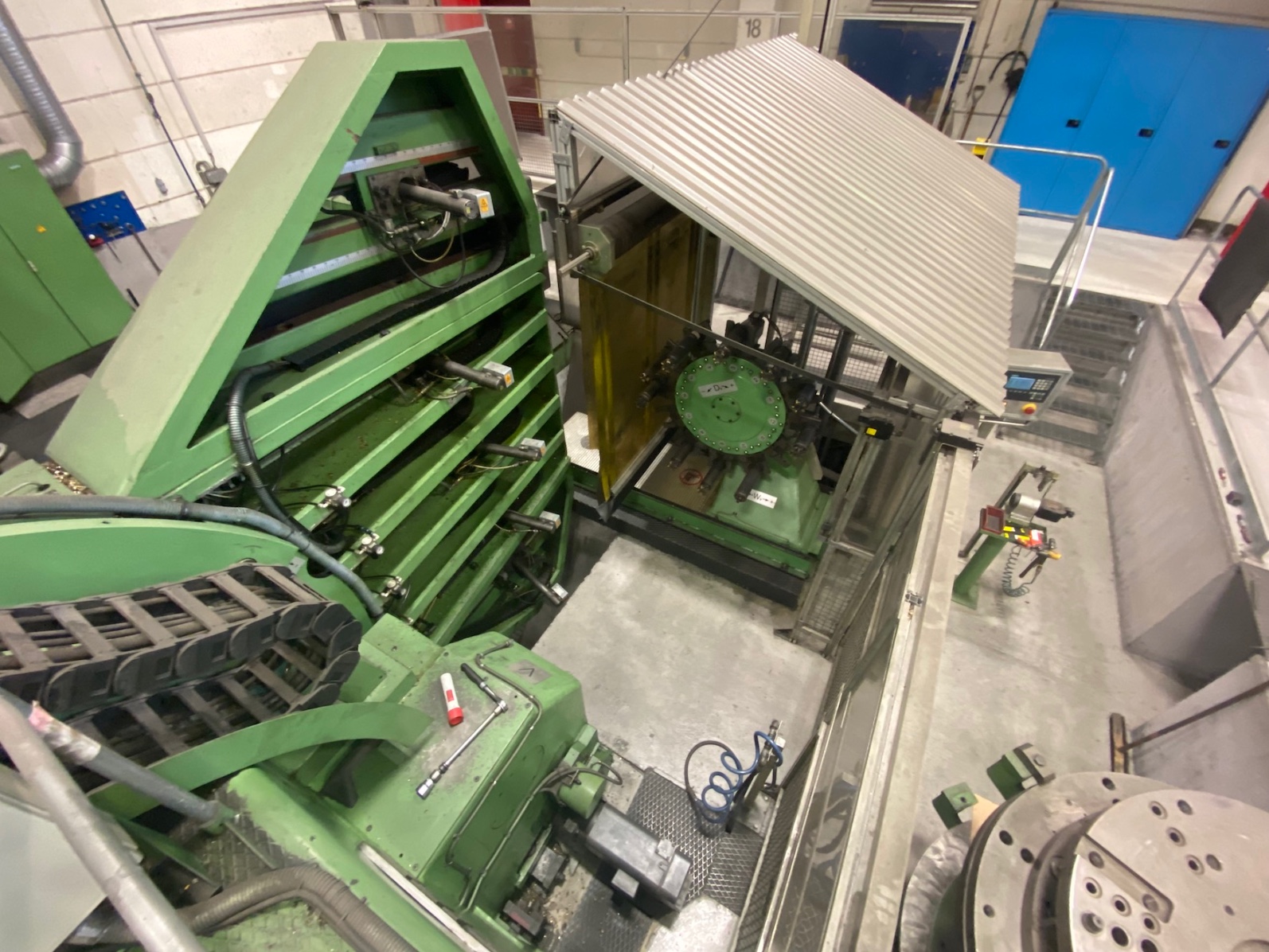

ATC 12 Slave side

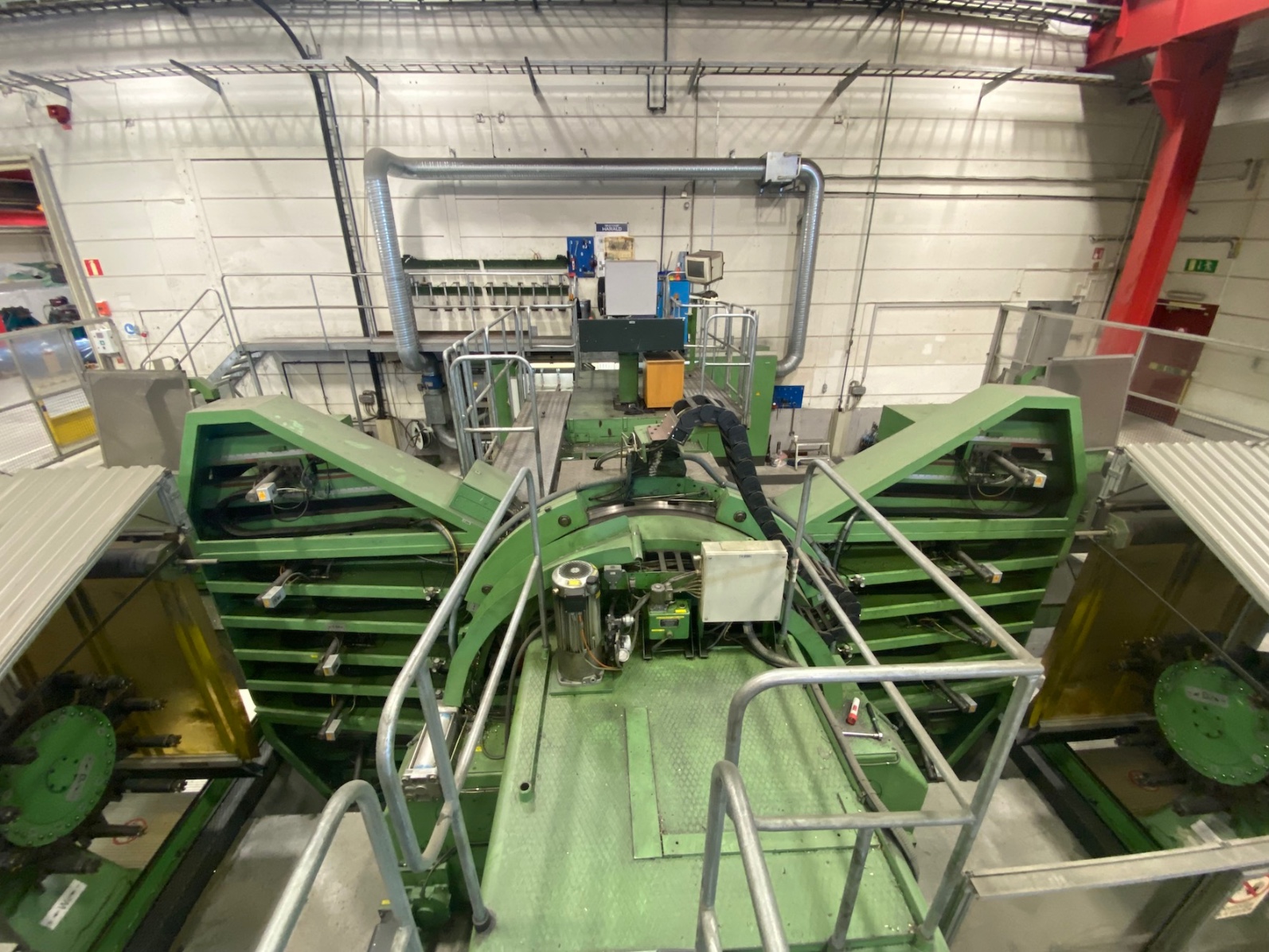

Positioning Suction Cups
ATC 12 Master side

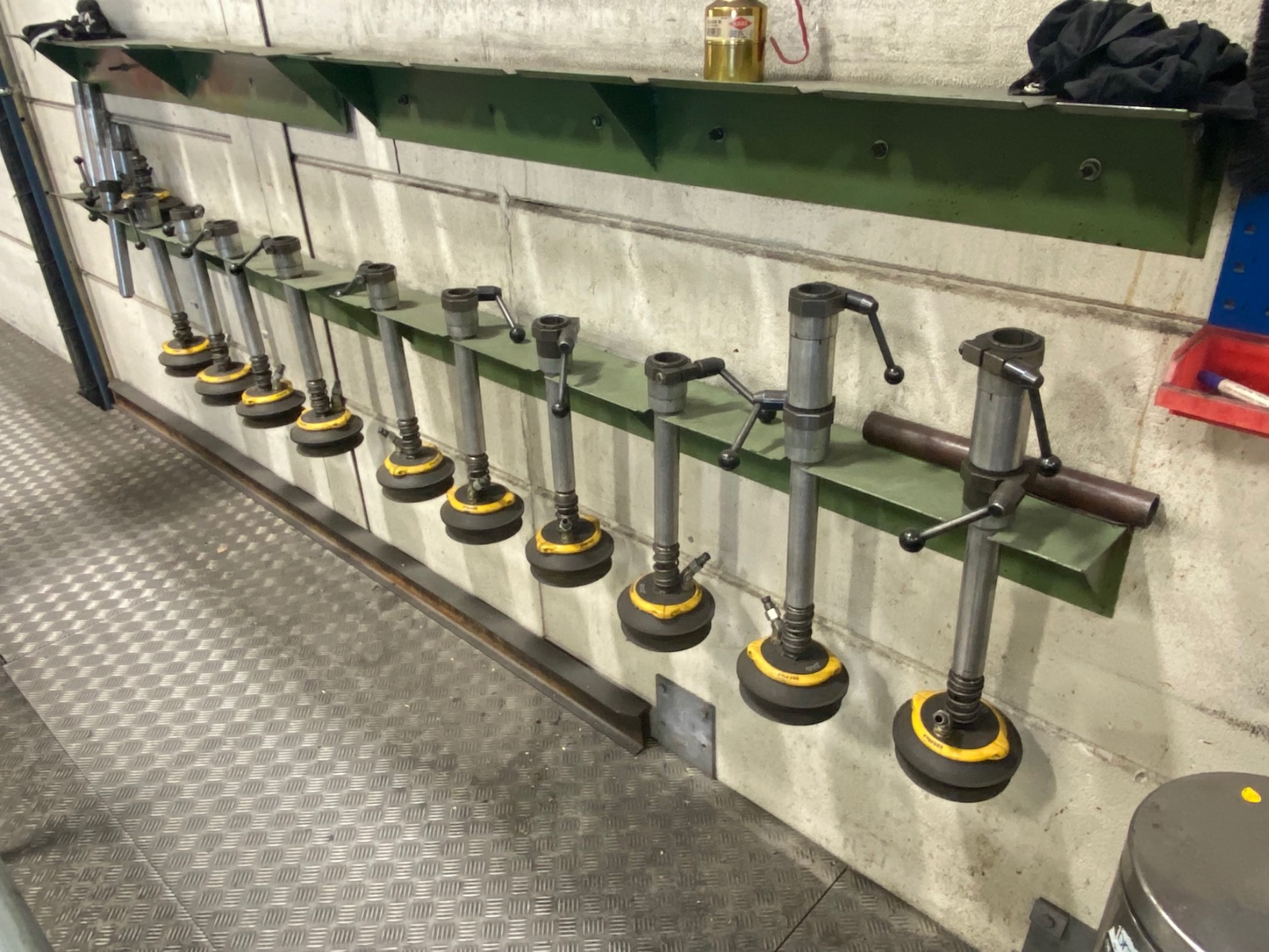

Suction Cups

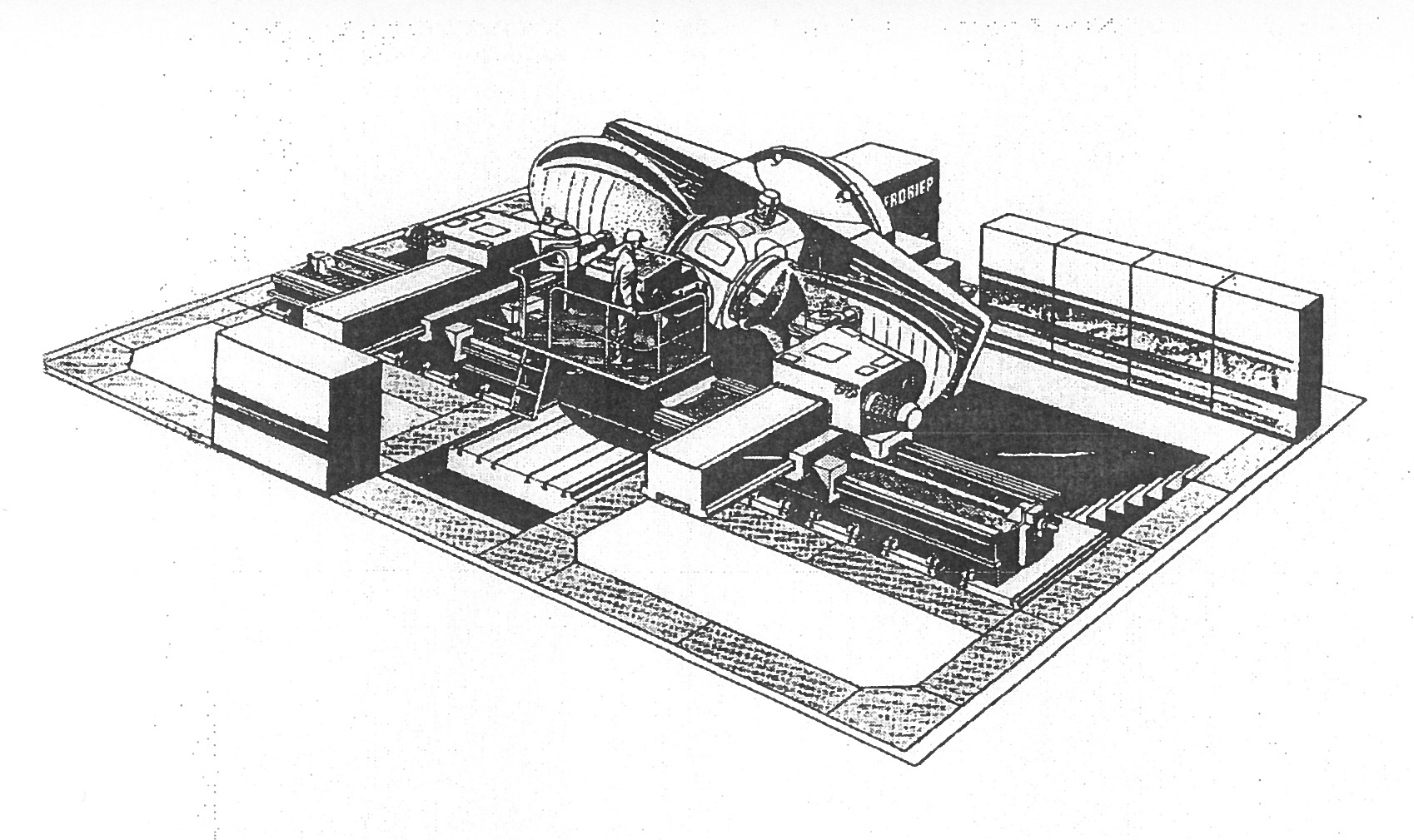

Drawing of machine before modernization 1998.
