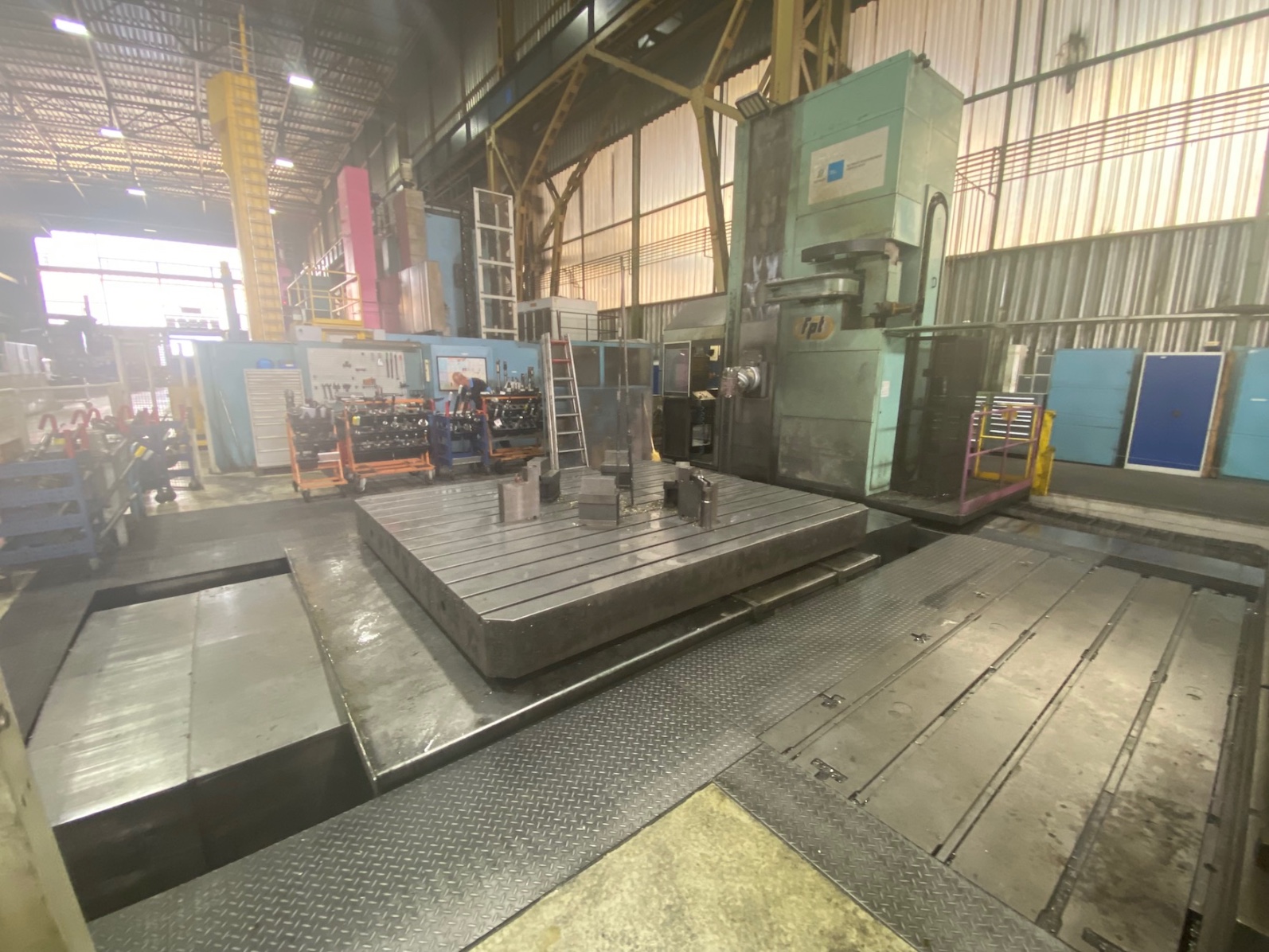

FPT AREA M90, Horizontal Borer. 1998

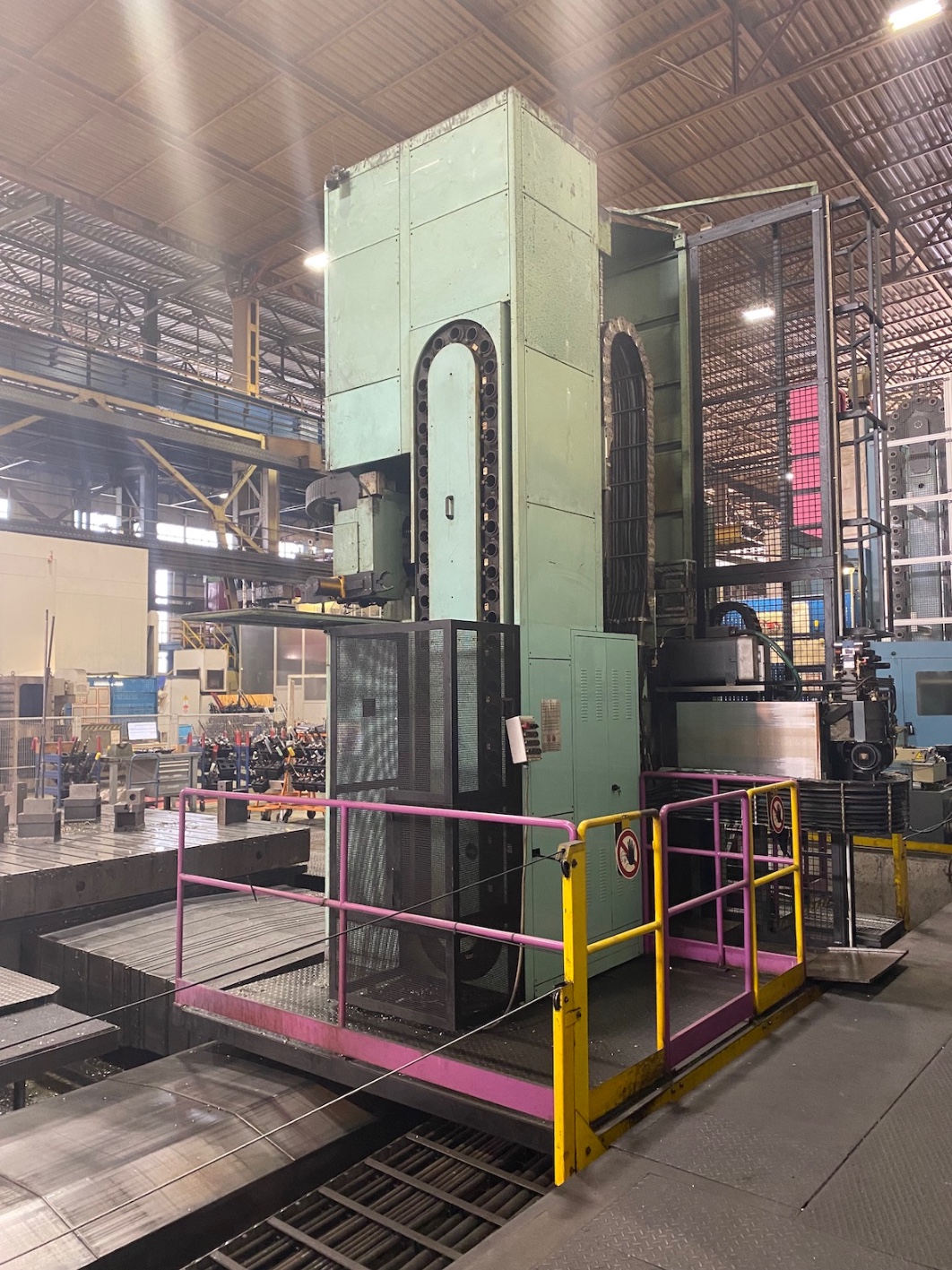

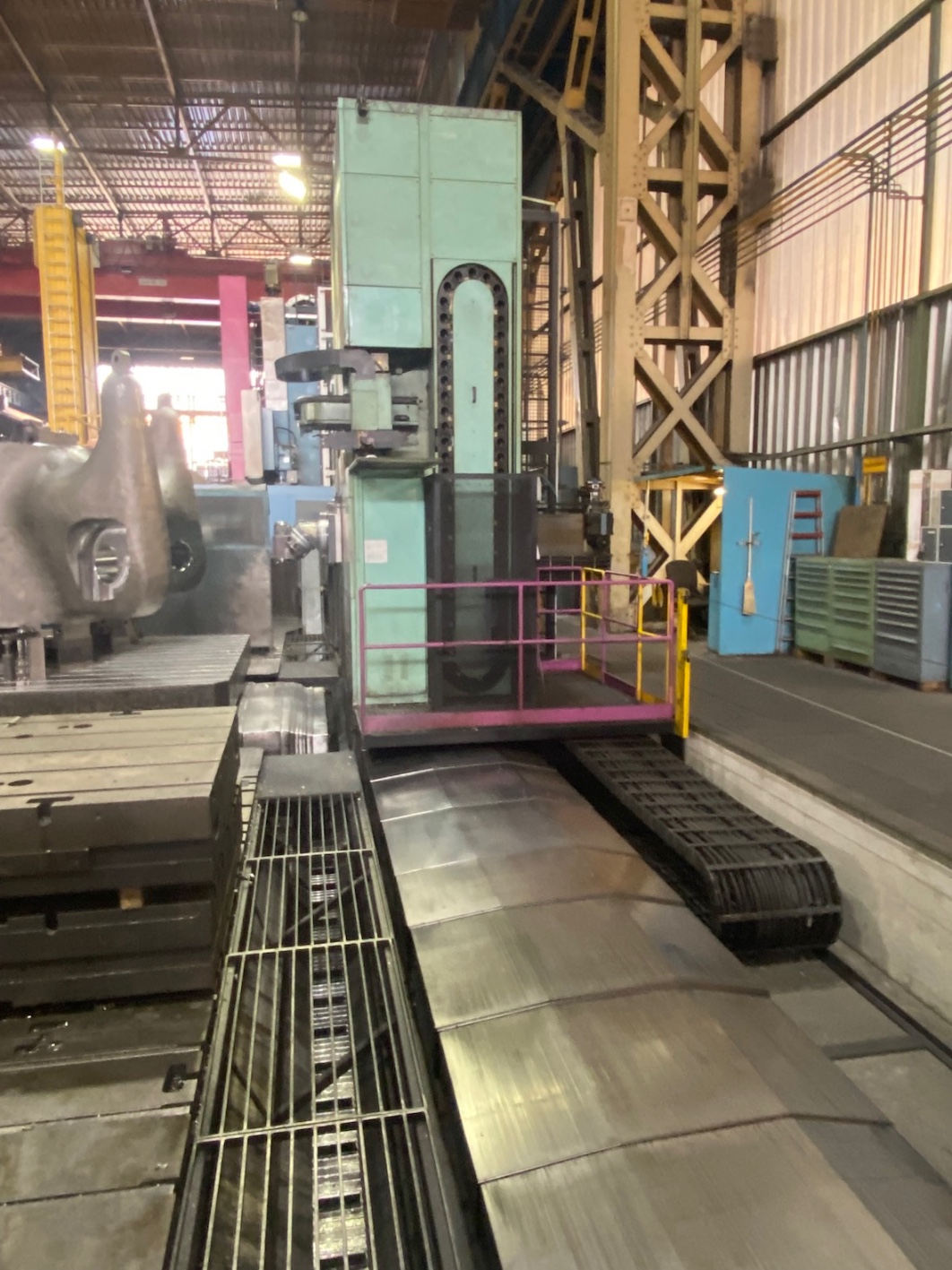

FPT AREA M 90 Horizontal Borer.

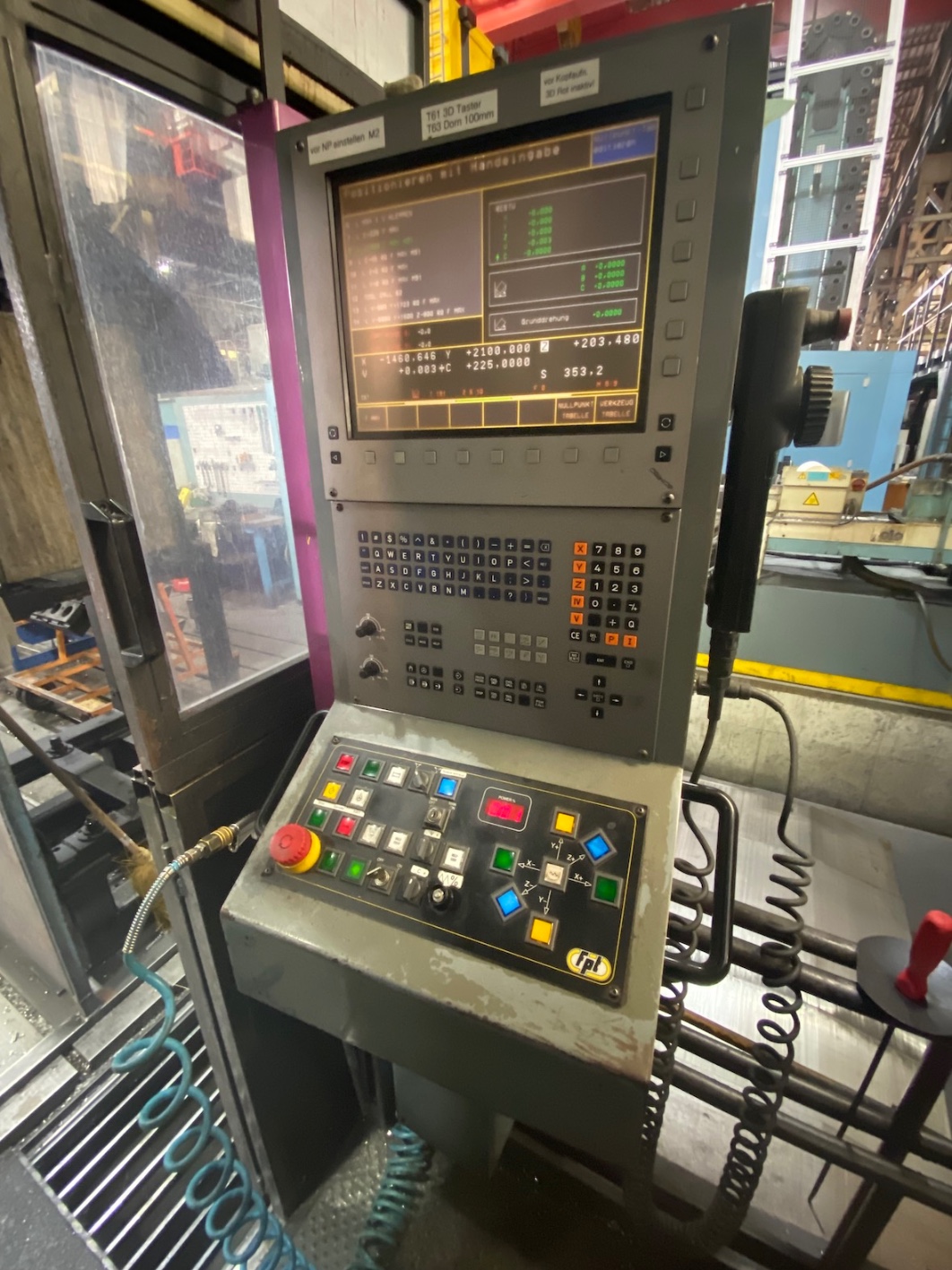

Heidenhein TNC 426 M, Built 1998,
With rotary table FPT TRT 60 Ton.

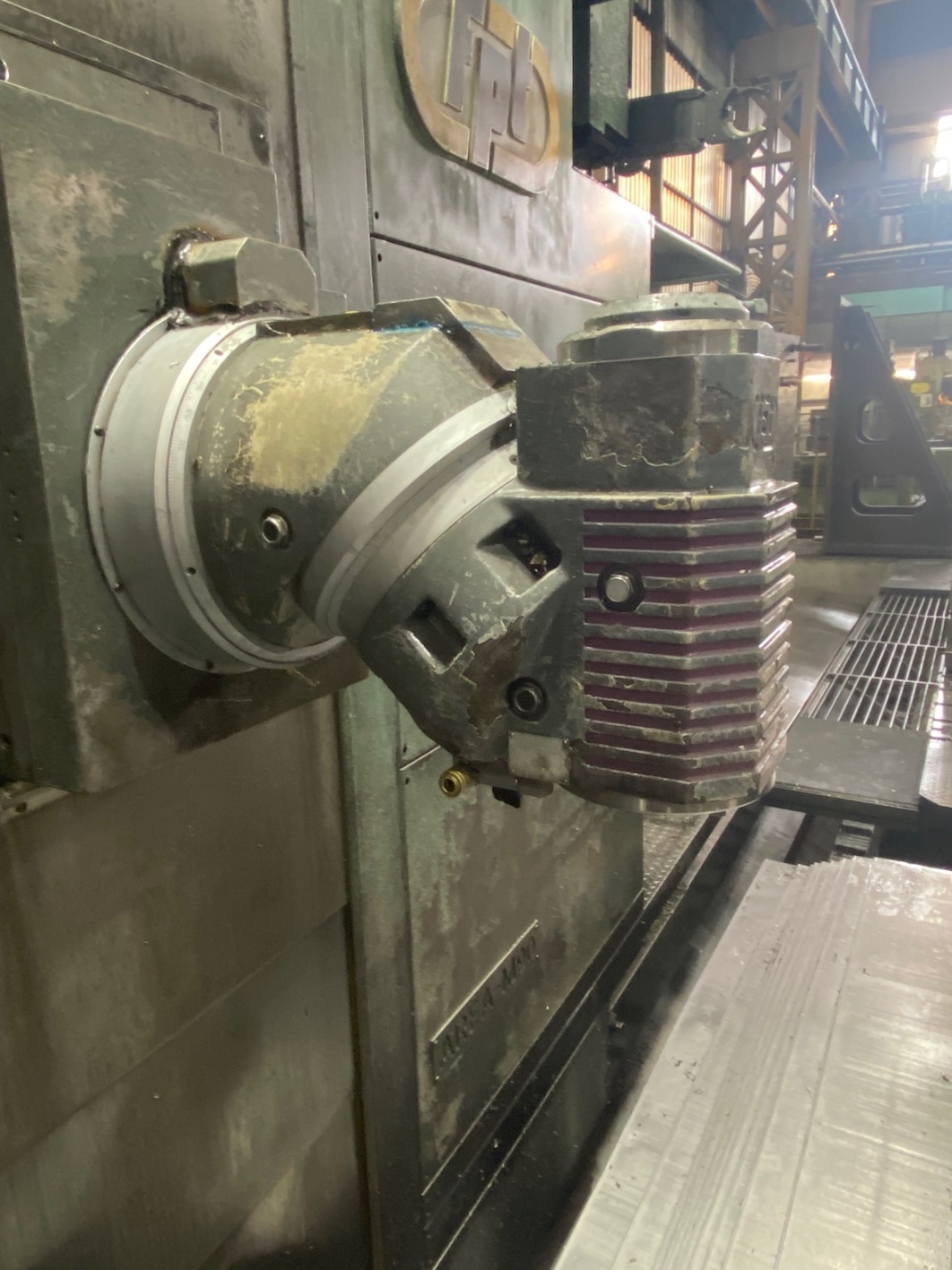

Two axis Head.

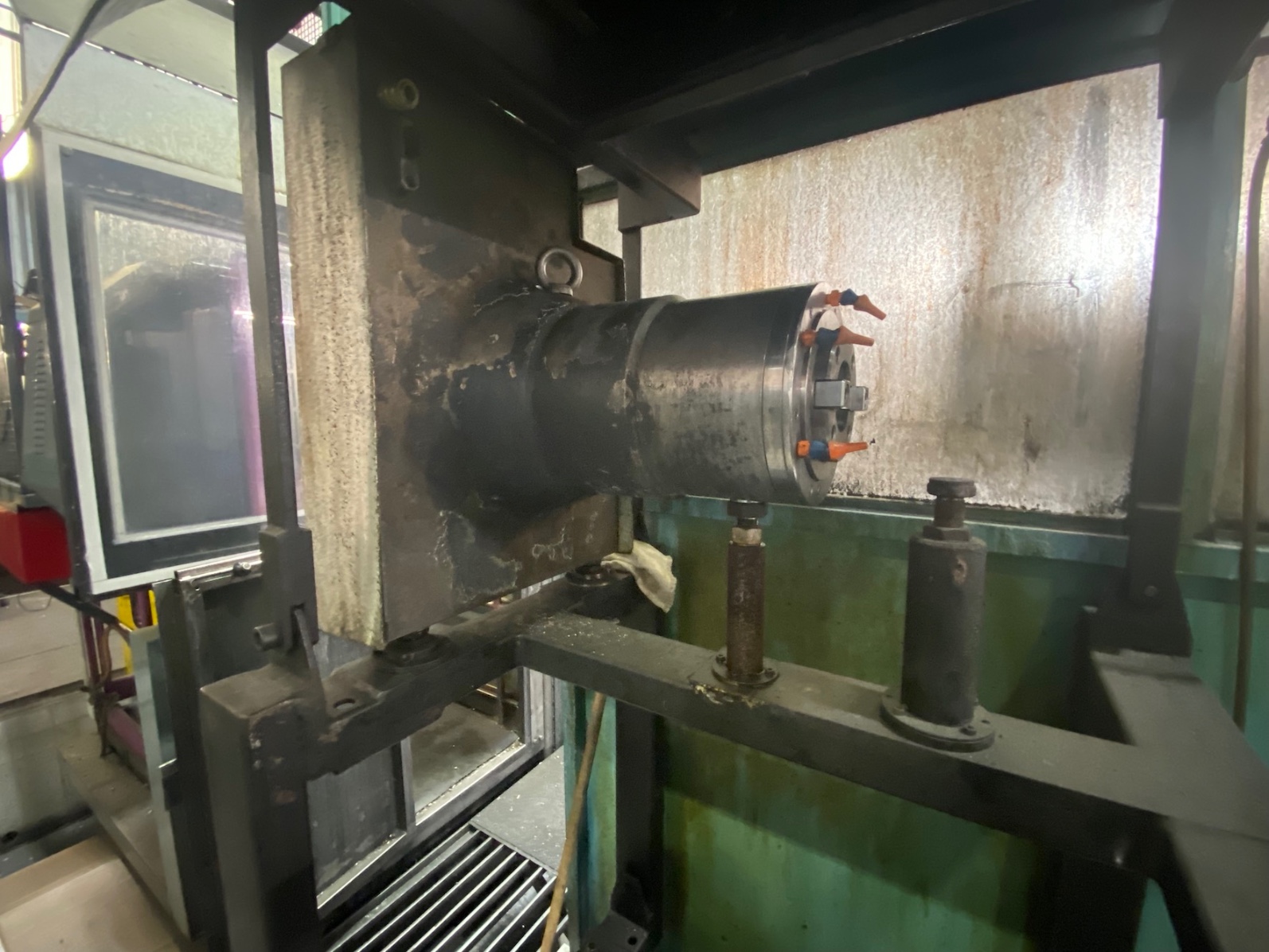

Spindle extension.
4 Floorplates 3.000 x 1.500 mm
X, Column travel 9.000 mm
Y, Headstock vertical travel 3.500 mm

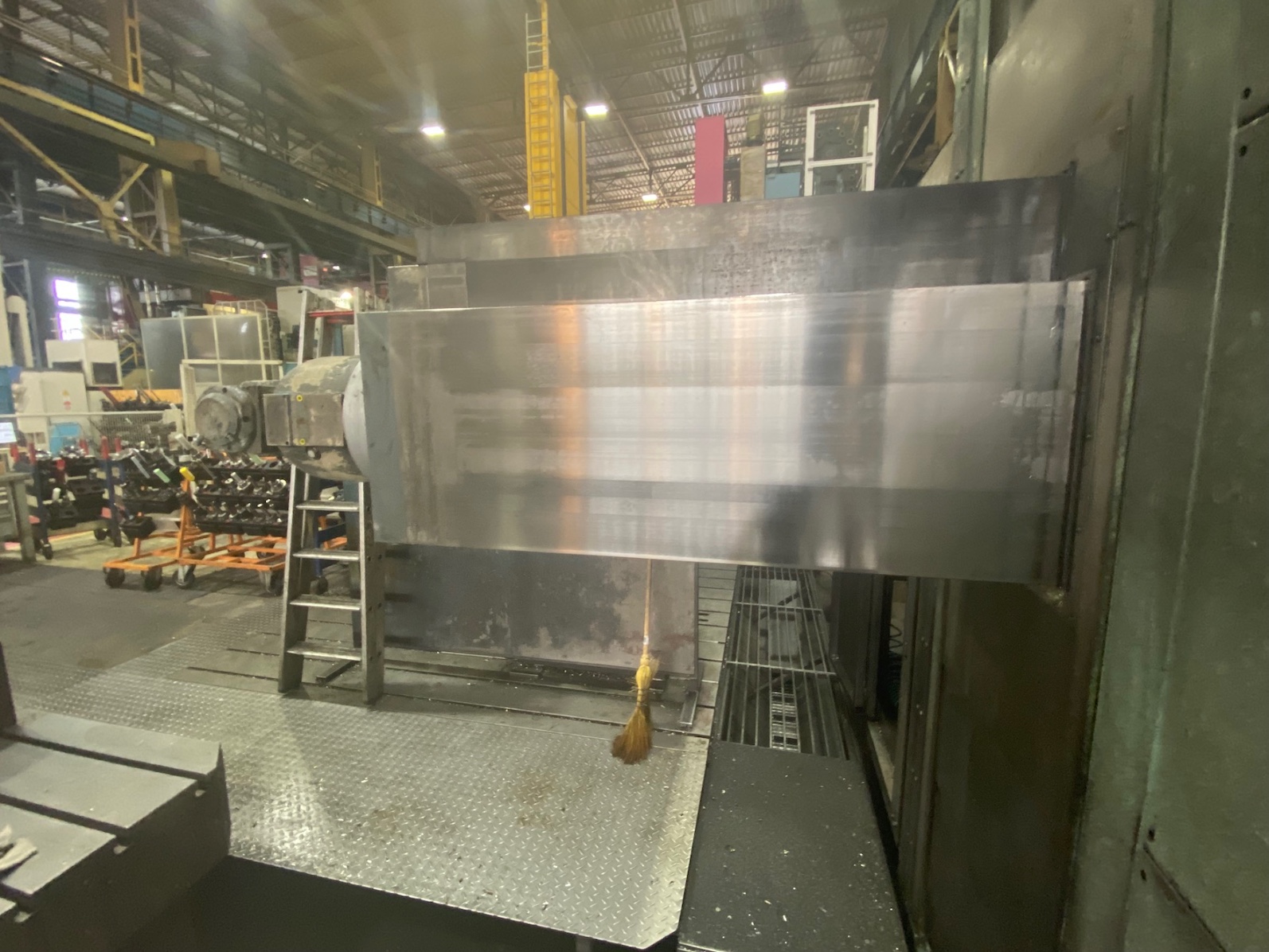

Z, Ram stroke 1.250 mm
Spindle taper ISO 50
Spindle speed 3.000 rpm
Spindle motor 37 kW
Spindle Torque 1.670 Nm
Automatic tool changer 40 Tools

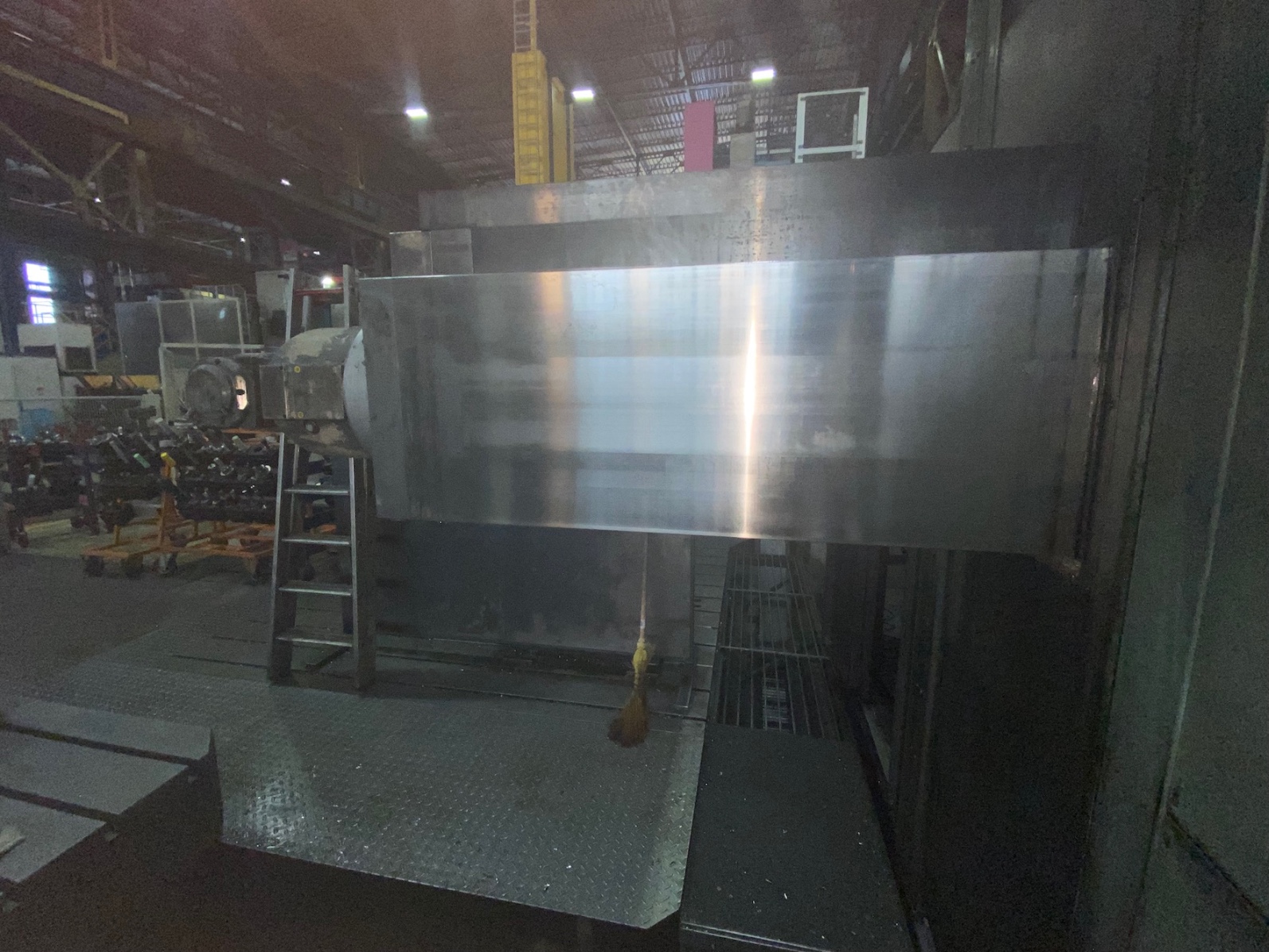

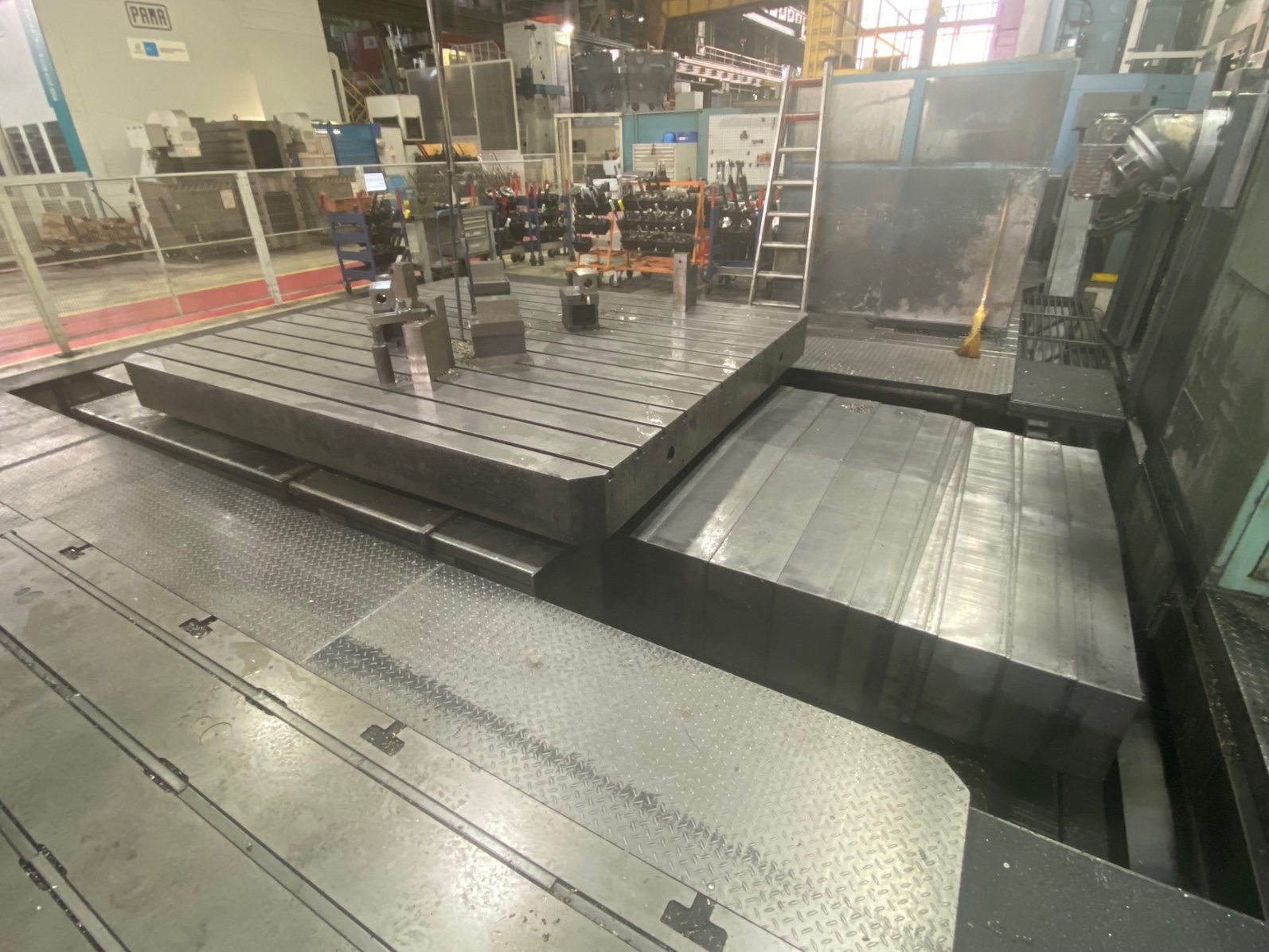

FPT TRT Rotary Table 3.000 x 3.500 mm
Table travel 3.000 mm
Table load 60 Ton
