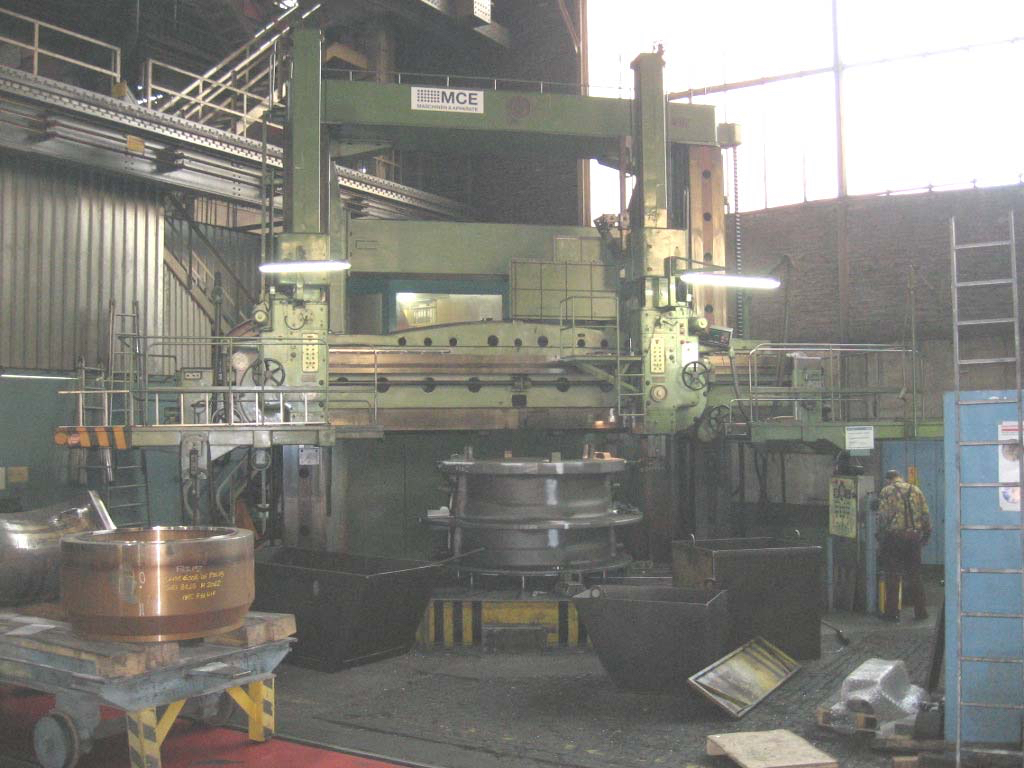

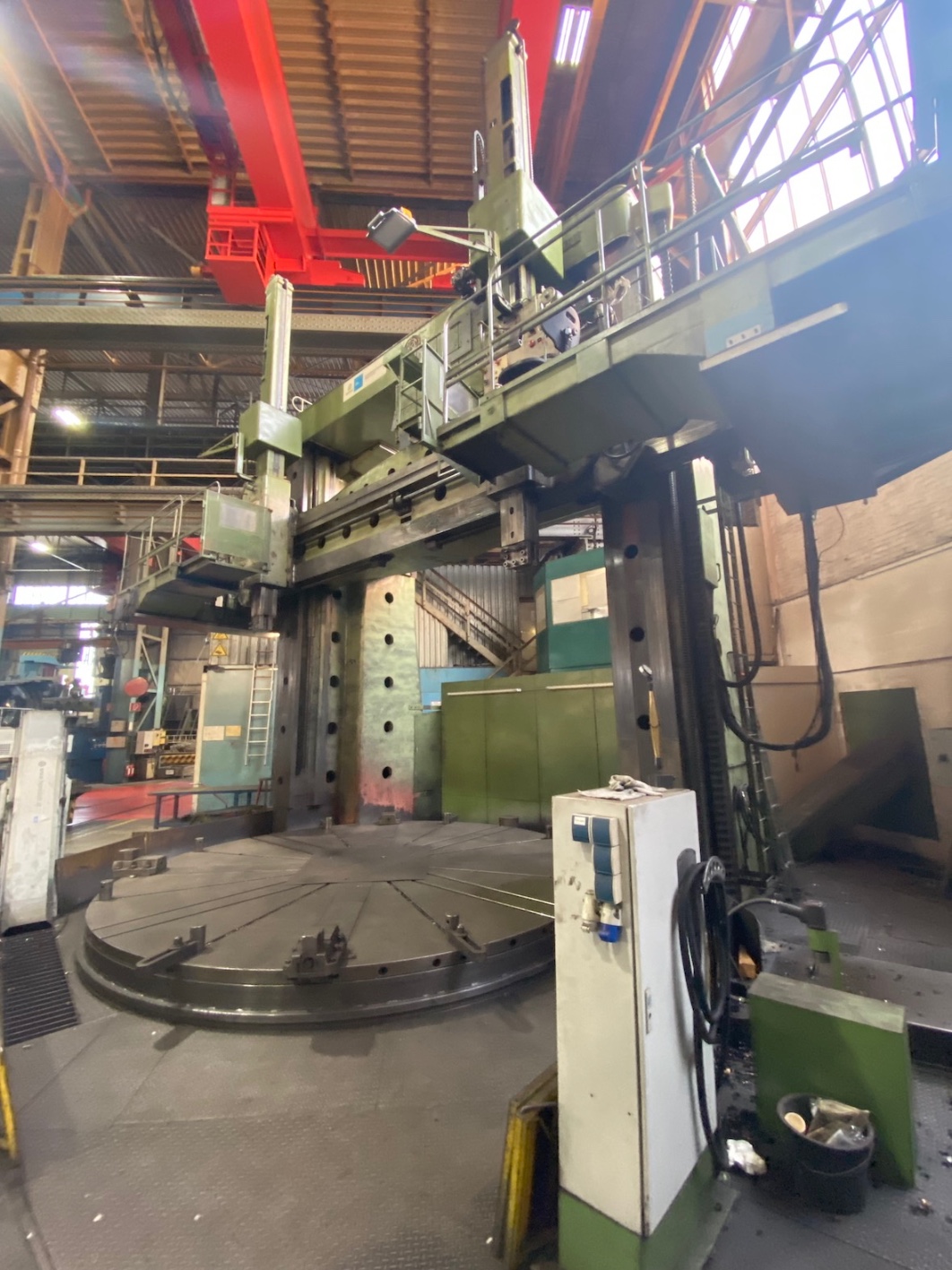

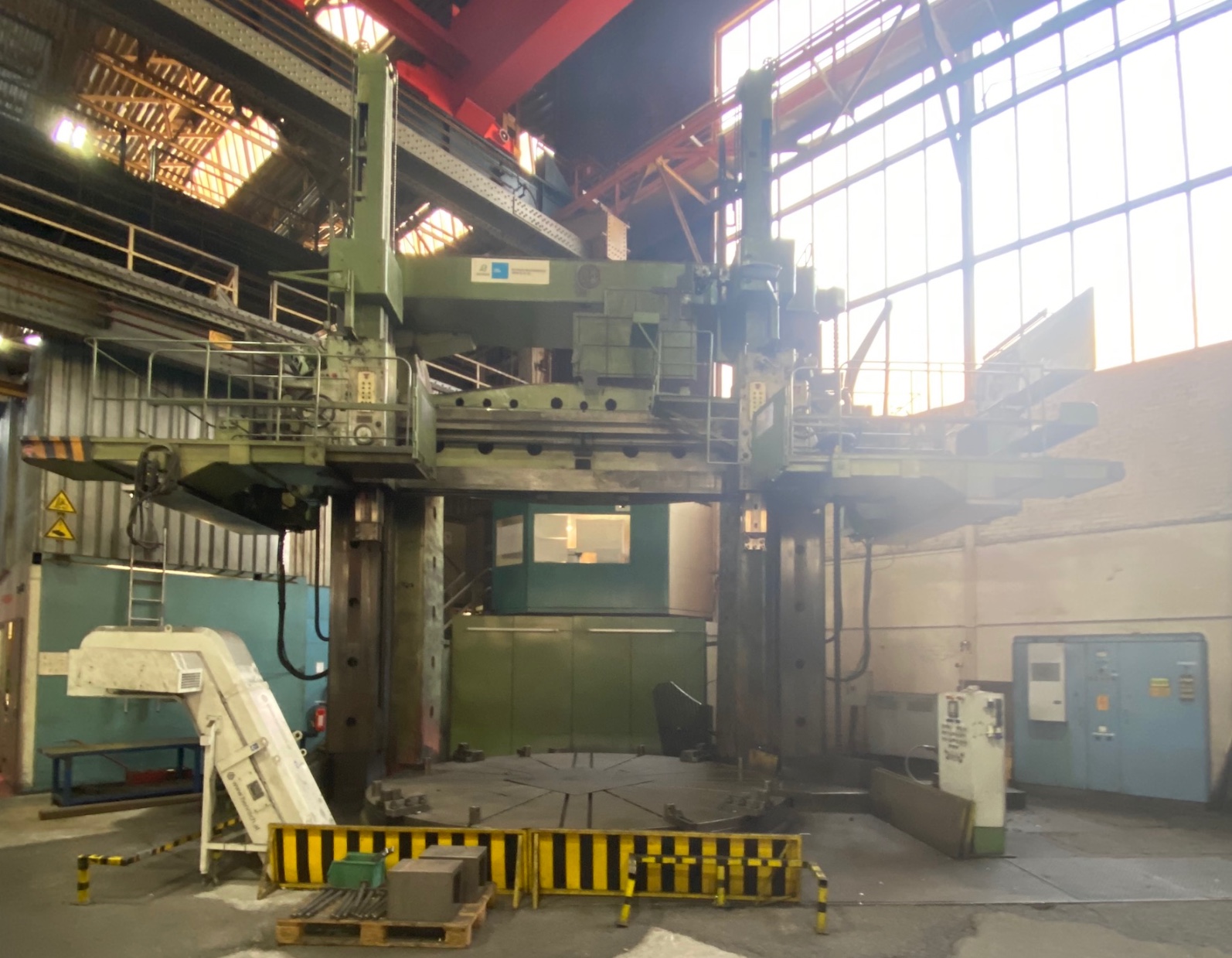

CKD BLANSKO Vertical Boring Mill. Built 1972

Table diameter 4.770 mm, 80 ton.
Turning diameter 5.300 mm.
Turning height 4.170 mm.
Two tilting vertical ram.
One side head.

Working Capacity

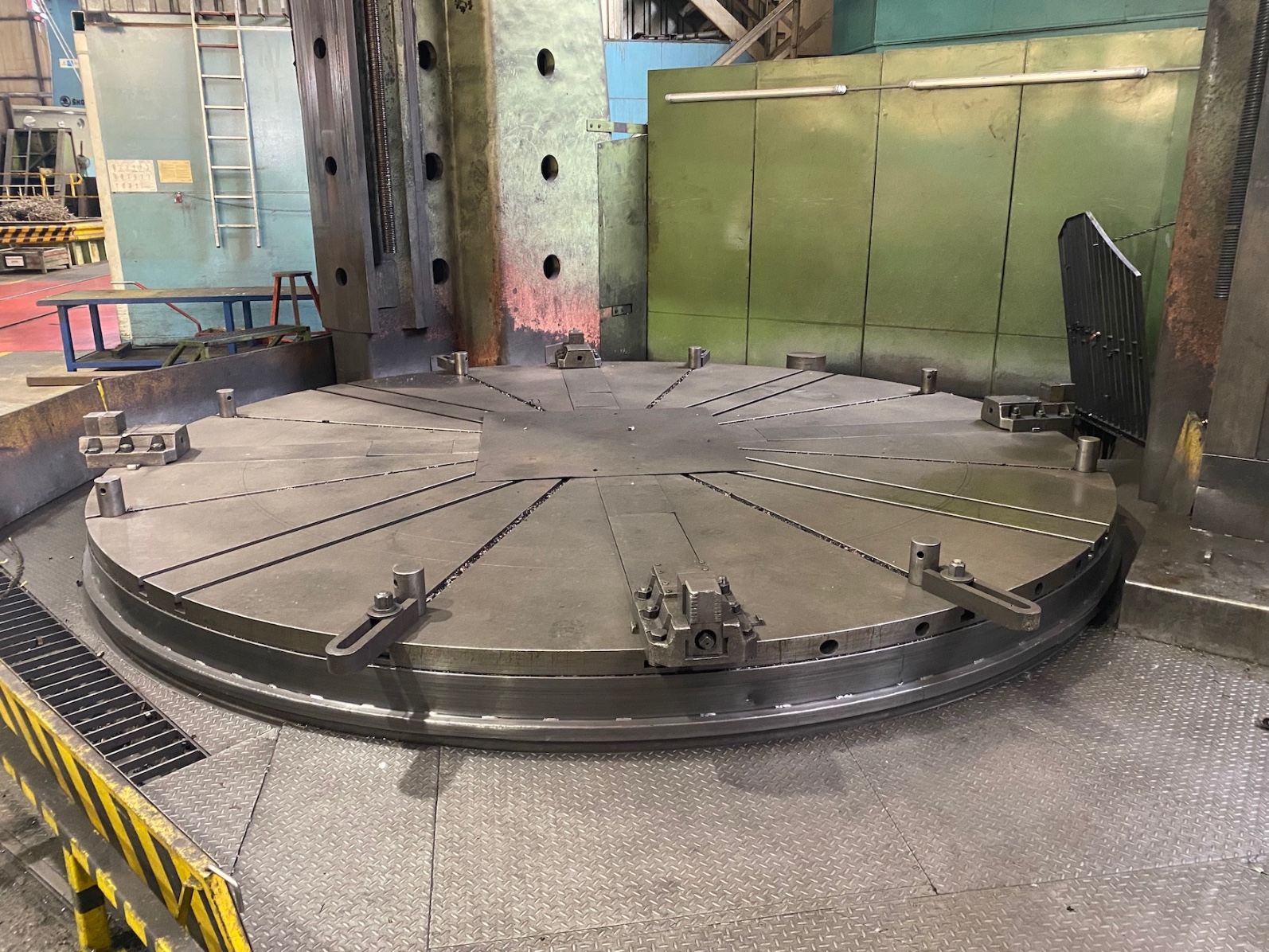

Table Diameter 4.770 mm
Table Weight Capacity 80 Ton
Table Motor, Variable Speed Drive 100 kW
Table Speeds (Inf. Variable) 0.33 - 32.8 RPM
Max height under tool 4.170 mm
Ram Vertical Travel 2.540 mm

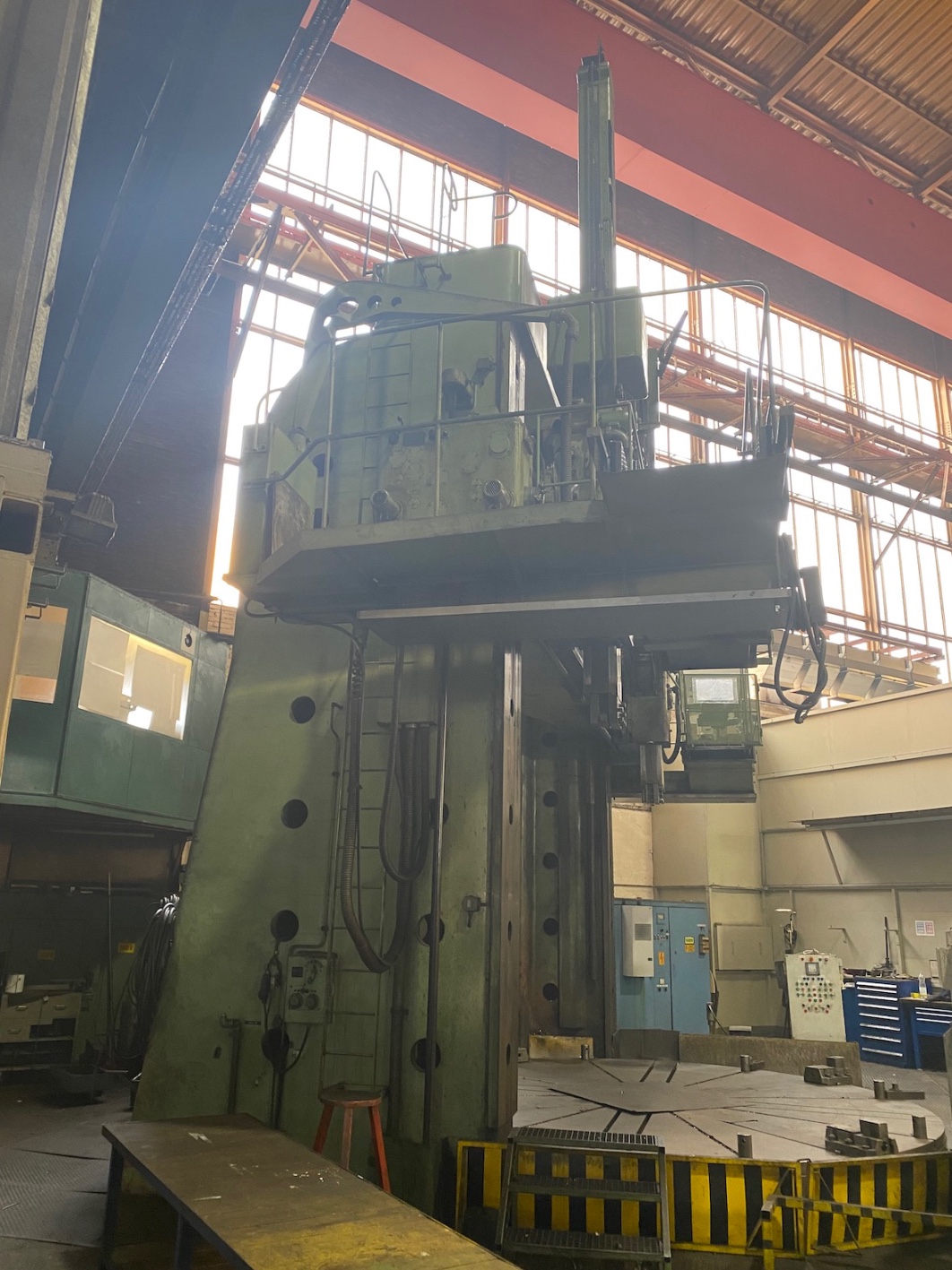

Vertical Ram 250 x 250 mm, Tilting +/- 30 Degrees
Feeds (15) 0.005 - 11 mm/rev

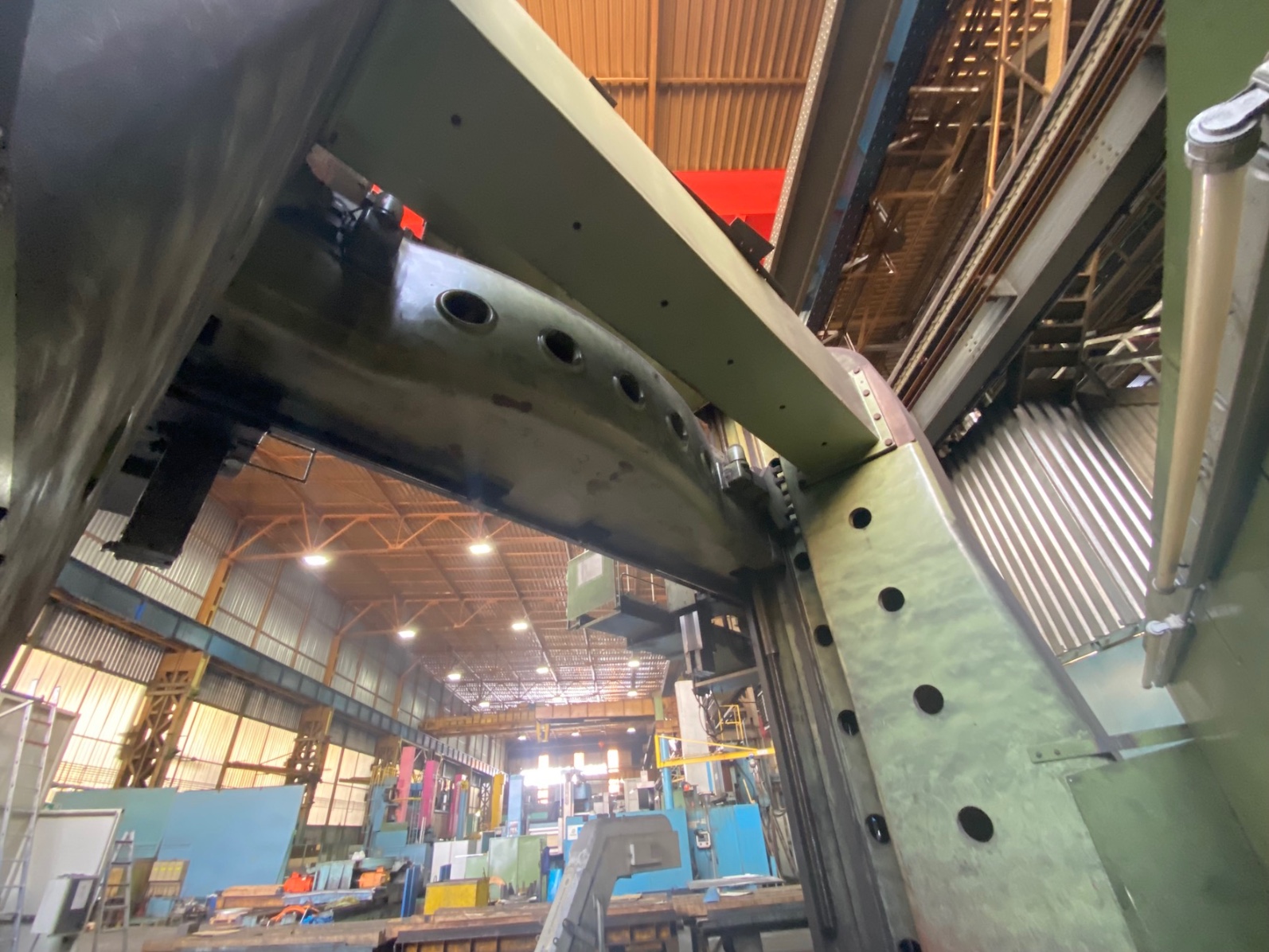

Cross rail vertical travel 3.600 mm

Approx dimensions machine

Front to back 11,5 m
Left to right 13 m
Height 11,3 m
Machine Weight 106 Ton

Equipped with

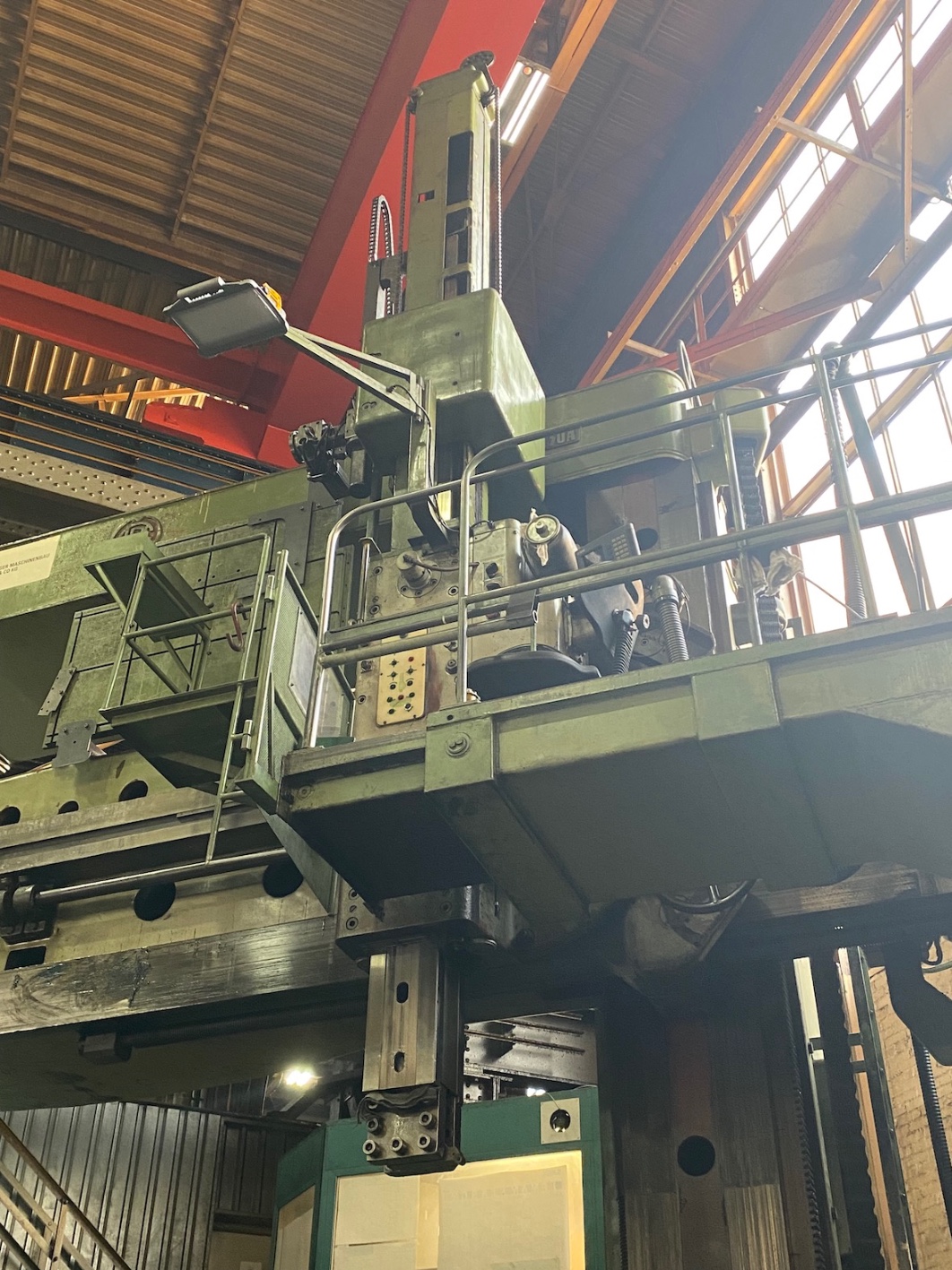

Two Tilting Ram Heads 250 x 250 mm

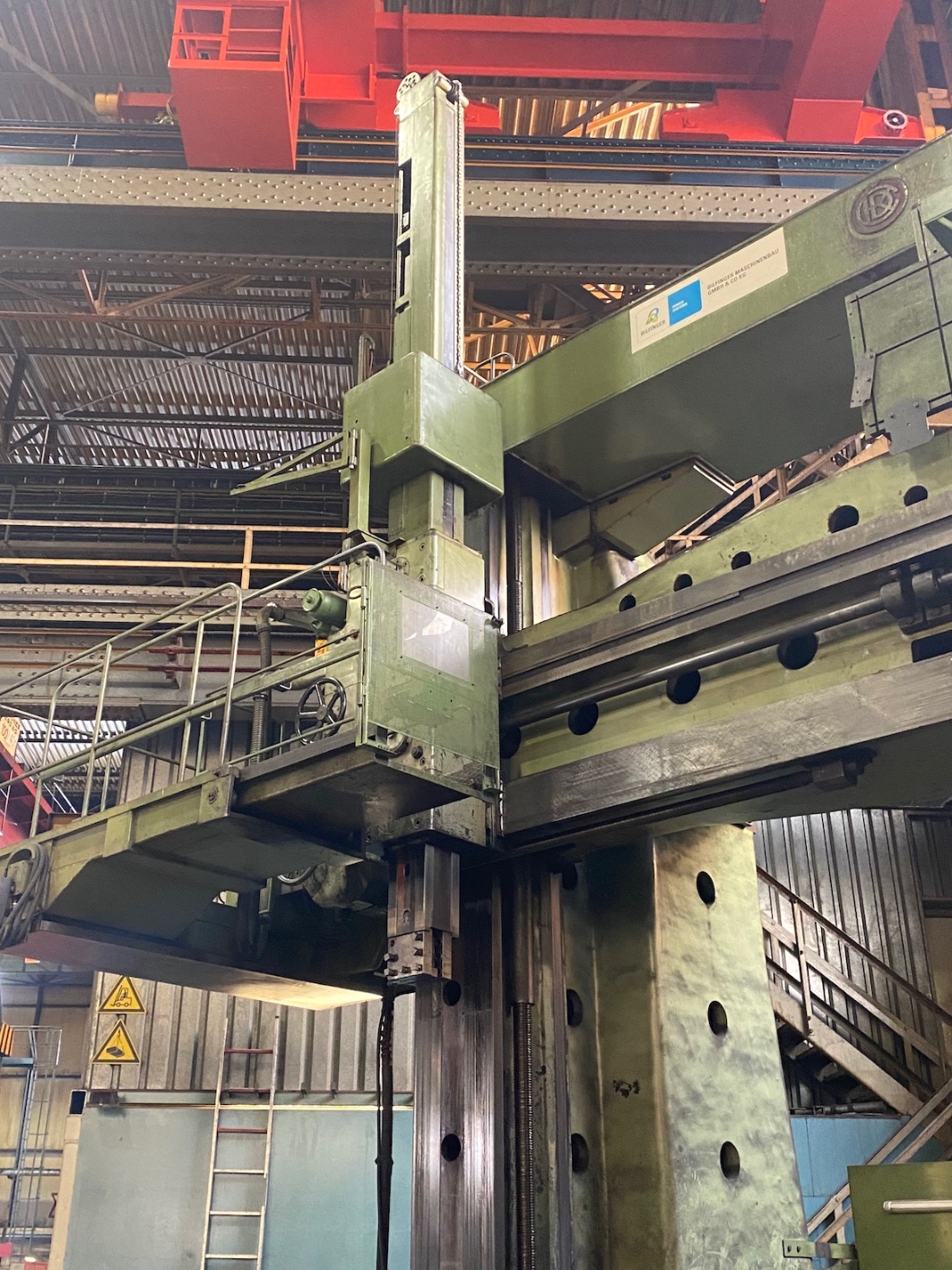

Side Head
Cooping attachement.
Grinding accessories.
Hydrostatic Table Bearings
Chip conveyor
